FRS26ZSGW4 06 – CONTROLS

FRS26ZSGW4 06 – CONTROLS

Written by

in

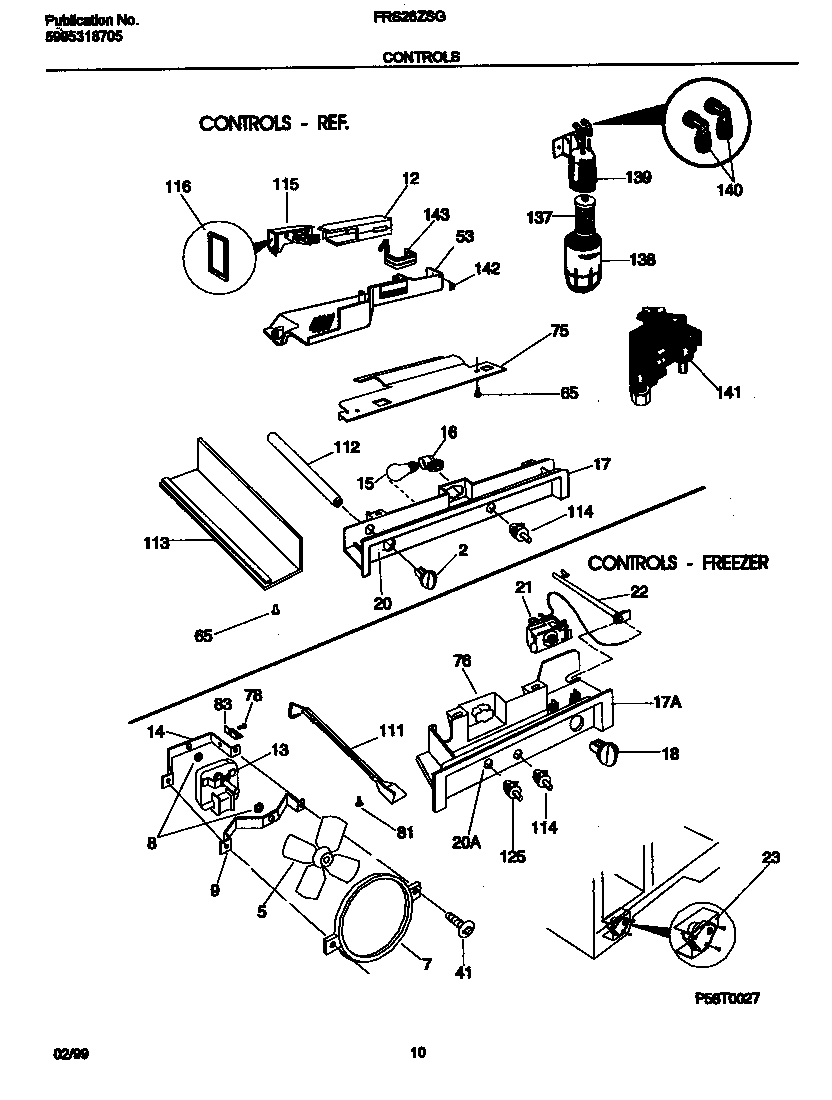

FRS26ZSGW4 06 – CONTROLS

Products

PositionProduct
*259085304455649 Frigidaire Refrigerator Screw
*25907COVER-DEFROST TIMER, TOP
*25909SHIELD-DEFROST TIMR,BTM
*25912218859701 Frigidaire Water Valve Single Solenoid
*25905215474201 Frigidaire Refrigerator Washer
*25913WIRING HARNESS,FILTER HEATER
*25906WCI 218731102
*25911218710300 Frigidaire Refrigerator Water Filter Wrench
*25910NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 5304410657
17CONTROL BOX, FRZR
18WCI 5303307882
20WCI 5303307884
20AWCI 5303307888
20BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809508
65WCI 5303001361
75WCI 218465101
76WCI 218225800
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011505
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141218832401 Frigidaire Water Inlet Valve
142WCI 218657701
143WCI 218696700
