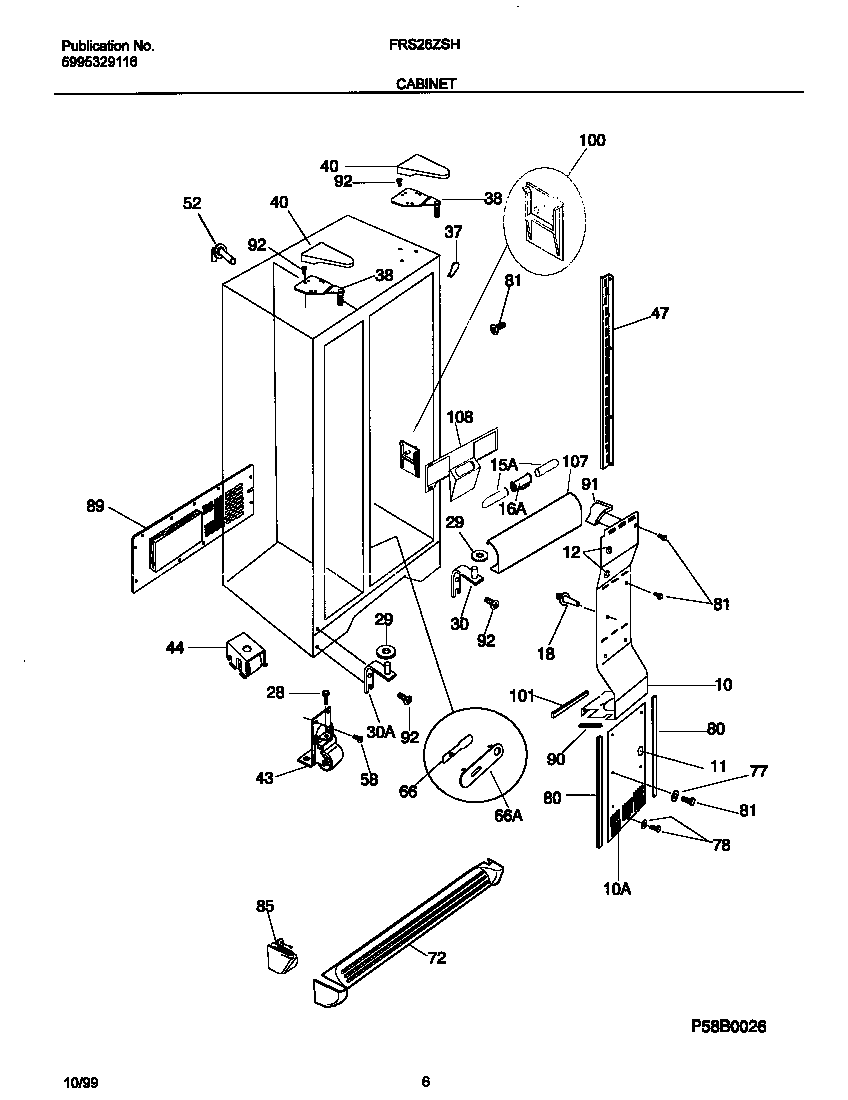

FRS26ZSHB2 04 – CABINET

FRS26ZSHB2 04 – CABINET

Written by

in

FRS26ZSHB2 04 – CABINET

Products

PositionProduct
*110995303321321 Frigidaire Refrigerator Black Touch-Up Paint
*11090WCI 218871201
*11098WCI 218902101
*11091WCI 218730800
*11094WCI 5303289036
*11095WCI 5303289037
*11089WCI 215314301
*11097WCI 215598900
*11092SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*11096WCI 5303322647
*11088SUPPORT-AIR DUCT CVR,1.83“ LONG
*11087NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*11093WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15WCI 218708700
16WCI 5303299157
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30AWCI 215009100
30WCI 215008900
30BWCI 218730700
37WCI 5303321083
38AWCI 218215218
38BWCI 218215220
40WCI 5303323268
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922706
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101BWCI 218663103
101AWCI 215305702
107WCI 218835901
108WCI 218834202
