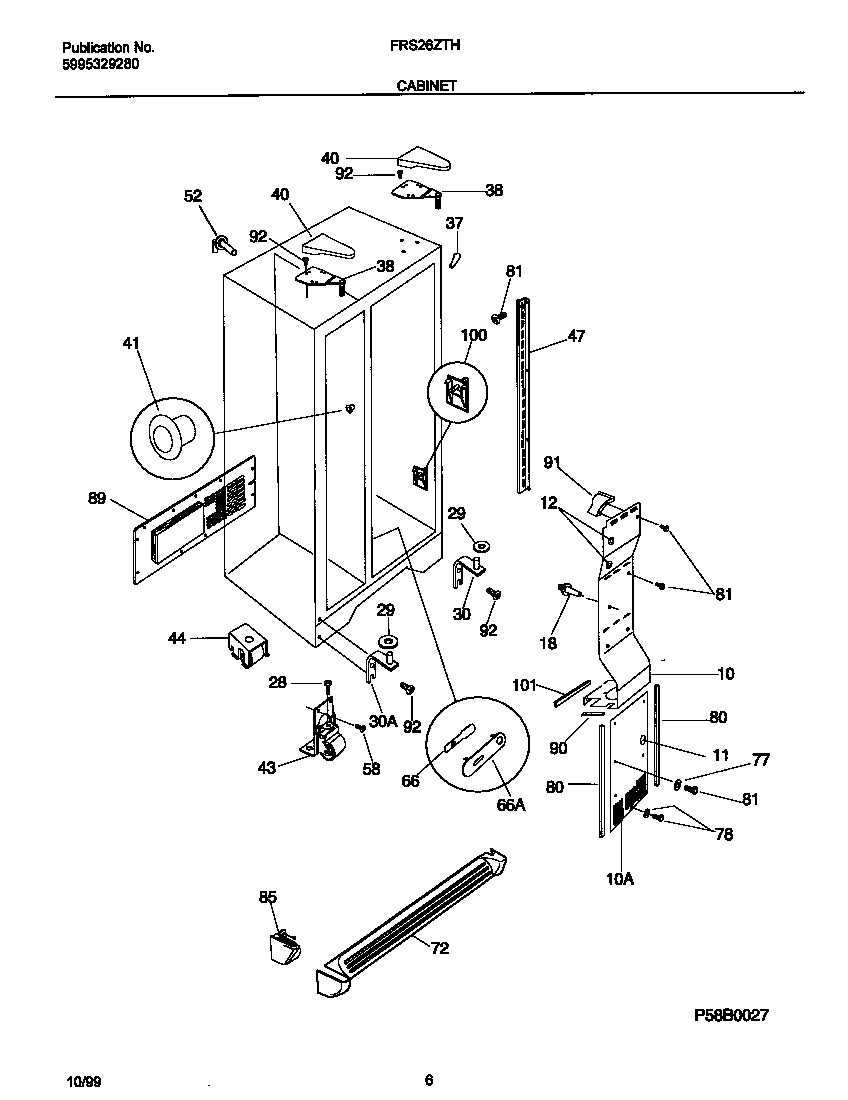

FRS26ZTHB2 04 – CABINET

FRS26ZTHB2 04 – CABINET

Written by

in

FRS26ZTHB2 04 – CABINET

Products

PositionProduct
*096595303321321 Frigidaire Refrigerator Black Touch-Up Paint
*09656WCI 218902101
*09648WCI 215598900
*09650WCI 218730800
*09653WCI 5303289036
*09652SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*09654WCI 5303289037
*09647SUPPORT-AIR DUCT CVR,1.83“ LONG
*09646NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*09649WCI 218871201
*096515304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*09655WCI 5303322647
10AWCI 215637401
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30WCI 215008900
30AWCI 215009100
30BWCI 218730700
37WCI 5303321083
38AWCI 218215218
38BWCI 218215220
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359609
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922706
89WCI 218871501
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
