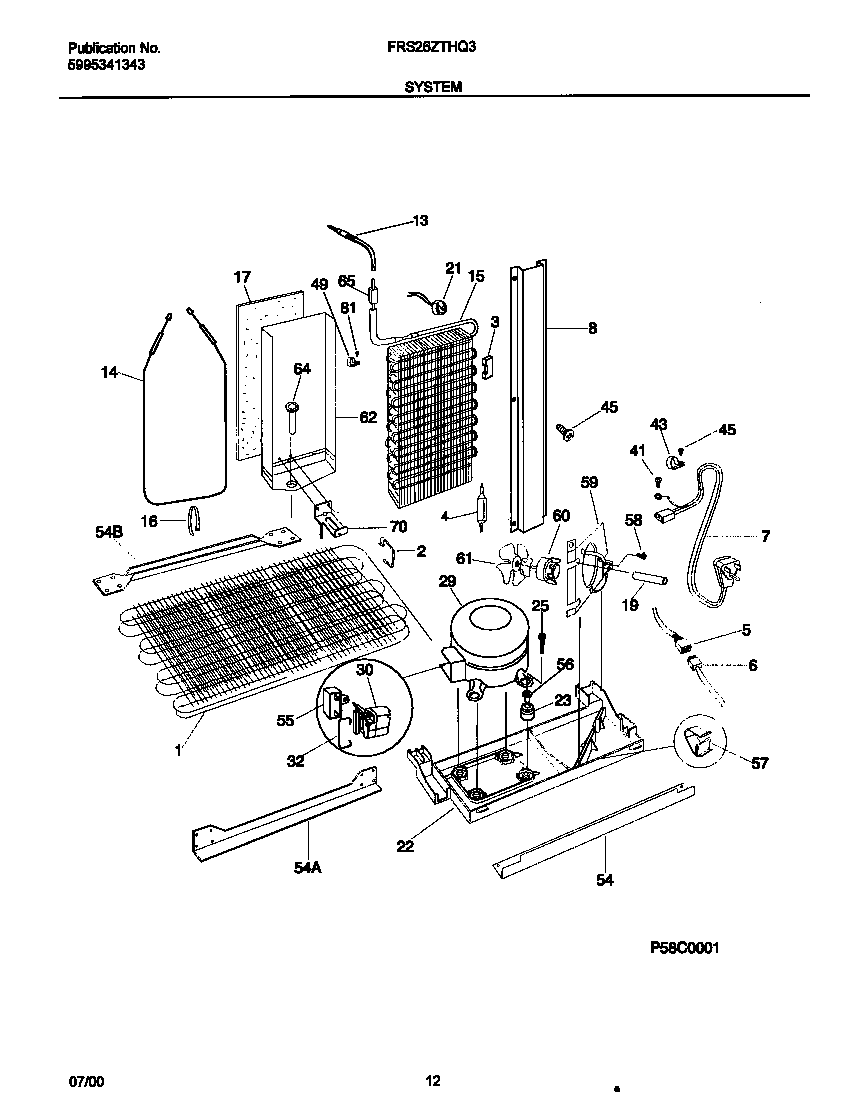

FRS26ZTHQ3 07 – SYSTEM

FRS26ZTHQ3 07 – SYSTEM

Written by

in

FRS26ZTHQ3 07 – SYSTEM

Products

PositionProduct
*35600WCI 215004800
*355965308000133 Frigidaire Refrigerator Clamp
*35591SPACER TUBE
*35601WCI 5303917166
*35595TUBE-INLET (NOT ILLUSTRATED)
*35592WCI 5304406039
*35598WCI 215732700
*35599WCI 215004700
*35590SPACER-COND TUBE,BLACK
*35594WIRING HARNESS,FRZR CONTROLS
*35597SCREW,HEX HD SER WSHR ,8-18 X 0.375
*35593WIRING HARNESS,REFR CONTROLS
1WCI 218787900
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960201
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169802 Frigidaire Refrigerator Defrost Heater
15WCI 218691301
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415956
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475102 Frigidaire Refrigerator Compressor Kit
30WCI 218721110
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048701
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
