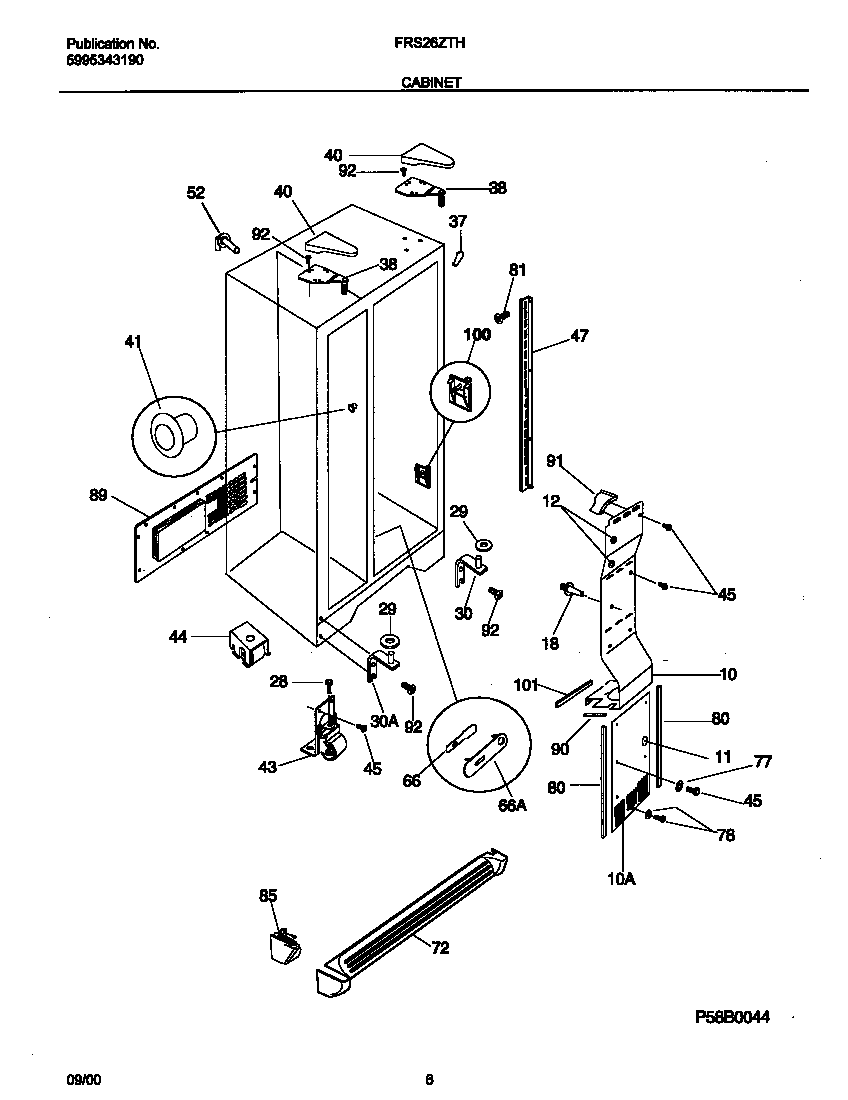

FRS26ZTHW4 04 – CABINET

FRS26ZTHW4 04 – CABINET

Written by

in

FRS26ZTHW4 04 – CABINET

Products

PositionProduct
*33093SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*33088WCI 215598900
*33089WCI 218871201
*33096WCI 218902101
*33090WASHER, .28 X .62 X .19, NYLON
*33095WCI 5303322647
*33087SUPPORT-AIR DUCT CVR,1.83“ LONG
*33094WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*331005303321319 Frigidaire Refrigerator White Touch Up Paint
*33091WCI 218979701
*330925304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 215637402
10WCI 215637602
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30AWCI 218993601
30WCI 218993801
30BWCI 218979601
37WCI 5303321081
38BWCI 218215247
38AWCI 218215245
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
585304455651 Frigidaire Refrigerator Screw
66WCI 218171301
66WCI 215050201
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922702
89WCI 215741412
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101AWCI 215305702
101BWCI 218663103
