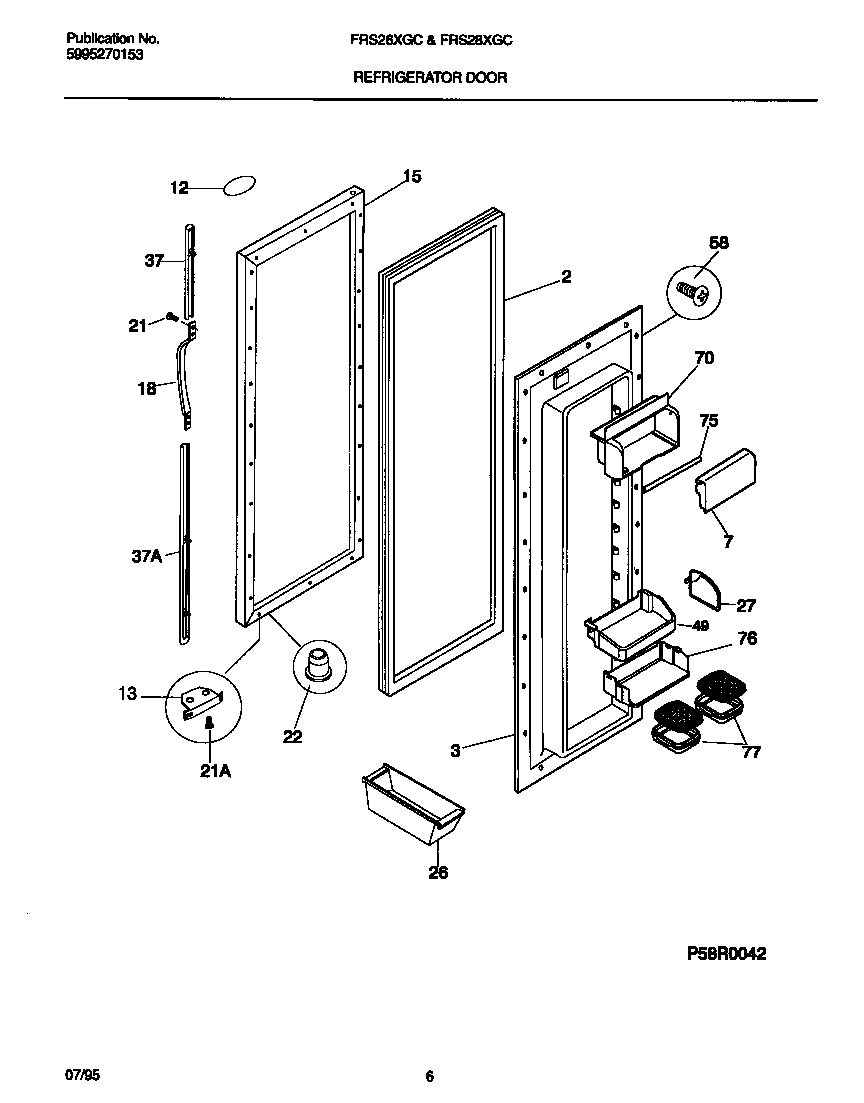

FRS28XGCD1 04 – REFRIGERATOR DOOR

FRS28XGCD1 04 – REFRIGERATOR DOOR

Written by

in

FRS28XGCD1 04 – REFRIGERATOR DOOR

Products

PositionProduct
*17362INSULATION
2WCI 215734306
3WCI 215434501
7WCI 218383101
12ALABEL-NAMEPLATE,ALMOND
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
13WCI 5303289522
15WCI 5303917513
18WCI 218025204
21218843801 Frigidaire Refrigerator Screw
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37AWCI 215867029
37WCI 215867035
37BWCI 215782300
49WCI 218592303
585304455651 Frigidaire Refrigerator Screw
70WCI 218383202
75WCI 218431100
76WCI 218423600
77WCI 218423501
