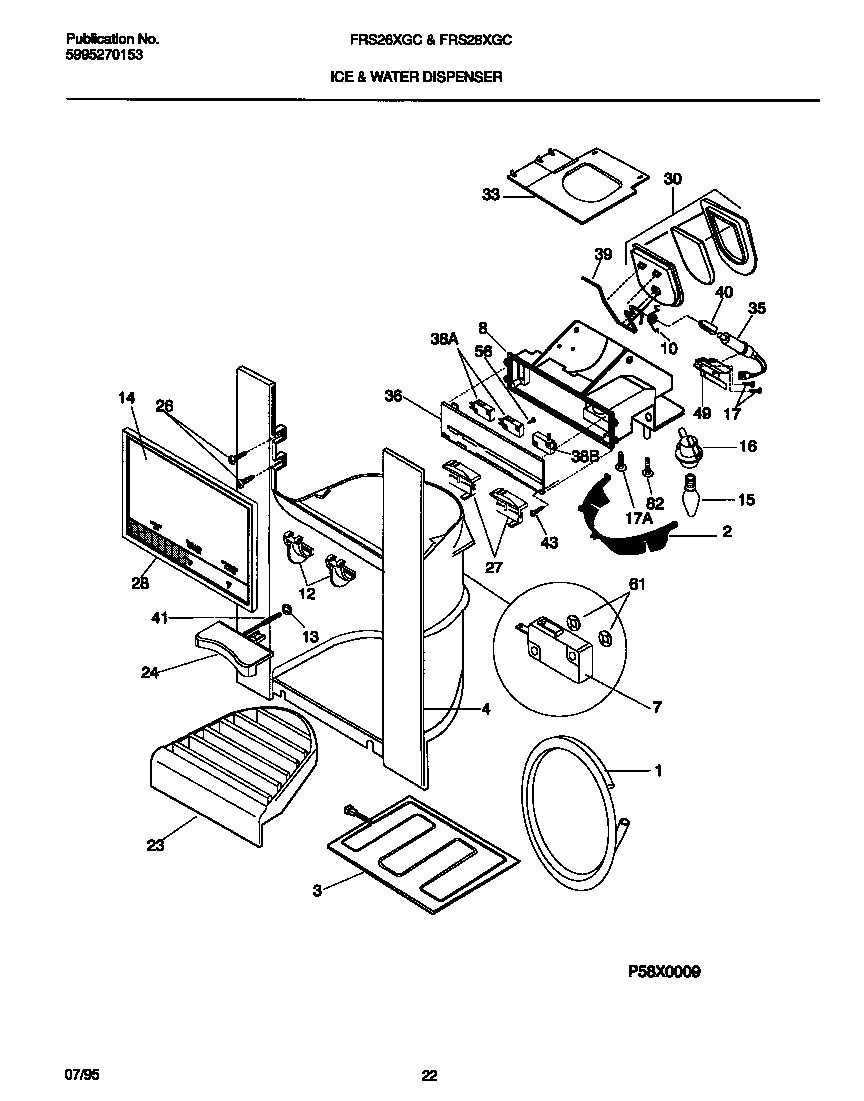

FRS28XGCD1 09 – ICE & WATER DISPENSER

Products

Position	Product
*17368	WCI 215781700
*17369	WCI 218432501
1A	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
1	WCI 215294101
2	WCI 218505302
3	WCI 215484300
4	WCI 218432102
7	WCI 218284800
7A	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
8	WCI 218505201
10	WCI 218209800
12	WCI 215766502
13	WCI 215748101
14	WCI 218408402
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17B	WASHER-FLAT
17A	WCI 215840700
17	WCI 215794400
23	WCI 5303297845
24	WCI 215766302
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
28	WCI 5303297847
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218510201
35	WCI 218284700
36	WCI 218432400
38A	WCI 218479900
38B	WCI 218480000
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
61	WCI 215766000
82	WCI 215296300
