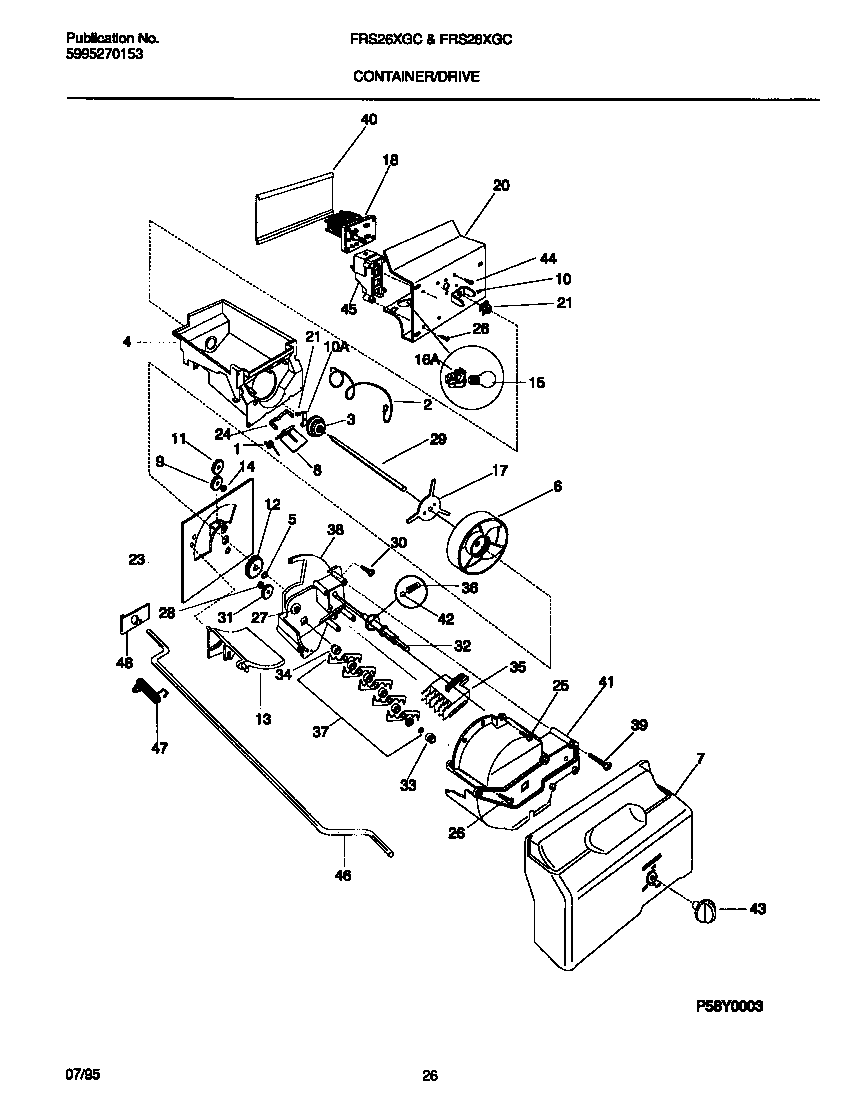

FRS28XGCW1 10 – CONTAINER/DRIVE

Written by

Products

Position	Product
*17370	WCI 215781700
1	WCI 215571300
2	WCI 218232500
3	WCI 218232300
4A	LABEL-ICE CONTAINER (NOT ILLUSTRATED)
4	WCI 218216800
5	WCI 215748105
6	WCI 215752800
7	WCI 215421613
8	WCI 215571200
9	WCI 215419700
10	241726501 Frigidaire Refrigerator Drive Bar
10A	WCI 218232800
11	WCI 215755200
12	WCI 215420400
13	WCI 218285200
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16A	218906802 Frigidaire Light Lamp Socket
17	WCI 215754800
18A	WCI 218329300
18	5304462594 Frigidaire Refrigerator Motor-Auger
20	WCI 215285302
23	WCI 215755300
23A	RING-RETAINER (NOT ILLUSTRATED)
23B	STUD (NOT ILLUSTRATED)
24	WCI 215571400
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
28	WCI 215755100
29	WCI 215757501
30	WCI 215757300
31	WCI 215757400
32	WCI 215747501
32A	RING-SNAP (NOT ILLUSTRATED)
33	WCI 215748200
34	WCI 215748300
35	WCI 215753500
36	WCI 215756700
37C	BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37I	SPACER, (4) (NOT ILLUSTRATED)
37H	SPACER, (2) (NOT ILLUSTRATED)
37G	RING-SNAP (NOT ILLUSTRATED)
37F	SHAFT-CRUSHER (NOT ILLUSTRATED)
37E	BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37D	BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37	WCI 215756100
37A	BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37B	BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
38	WCI 218270100
39	WCI 215757000
40	WCI 215363000
41	WCI 218270200
42	WCI 215756000
43A	SPRING-KNOB (NOT ILLUSTRATED)
43	WCI 215755003
44	WCI 218359200
45	WCI 215935901
46	WCI 218285301
47	WCI 215254800
48	WCI 215898200
