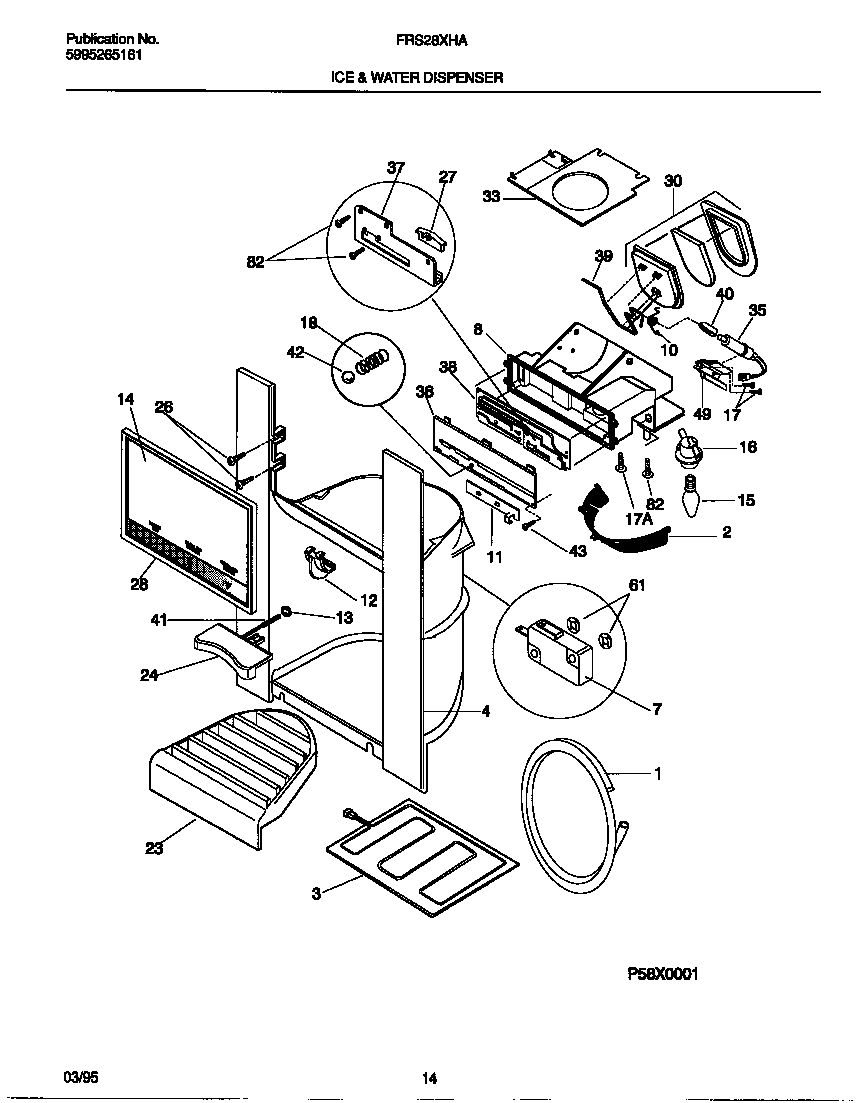

FRS28XHAB3 08 – ICE AND WATER DISPENSER

Products

Position	Product
*16451	HEAT MOTOR KIT, 115V, INCLUDES ITEMS, 7,10, 15, 17, 35
*16450	WCI 215781700
1A	WCI 215294101
1B	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 215732118
3	WCI 215484300
4	WCI 5303299527
7A	WCI 218284800
7B	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
8	WCI 215763501
10	WCI 218209800
11	WCI 215897500
12	WCI 215766503
13	WCI 215748101
14	WCI 215993003
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17B	WASHER-FLAT
17A	WCI 215840700
18	WCI 215760200
23	WCI 5303299660
24	WCI 215766303
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215254700
28	DOVER, MODULE, BLACK
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218379901
35	WCI 218284700
36	WCI 215254400
37	WCI 215763400
38A	WCI 215894603
38D	WCI 215763900
38C	WCI 215631000
38B	WCI 215630800
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
42	WCI 215756000
43	WCI 215760300
49	WCI 215794000
61	WCI 215766000
82	WCI 215296300
