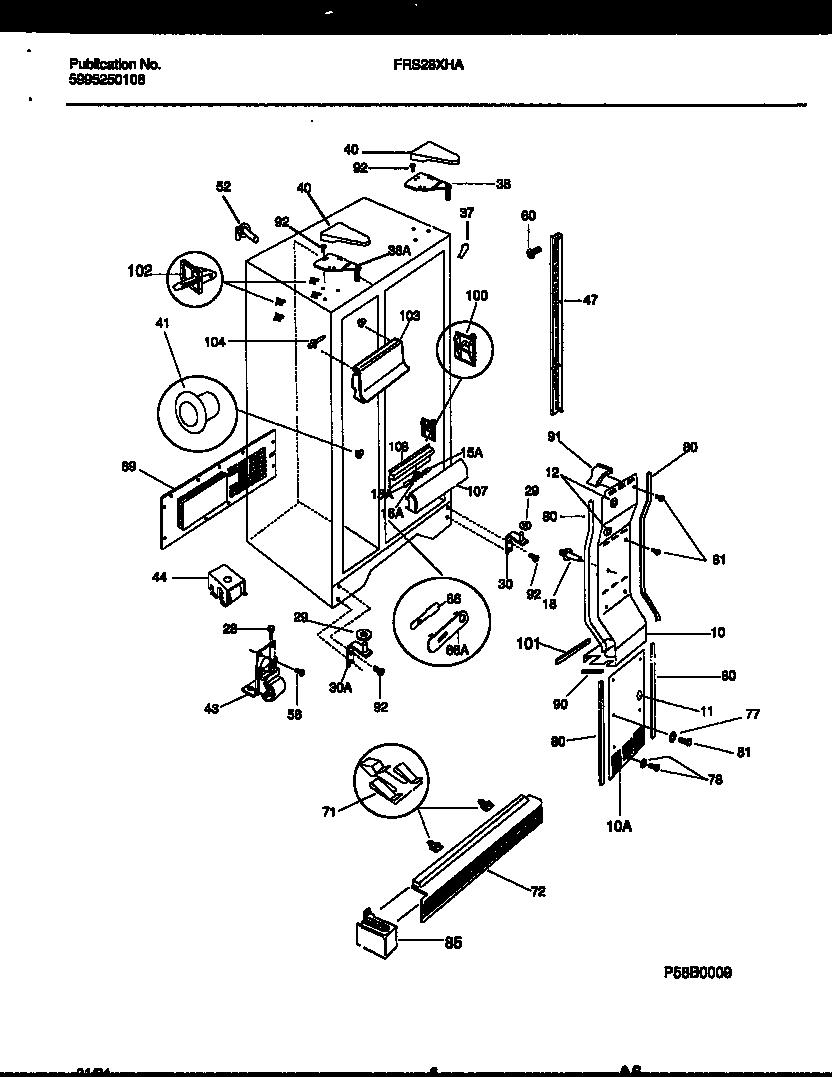

FRS28XHAD1 04 – CABINET PARTS

FRS28XHAD1 04 – CABINET PARTS

Written by

in

FRS28XHAD1 04 – CABINET PARTS

Products

PositionProduct
10WCI 5303300811
10AWCI 5303289494
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
15AWCI 215507900
16AWCI 5303299157
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29WCI 215598900
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
30WCI 215008900
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30AWCI 215009100
37TRIM-CABINET CORNER, ALMOND
38AWCI 215595701
38WCI 215004501
40WCI 5303288946
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52WCI 5303289294
585304455651 Frigidaire Refrigerator Screw
605304455852 Frigidaire Refrigerator Screw
66WCI 215050201
66AWCI 215050101
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 5303295758
77WASHER-NYLON,3/16 X 5/8 OD
