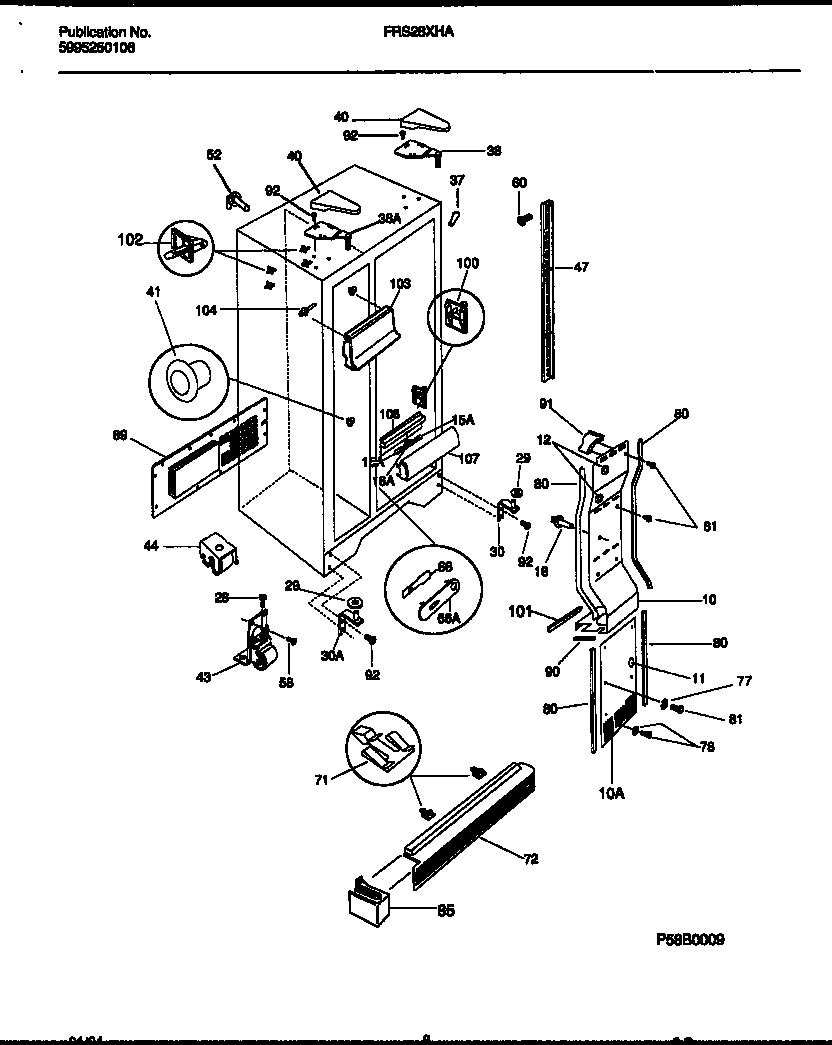

FRS28XHAD2 05 – CABINET PARTS

Products

Position	Product
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218154003
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003805
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 215413100
104	SUPPORT-ICE ACCESS DR
104A	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
107	WCI 215379300
108	WCI 215171800
