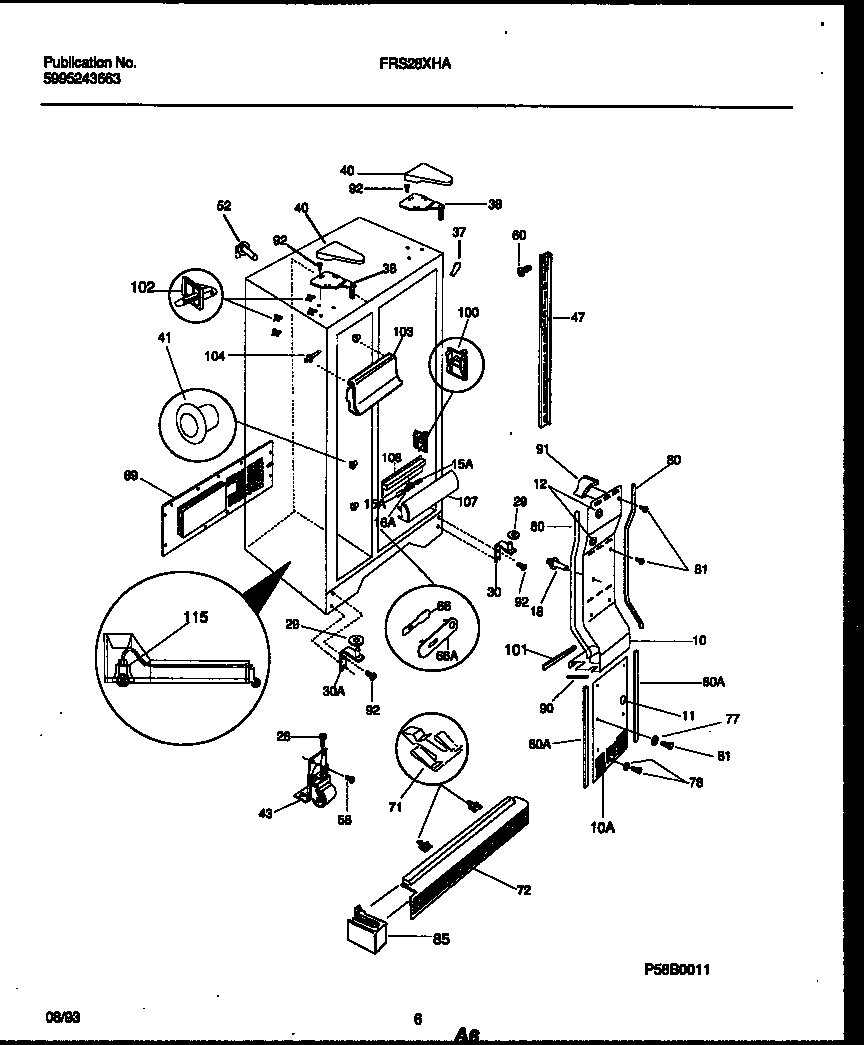

FRS28XHAW0 04 – CABINET PARTS

Products

Position	Product
10A	WCI 5303289494
10	WCI 5303300811
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15A	WCI 215507900
16A	WCI 5303299157
18	WCI 5303289043
18A	SUPPORT-AIR DUCT CVR,1.83“ LONG
28	WCI 5303289062
29	WCI 215003200
29	WCI 215598900
30	WCI 215008900
30A	WCI 215009100
30C	TAPPING PLATE, LH (NOT ILLUSTRATED)
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, WHITE
38	WCI 215595700
40	WCI 5303288945
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 5303289059
47	WCI 5303288974
52	WCI 5303289294
60	5304455852 Frigidaire Refrigerator Screw
66A	WCI 215050101
66	WCI 215050201
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 5303295757
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 5303300799
80A	WCI 5303289036
80	WCI 5303300800
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003802
