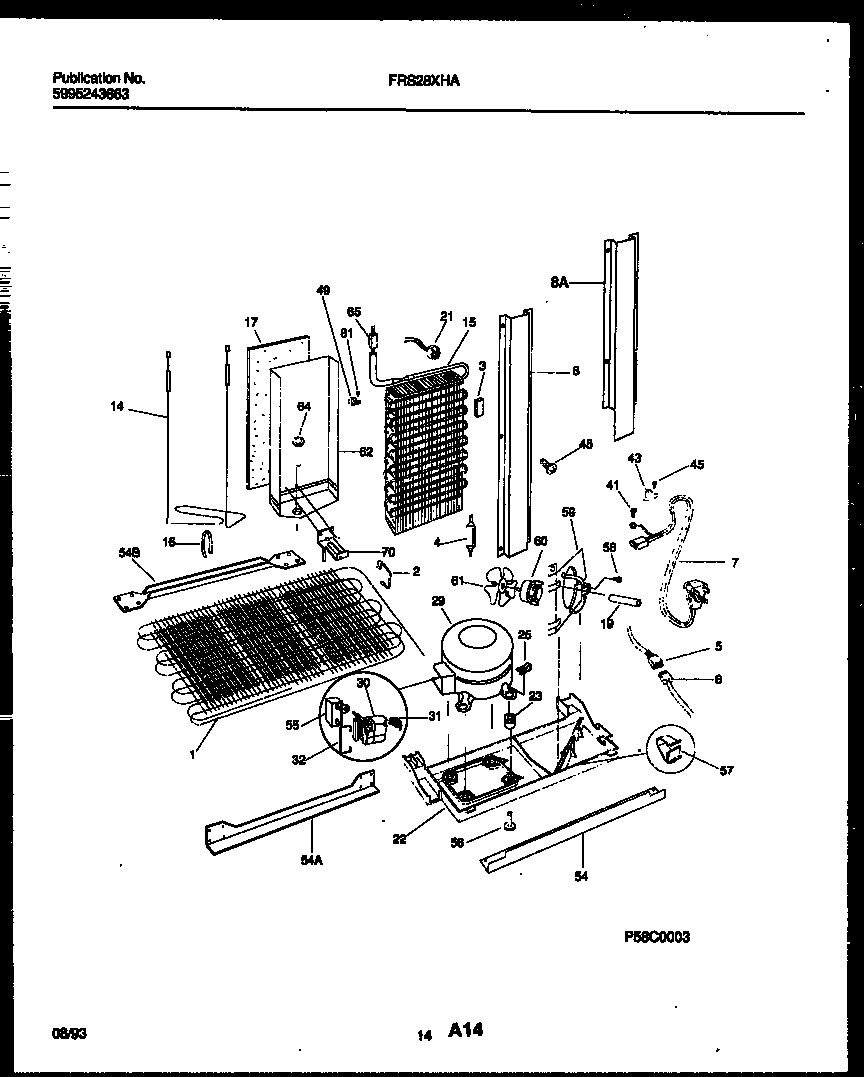

FRS28XHAW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FRS28XHAW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FRS28XHAW0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 215408100
1ASPACER-COND TUBE,BLACK
1BSPACER TUBE
2WCI 5303289029
3WCI 215226501
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215784400
5AHARNESS-WIRING, FRZR CONTROLS (NON-ILLUSTRATED)
5BWIRING HARNESS,REFR CONTROLS
6WCI 215669000
7WCI 215459201
8AWCI 215192800
8WCI 5303289033
14WCI 215752000
15ATUBE-INLET (NOT ILLUSTRATED)
15EVAPORATOR, W/HEAT EXCHANGR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289496
19TUBE-RUBBER
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917193
30WCI 216008900
315303271616 Frigidaire Refrigerator P1-Overload
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
43B5308000133 Frigidaire Refrigerator Clamp
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
45A5304455852 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289027
54BWCI 5303289292
54CWCI 215732700
54AWCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61BGROMMET, SILENCER (NOT ILLUSTRATED)
61AWCI 215004700
61WCI 5303289032
62WCI 215048700
64241957901 Frigidaire Refrigerator Tube-Drain
