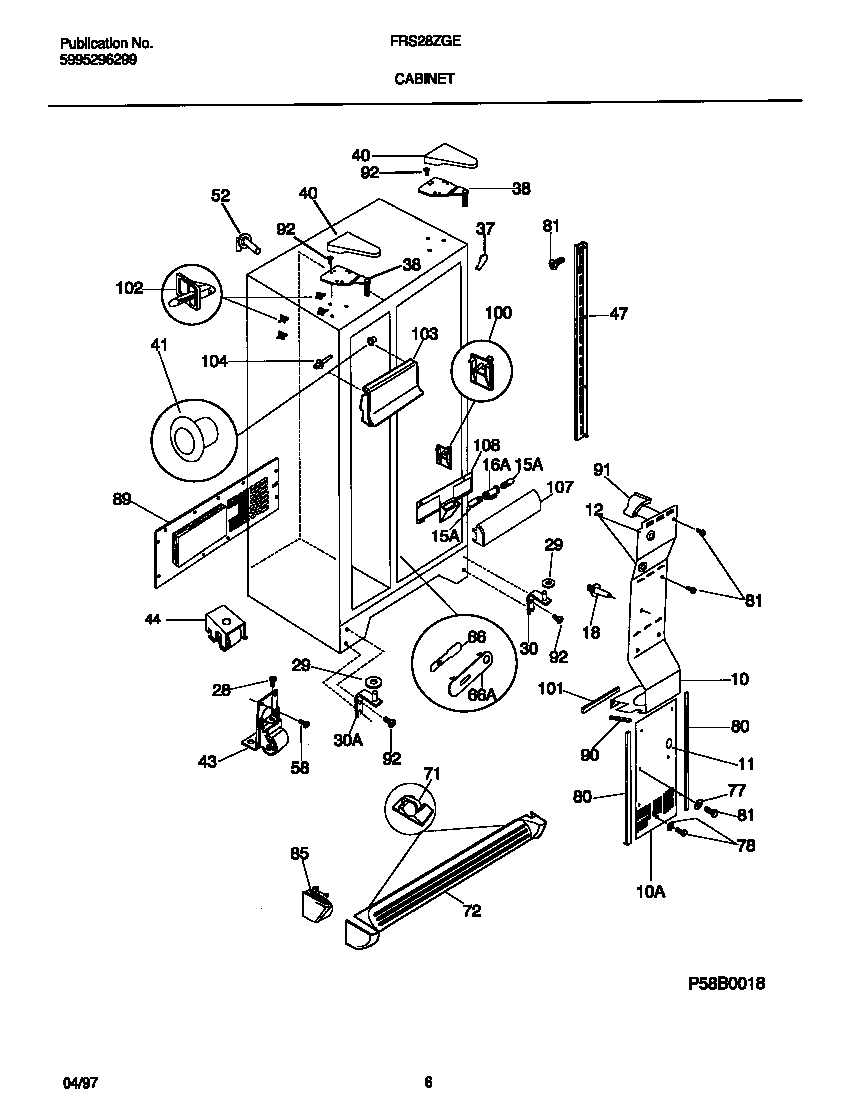

FRS28ZGEB3 04 – CABINET

Products

Position	Product
*02045	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
*02044	PLUG, BUTTON, CABINET LINER (NI)
*02043	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 215637400
10	WCI 5303300811
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
15	WCI 218708700
16	WCI 5303299157
18B	SUPPORT-AIR DUCT CVR,1.83“ LONG
18A	WCI 5303289043
28	WCI 5303289062
29A	WCI 215003200
29C	WCI 215598900
29B	WCI 215314300
30	WCI 215009100
30	WCI 215008900
30C	WCI 218730900
30A	WCI 218730700
30B	WCI 218730800
37	WCI 5303321083
38B	WCI 218215218
38A	WCI 218215220
40	WCI 218374406
41A	5304509705 Frigidaire Refrigerator Grommet
41B	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43A	WCI 218615300
43B	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 218738300
47	WCI 5303288974
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 215050201
66	WCI 218171301
71	218515401 Frigidaire Refrigerator Clip
72	WCI 218359609
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218359806
89	WCI 215176300
90B	WCI 5303322647
90A	WCI 215022602
91	WCI 218770000
92	241710601 Frigidaire Refrigerator Screw
100	SUPPORT-PAN COVER
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 215413100
104B	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104A	SUPPORT-ICE ACCESS DR
107	WCI 218188800
108	WCI 218710800
