FRS28ZGED3 06 – CONTROLS

FRS28ZGED3 06 – CONTROLS

Written by

in

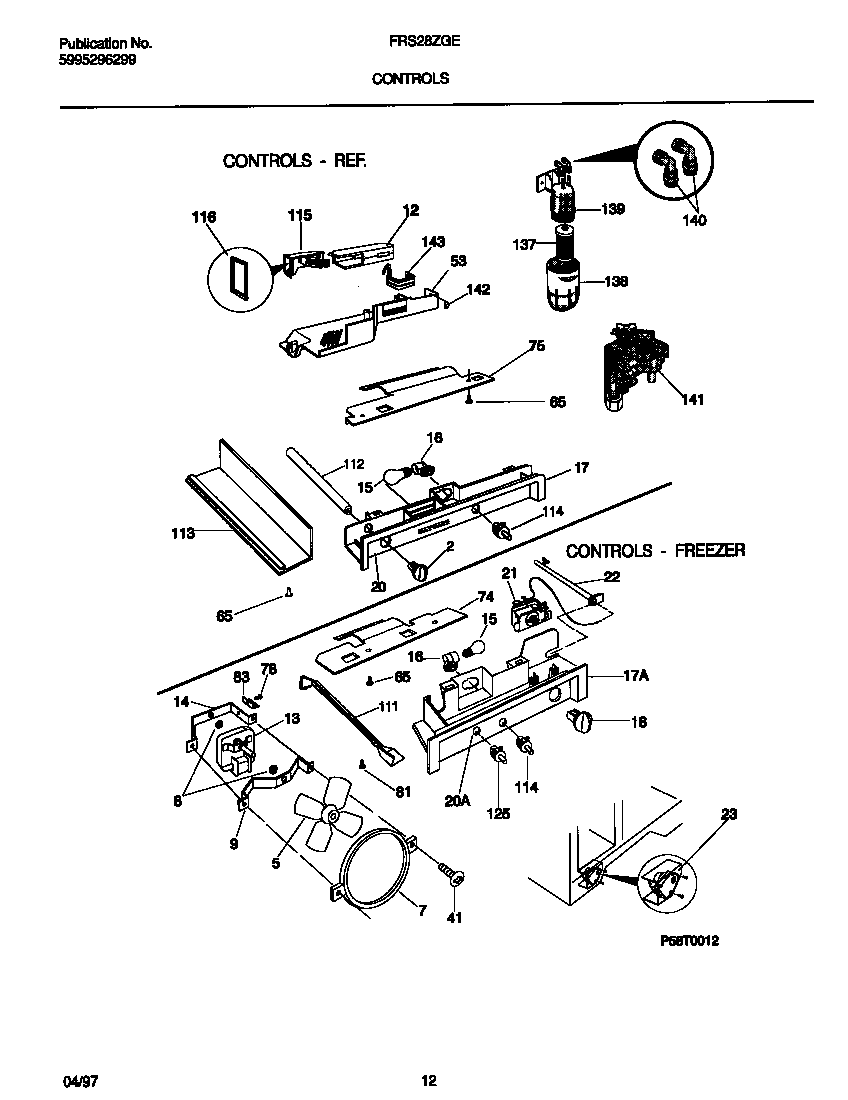

FRS28ZGED3 06 – CONTROLS

Products

PositionProduct
*02051Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
*02049SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*02050218710300 Frigidaire Refrigerator Water Filter Wrench
*02052WIRING HARNESS,FILTER HEATER
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13B215474201 Frigidaire Refrigerator Washer
13AWCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17CONTROL BOX, FRZR
17WCI 218468701
18WCI 5303307882
20WCI 5303307884
20WCI 5303307888
21WCI 5303300027
22WCI 5303319683
23DSHIELD-DEFROST TIMR,BTM
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23CCOVER-DEFROST TIMER, TOP
23B5304455649 Frigidaire Refrigerator Screw
41A5308000039 Frigidaire Refrigerator Screw
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215809506
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
112WCI 215277102
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
137WCI 215334201
138WCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
