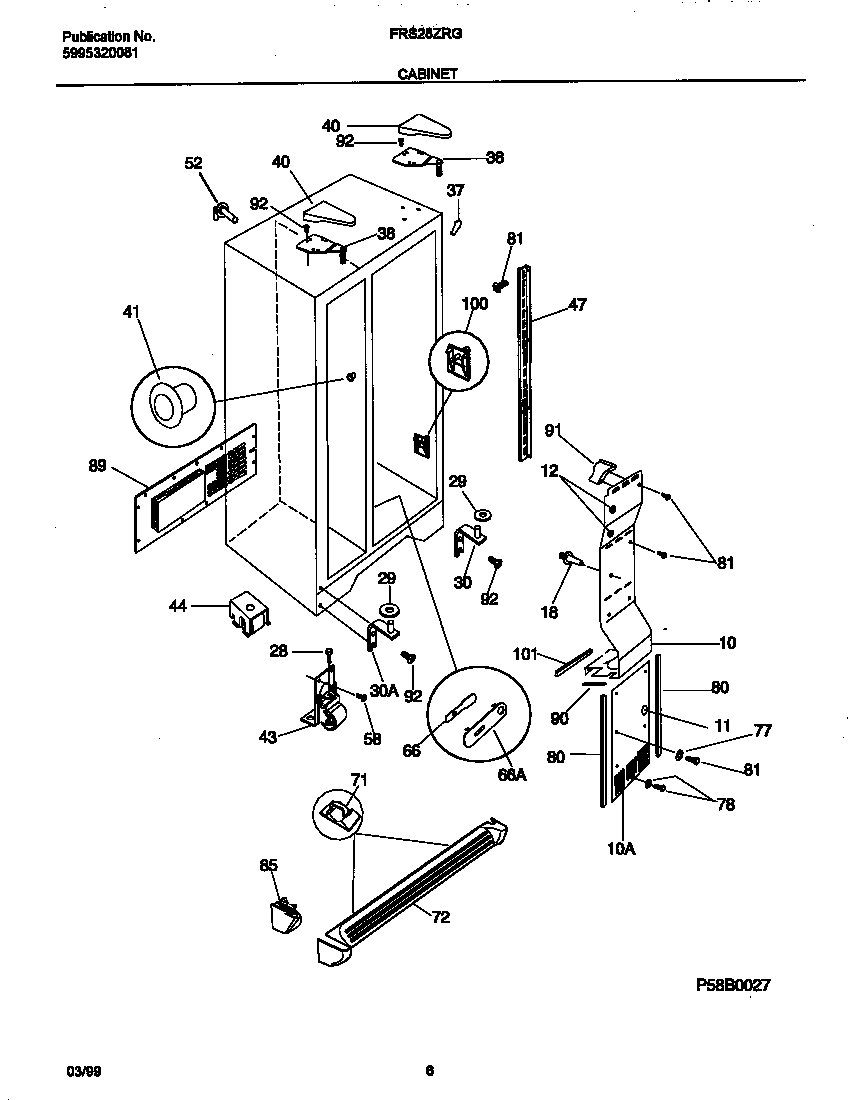

FRS28ZRGD3 04 – CABINET

FRS28ZRGD3 04 – CABINET

Written by

in

FRS28ZRGD3 04 – CABINET

Products

PositionProduct
*88136TOUCH, UP PAINT, ALMOND (NI)
*88131SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*88129WCI 218730900
*88124WCI 215314301
*88127WCI 218871201
*88128WCI 218730800
*88126WCI 215314300
*88133WCI 218836401
*88134WASHER, .28 X .62 X .19, NYLON
*88132WCI 5303322647
*88123SUPPORT-AIR DUCT CVR,1.83“ LONG
*881305304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*88125WCI 215598900
*88122NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*88137PLUG, BUTTON, CABINET LINER (NI)
10WCI 5303300811
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30BWCI 218730700
30WCI 215008900
30AWCI 215009100
37WCI 5303321082
38AWCI 218215222
38BWCI 218215224
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359605
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359804
89WCI 215176300
90WCI 215022602
91WCI 218770000
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 218663103
101WCI 215305702
