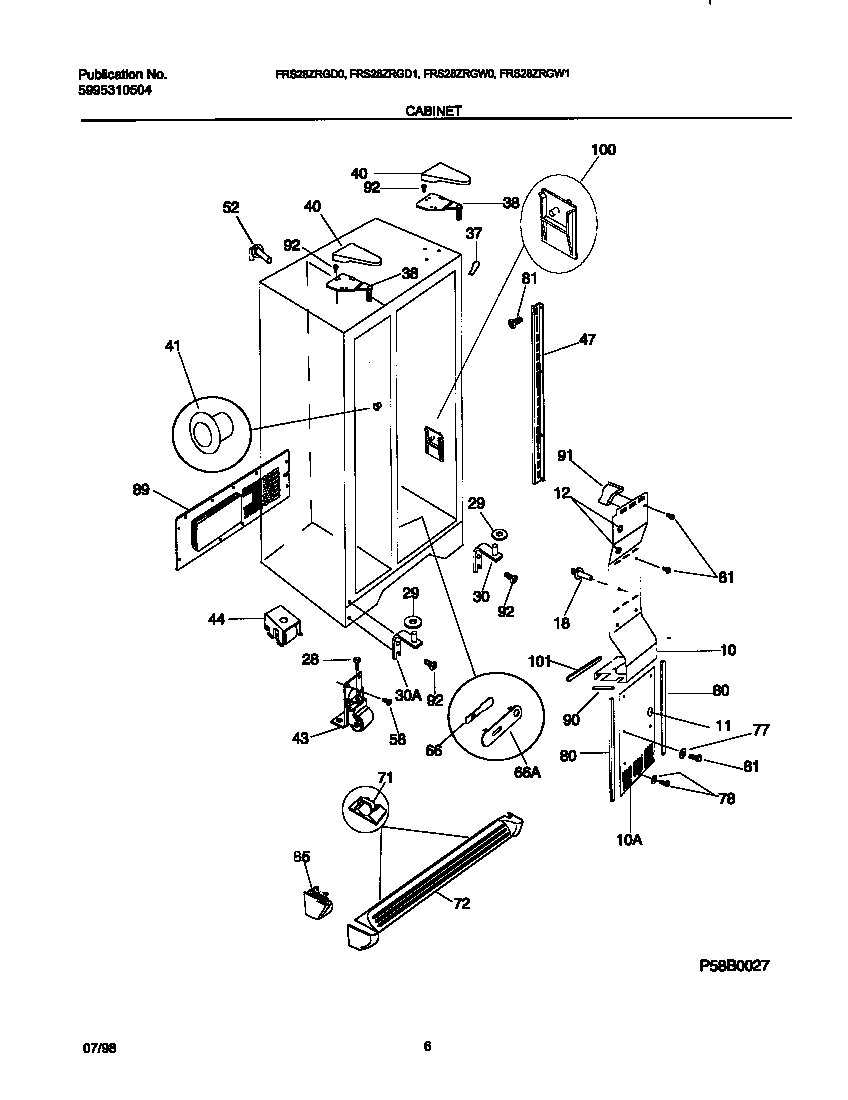

FRS28ZRGW0 04 – CABINET

FRS28ZRGW0 04 – CABINET

Written by

in

FRS28ZRGW0 04 – CABINET

Products

PositionProduct
*22932WCI 5303322647
*22928WCI 218730800
*22927WCI 218730700
*22931SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*22929WCI 218730900
*22925SUPPORT-AIR DUCT CVR,1.83“ LONG
*22924NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*22937PLUG, BUTTON, CABINET LINER (NI)
*22936WCI 5308001617
*229305304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*22933WASHER, .28 X .62 X .19, NYLON
*22926WCI 215598900
*229355303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 5303300811
10WCI 215637401
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30WCI 215009100
30WCI 215008900
37WCI 5303321081
38BWCI 218215219
38AWCI 218215217
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 5303288974
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359601
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359802
89WCI 215176300
90WCI 215022602
91WCI 218836401
92241710601 Frigidaire Refrigerator Screw
100SUPPORT-PAN COVER
101WCI 215305702
