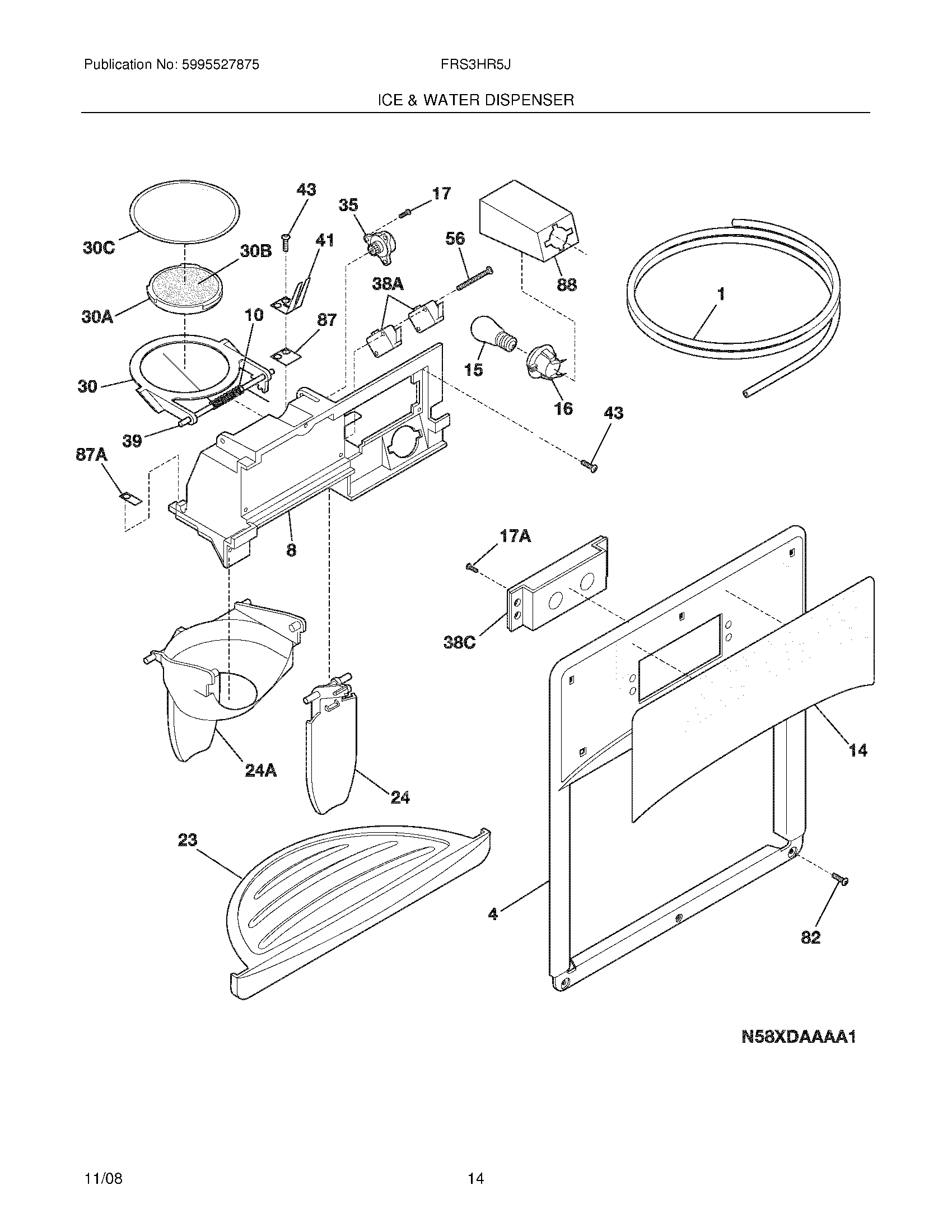

FRS3HR5JQ3 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	218976419 Frigidaire Refrigerator Tube
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	240561701 Frigidaire Refrigerator Seal
NI	218976420 Frigidaire Refrigerator Tube
NI	218515403 Frigidaire Refrigerator Clip-Grille
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 241679002
8	WCI 241680506
10	241688901 Frigidaire Refrigerator Torsion Spring
14	WCI 240570205
15	WCI 5304506475
16	240548901 Frigidaire Refrigerator P-1 Socket
17A	241679901 Frigidaire Refrigerator Screw
17	241679801 Frigidaire Screw
23	241649003 Frigidaire Refrigerator Drip Tray
24A	5304493021 Frigidaire Refrigerator Actuator Kit
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
30B	241688601 Frigidaire Refrigerator Door Insulation
30C	241688701 Frigidaire Refrigerator Door Seal
35	241689301 Frigidaire Refrigerator Rotary Damper
38A	241689106 Frigidaire Refrigerator Micro Switch
38C	5304521693 Frigidaire Refrigerator Harness-Facade W/Li
38A	241679201 Frigidaire Refrigerator Wiring Harness
38C	5304525097 Frigidaire Refrigerator 4 Button Switch Assembly
39	241688801 Frigidaire Refrigerator Pin-Hinge
41	241689001 Frigidaire Refrigerator Actuator Spring
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
82	5304453707 Frigidaire Oven Screw
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
88	WCI 241686101
