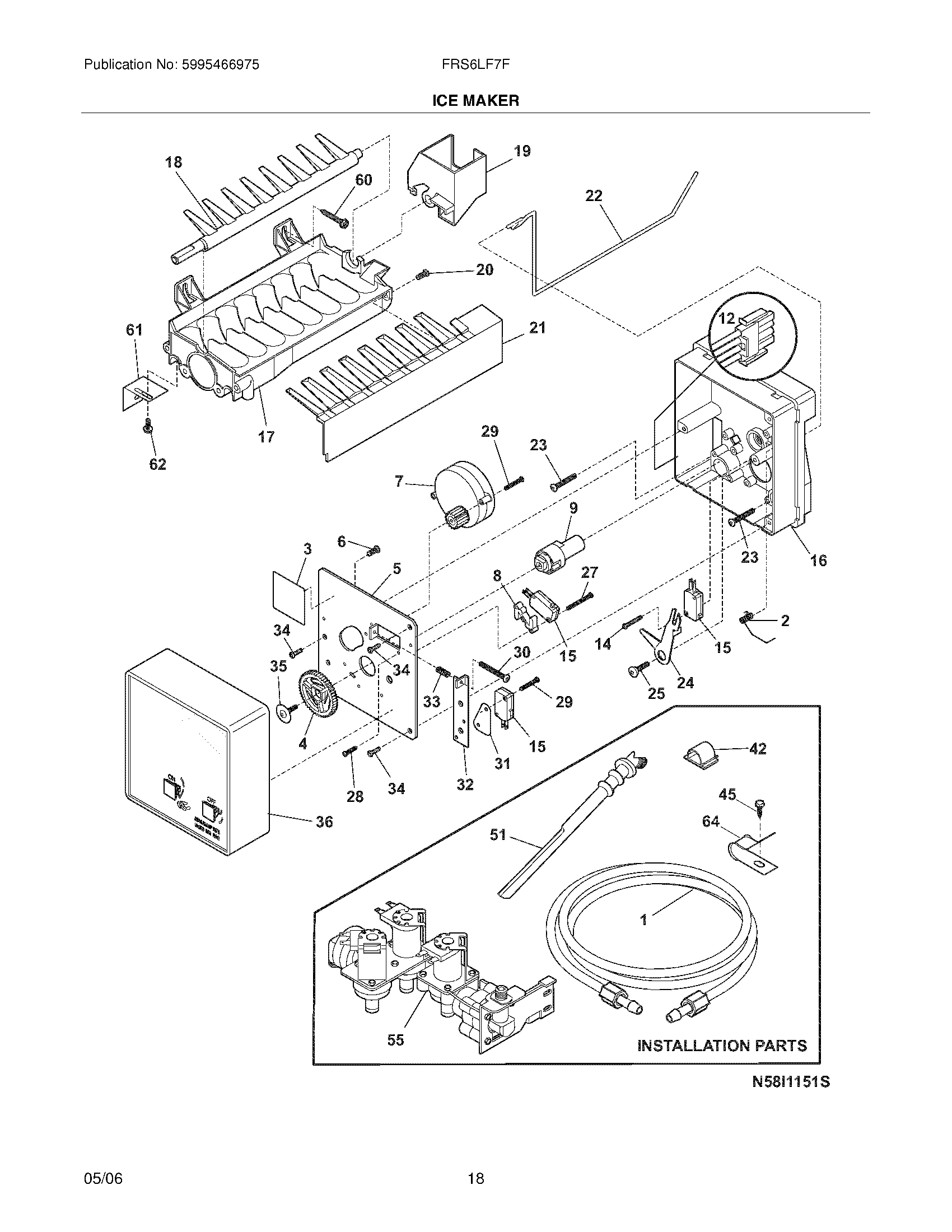

FRS6LF7FM3 19 – ICE MAKER

FRS6LF7FM3 19 – ICE MAKER

Written by

in

FRS6LF7FM3 19 – ICE MAKER

Products

PositionProduct
NI218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI5304445223 Frigidaire SPRING BEAM
NI241798231 Frigidaire Refrigerator Ice Maker Assembly
NIWCI 241642601
NI240363602 Frigidaire Refrigerator Shoulder Screw
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240561701 Frigidaire Refrigerator Seal
NI218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NIWCI 5304455843
NI240542901 Frigidaire Water Valve Cap
NIAdapter-water supply,nut & sleeve ,
NIWCI 218976907
1218976409 Frigidaire Refrigerator Water Tube
2WCI 5304420650
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 5304455693
6218359202 Frigidaire Refrigerator Screw
8SPACER-HOLD SWITCH
9WCI 3206313
12WCI 5304420651
14WCI 5304455676
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 5304420653
18EJECTOR-ICE
19WCI 3206330
205304455677 Frigidaire Screw
21ICE STRIPPER
22SHUT-OFF ARM
23WCI 5304455678
245304456675 Frigidaire Refrigerator Lever Arm
27WCI 5304455681
28Screw-timing stop`4-40 x 0.375
29WCI 5304455845
30WCI 5304455682
31WCI 3206342
32WCI 5304455683
33WCI 5304408583
34WCI 5304455684
35WCI 5304455685
36COVER-ICE MAKER
42WCI 218515402
455304455650 Frigidaire Refrigerator Screw
51241796405 Frigidaire Refrigerator Fill Water Tube
55242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
