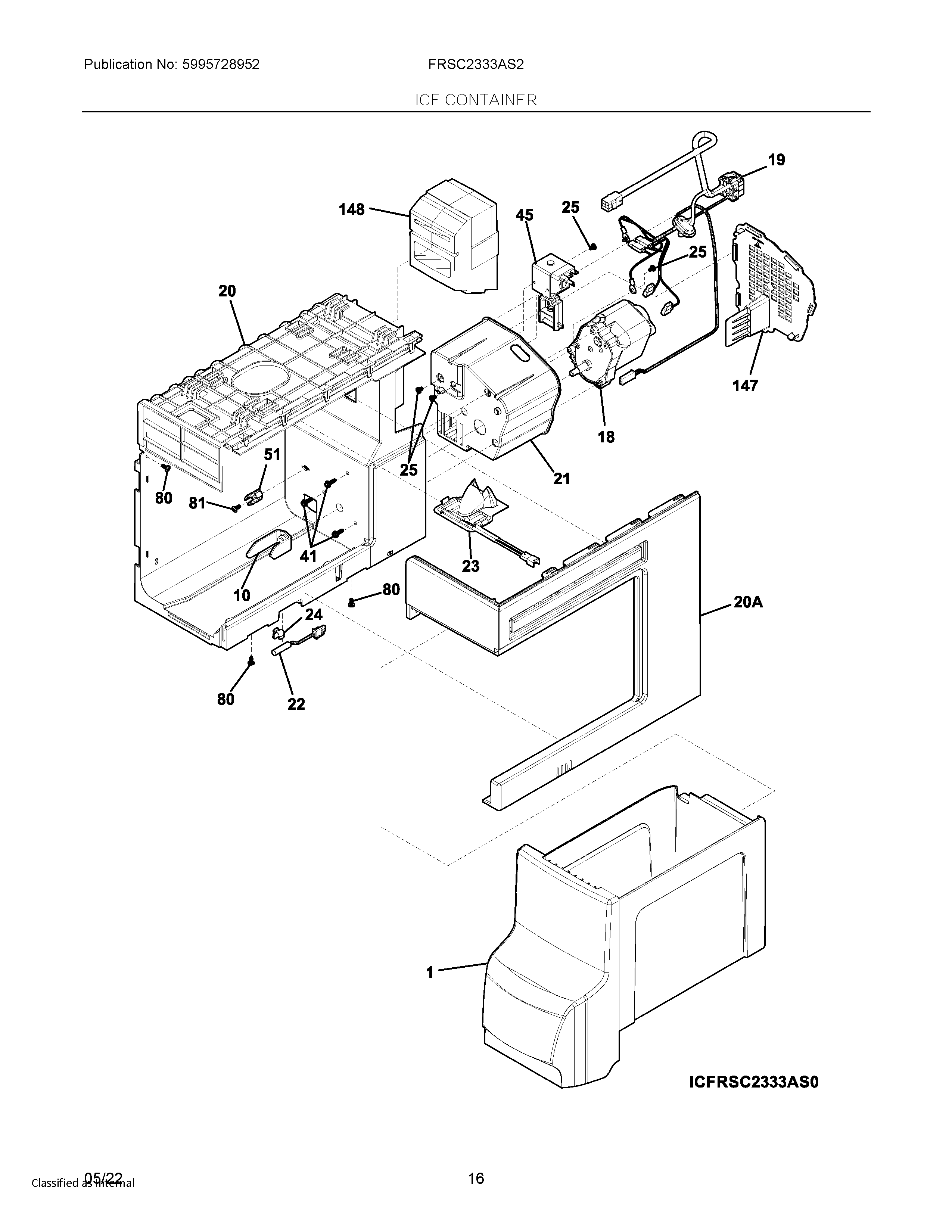

FRSC2333AS2 09 – ICE CONTAINER

FRSC2333AS2 09 – ICE CONTAINER

Written by

in

FRSC2333AS2 09 – ICE CONTAINER

Products

PositionProduct
NI242039702 Frigidaire Refrigerator Screw
NI218515401 Frigidaire Refrigerator Clip
15304527136 Frigidaire Refrigerator Ice Container Assem
10241829002 Frigidaire Refrigerator Drive Bar
185304527039 Frigidaire Refrigerator Motor
195304521770 Frigidaire Refrigerator Harness
20242303501 Frigidaire Refrigerator Housing
20A242303701 Frigidaire Refrigerator Housing
21A242015001 Frigidaire Refrigerator Screw
21242305203 Frigidaire Refrigerator Motor-Cover Housing
22240597220 Frigidaire Sensor
235304504455 Frigidaire Refrigerator Fill Cup
24241519401 Frigidaire Refrigerator Clip
25218359202 Frigidaire Refrigerator Screw
33241684802 Frigidaire Refrigerator Spacer
34241689802 Frigidaire Refrigerator Spacer
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
425308000039 Frigidaire Refrigerator Screw
45A241675902 Frigidaire Refrigerator Solenoid Spring
45B241676001 Frigidaire Refrigerator E-Ring Solenoid
45C241676101 Frigidaire Refrigerator Solenoid-Actuator
45D241675705 Frigidaire Refrigerator Solenoid
53241690402 Frigidaire Refrigerator Pin-Spiral
55241690306 Frigidaire Refrigerator Washer
56241690201 Frigidaire Refrigerator E-Ring
80241953902 Frigidaire Refrigerator Screw
81241953908 Frigidaire Refrigerator Screw
1475304504451 Frigidaire Refrigerator Motor
1485304504447 Frigidaire Refrigerator Duct Air
