FRSC2333AS3 07 – SYSTEM

FRSC2333AS3 07 – SYSTEM

Written by

in

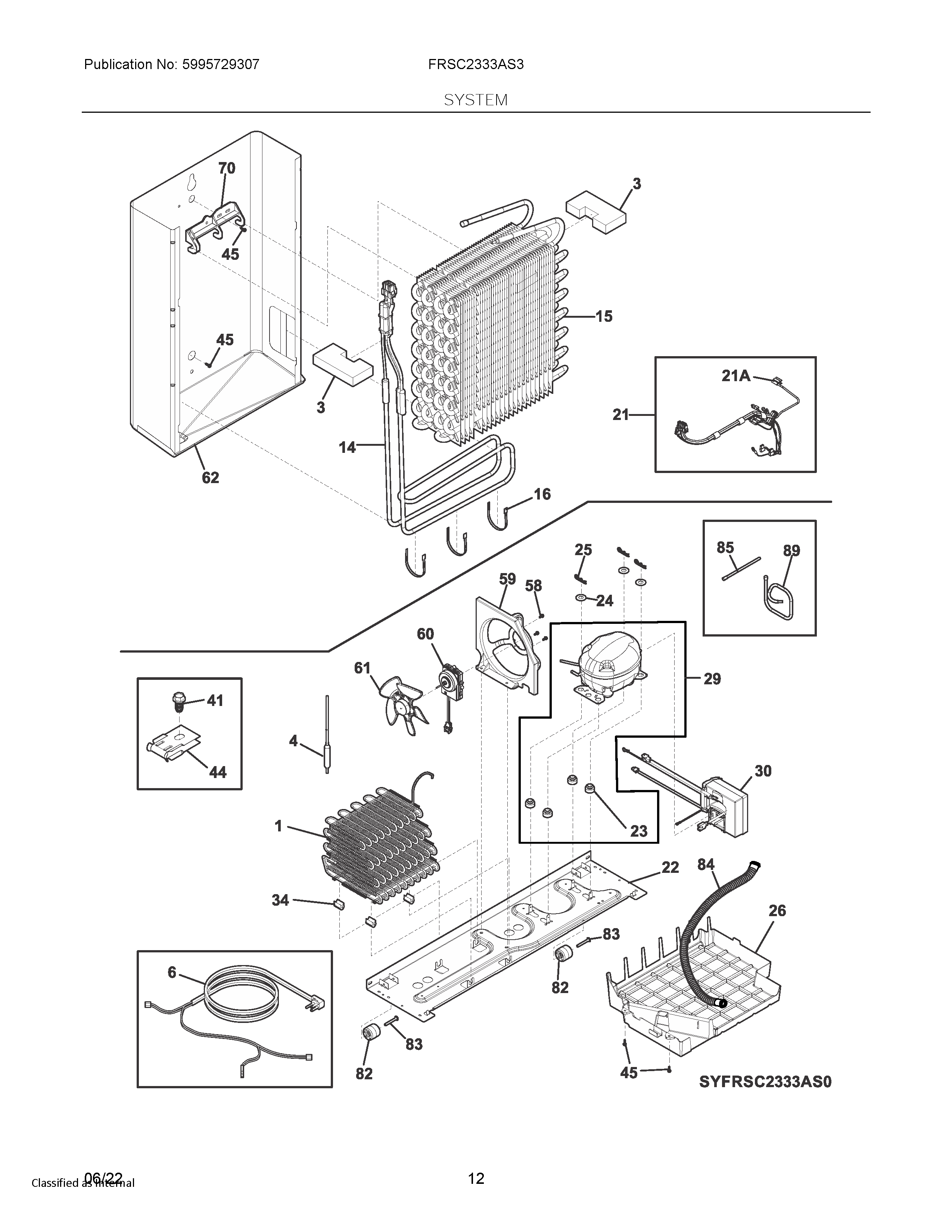

FRSC2333AS3 07 – SYSTEM

Products

Position	Product
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	218515401 Frigidaire Refrigerator Clip
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIA	WCI 5304532463
NI	240451503 Frigidaire Refrigerator Screw
NIA	5304526071 Frigidaire Refrigerator Connector
NI	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NI	5304527119 Frigidaire Screw
NIA	5304525986 Frigidaire Refrigerator Harness
NI	241500305 Frigidaire Refrigerator Screw
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5304526032 Frigidaire Refrigerator Heater
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21C	218252201 Frigidaire Refrigerator Screw
21	5304526980 Frigidaire Refrigerator Assembly Harness
21A	5303918645 Frigidaire Refrigerator Thermistor Kit
22	S/A-COMPR BASE & COMPONENTS
23	5304523829 Frigidaire Refrigerator Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697502 Frigidaire Pan-Defrost Drain
29	5303918894 Frigidaire Refrigerator Invert W Compressor
30A	5304532179 Frigidaire Compressor
30	5304527038 Frigidaire Inverter Board
34	240405201 Frigidaire Refrigerator Grommet
38	S/A-UI HOUSING ND SS
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
42	5308000039 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	241500303 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	242018303 Frigidaire Refrigerator Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304526003 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
85	5304530251 Frigidaire Tube Assembly
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
89	215346903 Frigidaire Tube-Process
94	5303918775 Frigidaire Refrigerator Thermistor
