FRSC2333AS3 10 – ICE MAKER

FRSC2333AS3 10 – ICE MAKER

Written by

in

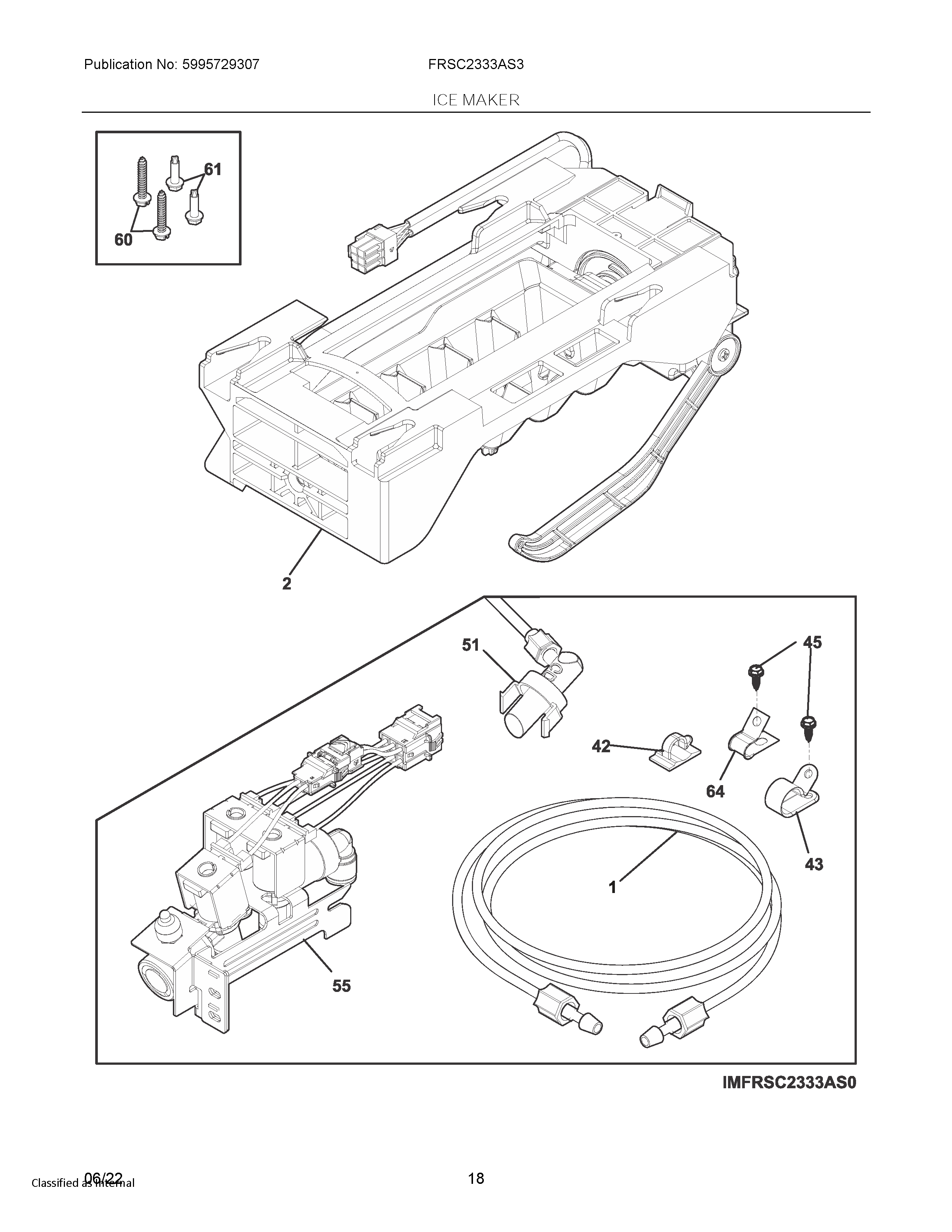

FRSC2333AS3 10 – ICE MAKER

Products

PositionProduct
NI241806601 Frigidaire Refrigerator Water Connector
NIA218976421 Frigidaire Refrigerator Water Inlet Tube
NI242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NIC242220119 Frigidaire Refrigerator Water Tube
NIB218976822 Frigidaire Refrigerator Water Tube
NIA242036801 Frigidaire Refrigerator Plastic Clip
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NID242220126 Frigidaire Refrigerator Tube
1218976438 Frigidaire Refrigerator Tube
2243297613 Frigidaire Refrigerator Ice Maker
275304453707 Frigidaire Oven Screw
42218515401 Frigidaire Refrigerator Clip
43CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
45241500303 Frigidaire Refrigerator Screw
51241850619 Frigidaire Refrigerator Tube Assembly
55WATER VALVE, TRIPE SOLENOID
605304455852 Frigidaire Refrigerator Screw
61241853202 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
