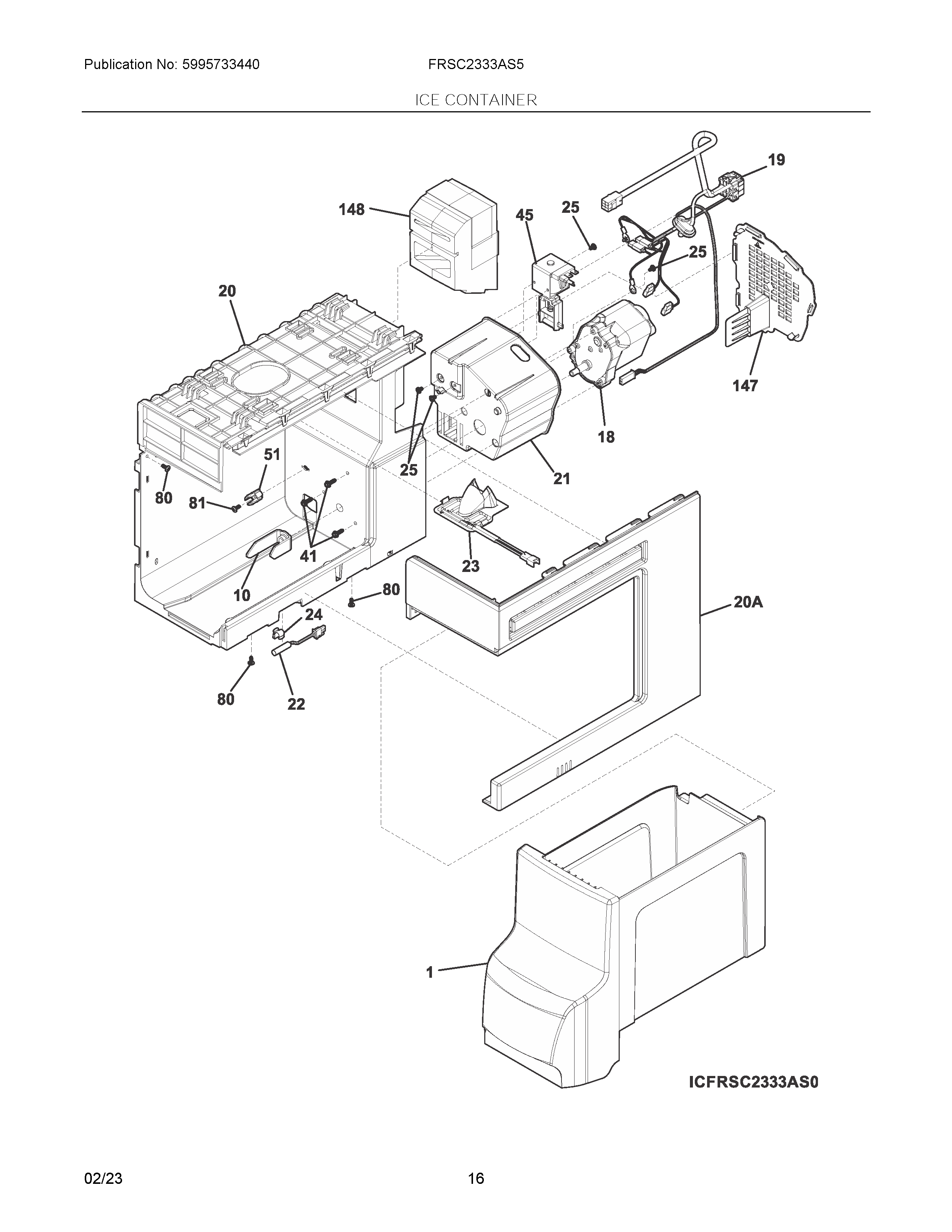

FRSC2333AS5 09 – ICE CONTAINER

Products

Position	Product
NI	218515401 Frigidaire Refrigerator Clip
NI	242039702 Frigidaire Refrigerator Screw
1	5304527136 Frigidaire Refrigerator Ice Container Assem
10	241829002 Frigidaire Refrigerator Drive Bar
18	5304527039 Frigidaire Refrigerator Motor
19	5304521770 Frigidaire Refrigerator Harness
20A	242303701 Frigidaire Refrigerator Housing
20	242303501 Frigidaire Refrigerator Housing
21A	242015001 Frigidaire Refrigerator Screw
21	242305203 Frigidaire Refrigerator Motor-Cover Housing
22	240597220 Frigidaire Sensor
23	5304504455 Frigidaire Refrigerator Fill Cup
24	241519401 Frigidaire Refrigerator Clip
25	218359202 Frigidaire Refrigerator Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
41	240555005 Frigidaire Refrigerator Screw
42	5308000039 Frigidaire Refrigerator Screw
45A	241675902 Frigidaire Refrigerator Solenoid Spring
45D	241675705 Frigidaire Refrigerator Solenoid
45B	241676001 Frigidaire Refrigerator E-Ring Solenoid
45C	241676101 Frigidaire Refrigerator Solenoid-Actuator
53	241690402 Frigidaire Refrigerator Pin-Spiral
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
80	241953902 Frigidaire Refrigerator Screw
81	241953908 Frigidaire Refrigerator Screw
147	5304504451 Frigidaire Refrigerator Motor
148	5304504447 Frigidaire Refrigerator Duct Air
