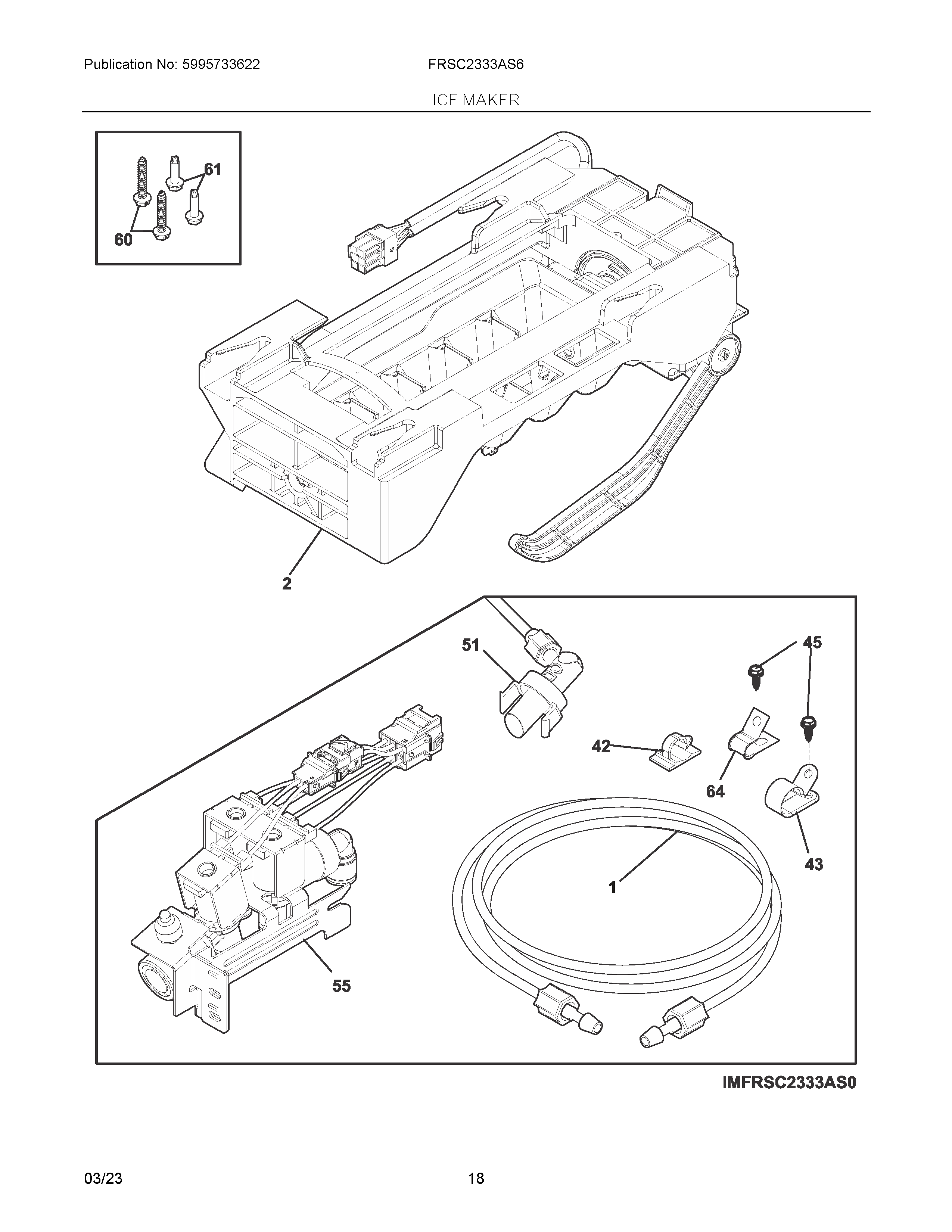

FRSC2333AS6 10 – ICE MAKER

Products

Position	Product
NI	242200102 Frigidaire Refrigerator Clip
NIA	218976421 Frigidaire Refrigerator Water Inlet Tube
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NI	241806601 Frigidaire Refrigerator Water Connector
NIC	242220119 Frigidaire Refrigerator Water Tube
NIB	218976822 Frigidaire Refrigerator Water Tube
NID	242220126 Frigidaire Refrigerator Tube
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NI	240396801 Frigidaire Refrigerator Tube Clamp
1	218976438 Frigidaire Refrigerator Tube
2	243297613 Frigidaire Refrigerator Ice Maker
42	218515401 Frigidaire Refrigerator Clip
43	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
45	5308000039 Frigidaire Refrigerator Screw
51	241850619 Frigidaire Refrigerator Tube Assembly
55	WATER VALVE, TRIPE SOLENOID
60	5304455852 Frigidaire Refrigerator Screw
61	241853202 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
