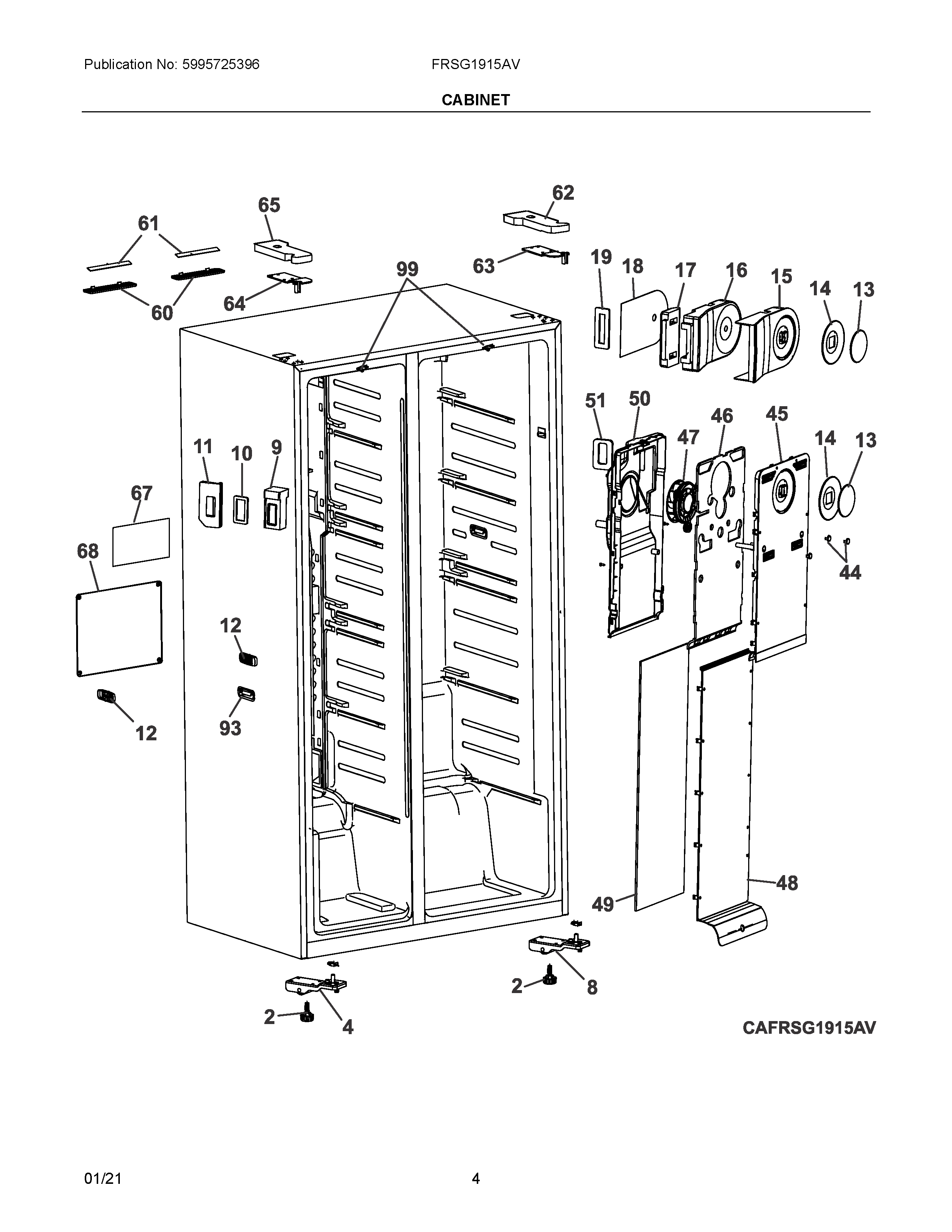

FRSG1915AV 03 – CABINET

FRSG1915AV 03 – CABINET

Written by

in

FRSG1915AV 03 – CABINET

Products

PositionProduct
NI5304525389 Frigidaire Refrigerator Ice Maker
NI5304525359 Frigidaire Cover
25304525322 Frigidaire Foot
4HINGE ASSEMBLY, DOOR, LOWER LH
85304533205 Frigidaire Refrigerator Hinge Assembly
95304525327 Frigidaire Refrigerator Damper
105304525328 Frigidaire Seal
115304525329 Frigidaire Insulation
12COVER, TEMP THERMOSTAT
13COVER, AIR DEFLECTOR
145304533211 Frigidaire Deflector
155304525333 Frigidaire Refrigerator Cover
16INSULATION, AIR DUCT, FRESH FOOD, FRONT
17INSULATION, AIR DUCT, FRESH FOOD, REAR
18COVER, AIR DUCT, FRESH FOOD, BACK
19SEAL, AIR DUCT, FRESH FOOD
44CAP, SCREW
45COIL COVER, FREEZER, UPPER
46INSULATION, COIL COVER, UPPER
475304533212 Frigidaire Refrigerator Fan Motor
485304525355 Frigidaire Refrigerator Coil Cover
495304525356 Frigidaire Refrigerator Insulation
50HOUSING, AIR DUCT, FREEZER
51SEAL, AIR DUCT, FREEZER
605304525360 Frigidaire Lens
615304525361 Frigidaire Refrigerator PCB Board
62COVER, HINGE, UPPER RH
635304525363 Frigidaire Hinge
64HINGE, DOOR, UPPER LH
65COVER, HINGE, UPPER LH
675304532651 Frigidaire Refrigerator PCB Board
685304533213 Frigidaire Cover
935304525383 Frigidaire Refrigerator Sensor
995304525387 Frigidaire Switch Assembly
