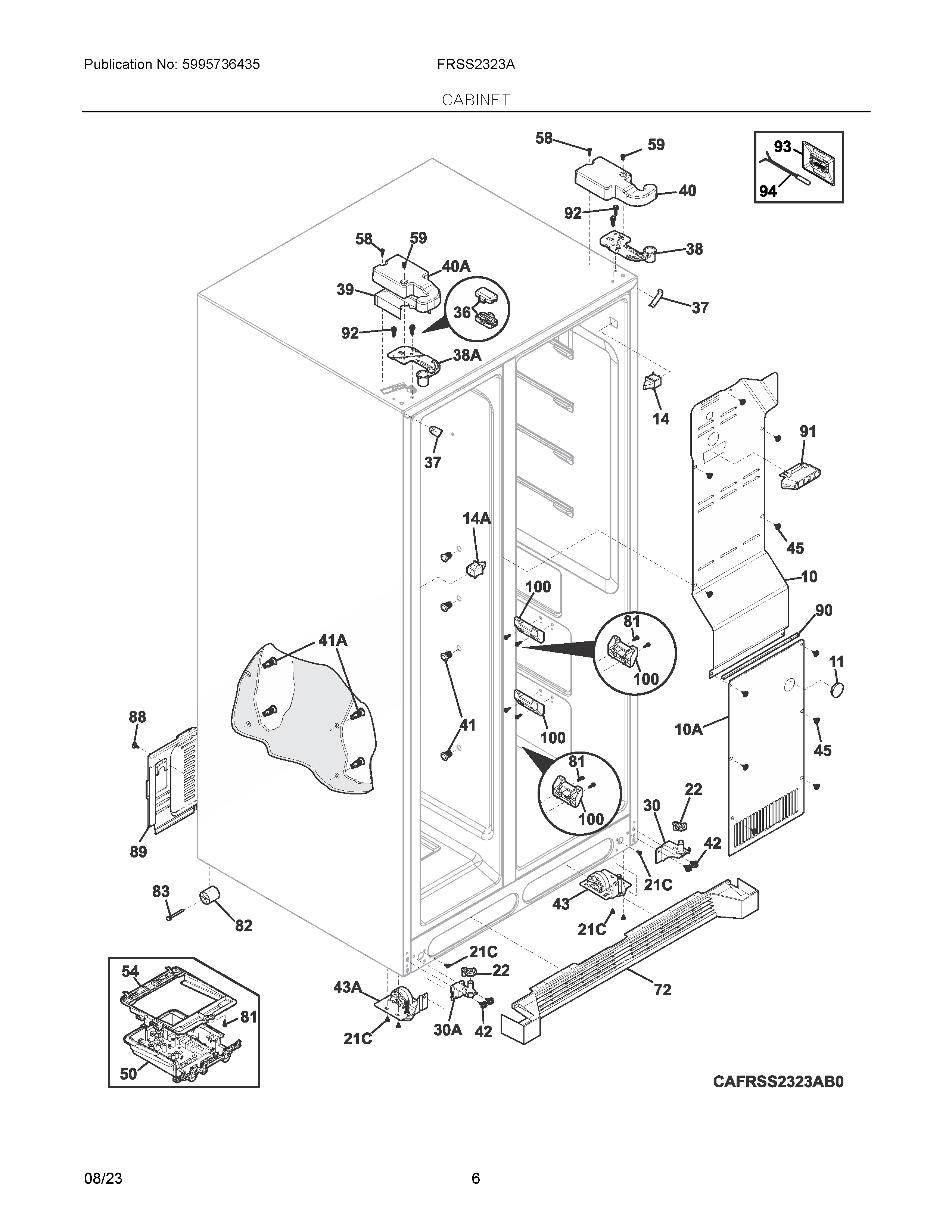

FRSS2323AB5 04 – CABINET

FRSS2323AB5 04 – CABINET

Written by

in

FRSS2323AB5 04 – CABINET

Products

Position	Product
NI	WCI 5304516721
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
10A	241719710 Frigidaire Refrigerator Cover-Evaporator
10	240435911 Frigidaire Refrigerator Cover
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
14	240505804 Frigidaire Refrigerator Switch
21C	218252201 Frigidaire Refrigerator Screw
22	5303918892 Frigidaire Refrigerator Bushing Kit Door
30A	5304532614 Frigidaire Refrigerator Hinge Assembly
30	5304532613 Frigidaire Refrigerator Hinge Assembly
36	5304526079 Frigidaire Refrigerator Cover
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38A	5304525958 Frigidaire Refrigerator Bracket
38	5304525957 Frigidaire Refrigerator Bracket
39	Shield, hinge cover, LH upper, freezer
40A	5304526126 Frigidaire Cover
40	5304526125 Frigidaire Refrigerator Cover Assembly
41	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304525901 Frigidaire Refrigerator Roller Assembly
43A	5304525902 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304527318 Frigidaire Refrigerator Power Board
54	807854301 Frigidaire Refrigerator Support
58	218781101 Frigidaire Handle Screw
59	241548003 Frigidaire Refrigerator Screw
72	5304527152 Frigidaire Kickplate Grille
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
88	241500305 Frigidaire Refrigerator Screw
89	5304521676 Frigidaire Cover Assembly
90	218249808 Frigidaire Refrigerator Seal-Coil Cover
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
93	5304508041 Frigidaire Refrigerator Cover
94	5303918775 Frigidaire Refrigerator Thermistor
100	5304525909 Frigidaire Refrigerator Support
