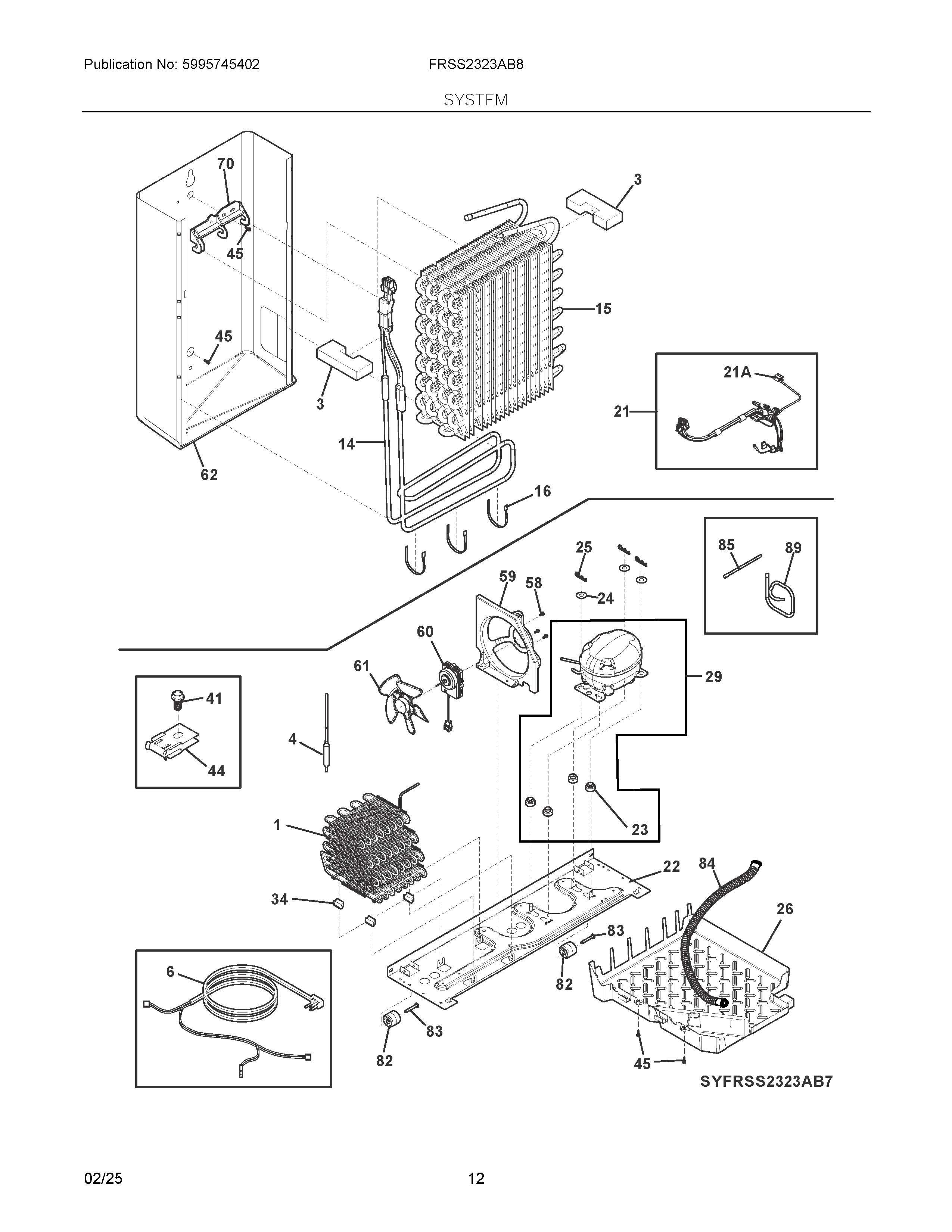

FRSS2323AB8 07 – SYSTEM

FRSS2323AB8 07 – SYSTEM

Written by

in

FRSS2323AB8 07 – SYSTEM

Products

Position	Product
NI	241500305 Frigidaire Refrigerator Screw
NIA	HARNESS-WIRING, MACHINE COMPT
NIA	5304526071 Frigidaire Refrigerator Connector
NI	5304527119 Frigidaire Screw
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	218515401 Frigidaire Refrigerator Clip
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240521303 Frigidaire Refrigerator Screw
1	5304527094 Frigidaire Refrigerator Condenser
3	218679613 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	5304526032 Frigidaire Refrigerator Heater
15	5303918286 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21A	5303918645 Frigidaire Refrigerator Thermistor Kit
21	5304534557 Frigidaire Harness Assembly
22	BASE, COMPRESSOR
23	5304523829 Frigidaire Refrigerator Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697603 Frigidaire Defrost Pan
29	5304534515 Frigidaire Compressor
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5304456288 Frigidaire Refrigerator Clamp
45	5304455650 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59	5304534556 Frigidaire Shroud
60	5304534504 Frigidaire Motor Assembly
61	242219302 Frigidaire Refrigerator Evaporator Fan Blade
62	5304527024 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
85	5304530251 Frigidaire Tube Assembly
89	215346903 Frigidaire Tube-Process
