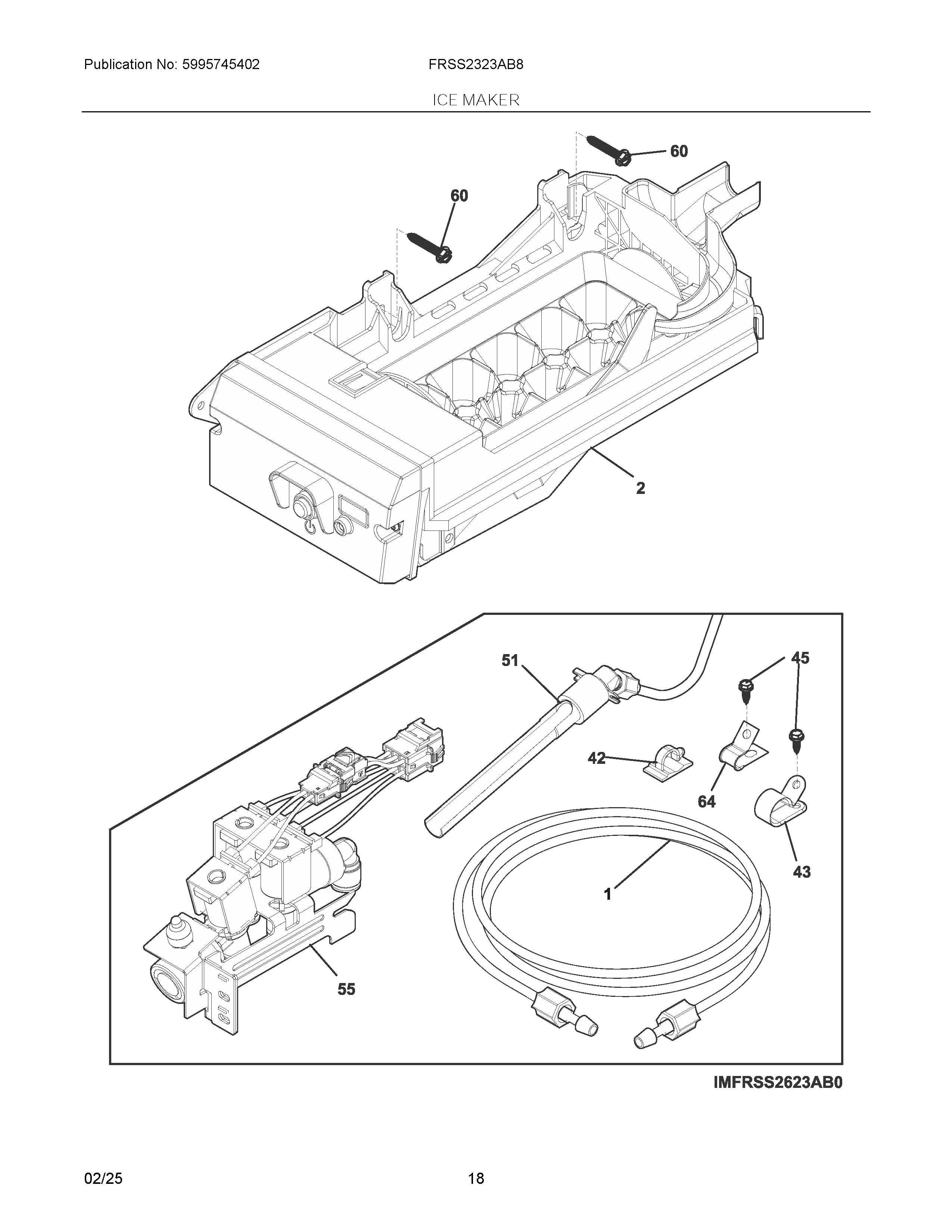

FRSS2323AB8 10 – ICE MAKER

FRSS2323AB8 10 – ICE MAKER

Written by

in

FRSS2323AB8 10 – ICE MAKER

Products

PositionProduct
NIA5304453707 Frigidaire Oven Screw
NIC242220134 Frigidaire Refrigerator Tube
NI242200102 Frigidaire Refrigerator Clip
NIB240363602 Frigidaire Refrigerator Shoulder Screw
NI241806601 Frigidaire Refrigerator Water Connector
NIBTUBE,WATER,87.6",BROWN/TAN,VAL
NI5304525991 Frigidaire Refrigerator Harness
NIA218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
1218976447 Frigidaire Refrigerator Tube
2ICE MAKER
42218515401 Frigidaire Refrigerator Clip
43CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
455308000039 Frigidaire Refrigerator Screw
51241850624 Frigidaire Assembly Tube
55WATER VALVE, TRIPE SOLENOID
605304455852 Frigidaire Refrigerator Screw
645304455846 Frigidaire Refrigerator Clamp
