FRSS2323AD8 13 – SYSTEM

FRSS2323AD8 13 – SYSTEM

Written by

in

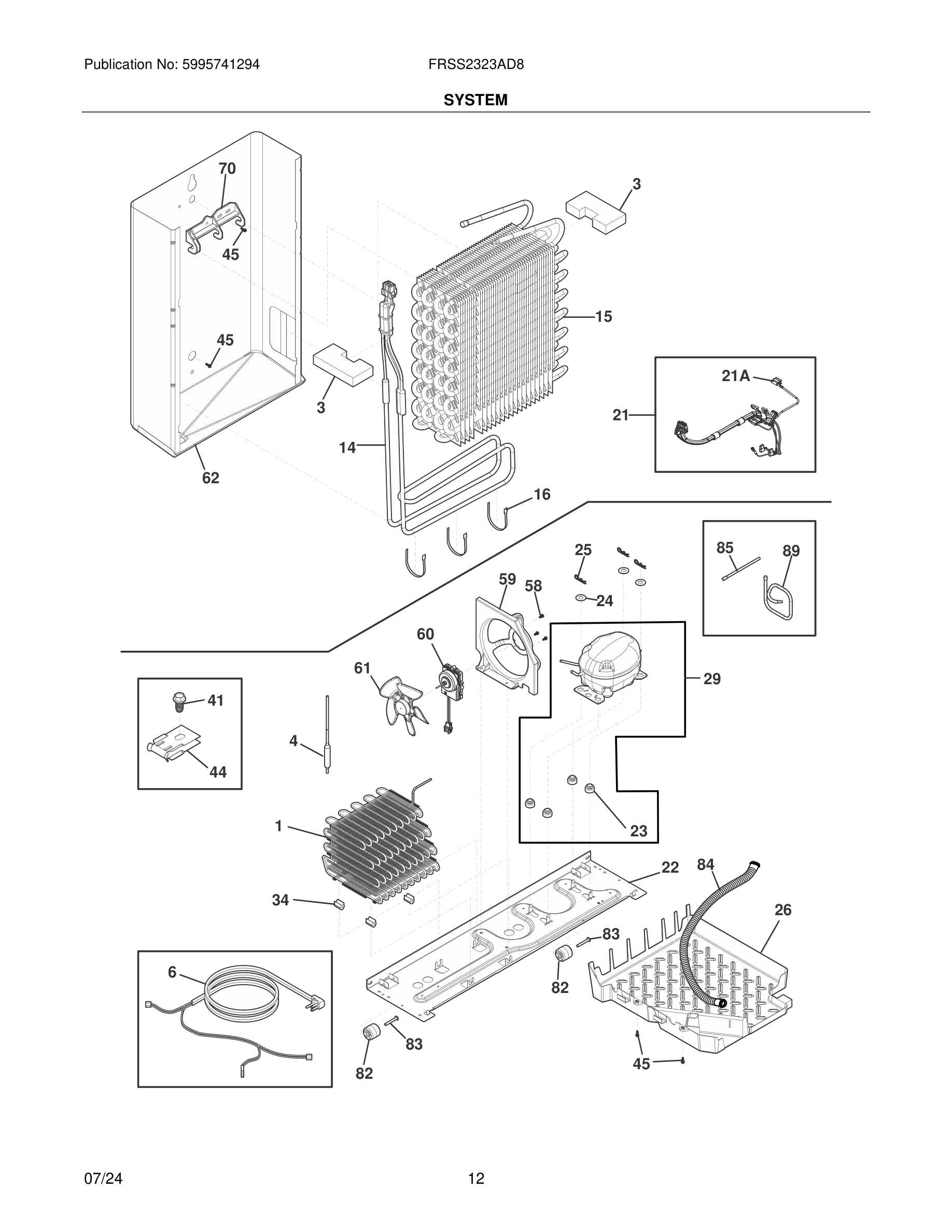

FRSS2323AD8 13 – SYSTEM

Products

PositionProduct
*241500305 Frigidaire Refrigerator Screw
*5304527119 Frigidaire Screw
*218515401 Frigidaire Refrigerator Clip
*218709101 Frigidaire Refrigerator Handle Mounting Screw
*240451503 Frigidaire Refrigerator Screw
*#5304525986 Frigidaire Refrigerator Harness
1#5304527094 Frigidaire Refrigerator Condenser
3218679613 Frigidaire Refrigerator Evaporator Coil Block
4#5303305677 Frigidaire Replacement Filter Dryer Filters
6#241516904 Frigidaire Refrigerator Service Cord
14#5304526032 Frigidaire Refrigerator Heater
15#5303918286 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21#5304534557 Frigidaire Harness Assembly
21A#5303918645 Frigidaire Refrigerator Thermistor Kit
22BASE, COMPRESSOR
235304523829 Frigidaire Refrigerator Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697603 Frigidaire Defrost Pan
29#5304534515 Frigidaire Compressor
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445304456288 Frigidaire Refrigerator Clamp
455304455650 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
595304534556 Frigidaire Shroud
59*240346701 Frigidaire Refrigerator Foam Seal Tape
59*240359403 Frigidaire Refrigerator Fan Shroud Screw
60#5304534504 Frigidaire Motor Assembly
61242219302 Frigidaire Refrigerator Evaporator Fan Blade
625304527024 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
84*242036801 Frigidaire Refrigerator Plastic Clip
85#5304530251 Frigidaire Tube Assembly
89215346903 Frigidaire Tube-Process
89*5304526071 Frigidaire Refrigerator Connector
