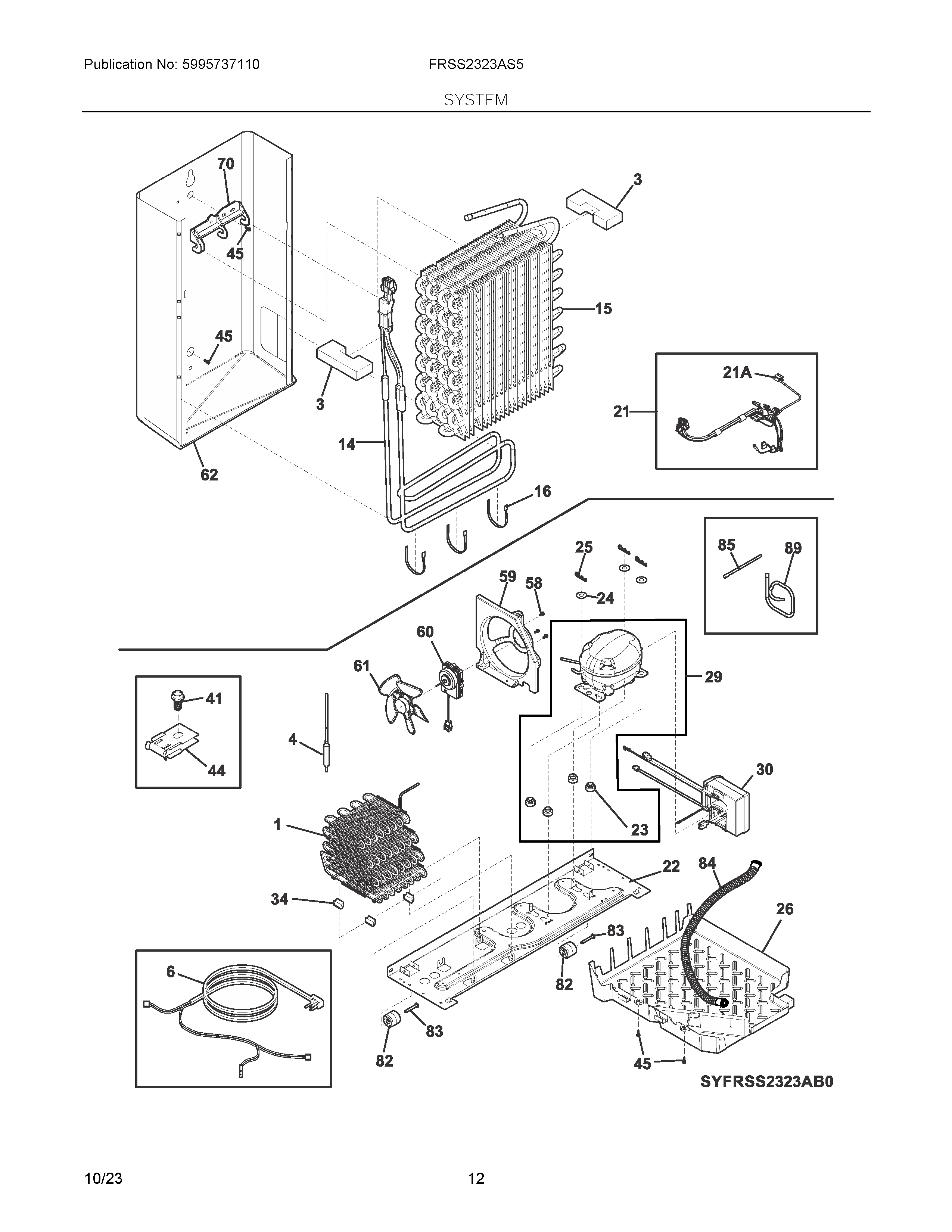

FRSS2323AS5 07 – SYSTEM

FRSS2323AS5 07 – SYSTEM

Written by

in

FRSS2323AS5 07 – SYSTEM

Products

PositionProduct
NI241500305 Frigidaire Refrigerator Screw
NI218515401 Frigidaire Refrigerator Clip
NIB240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA240346701 Frigidaire Refrigerator Foam Seal Tape
NIA242036801 Frigidaire Refrigerator Plastic Clip
NI5304527119 Frigidaire Screw
NI240521303 Frigidaire Refrigerator Screw
NI218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA5304525986 Frigidaire Refrigerator Harness
NIA5304526071 Frigidaire Refrigerator Connector
15304527094 Frigidaire Refrigerator Condenser
3218679613 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6241516904 Frigidaire Refrigerator Service Cord
145304526032 Frigidaire Refrigerator Heater
155303918286 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21A5303918645 Frigidaire Refrigerator Thermistor Kit
215304525990 Frigidaire Refrigerator Assembly Harness
22BASE, COMPRESSOR
235304523829 Frigidaire Refrigerator Grommet
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697603 Frigidaire Defrost Pan
295304532179 Frigidaire Compressor
305304532190 Frigidaire Refrigerator Inverter
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445304456288 Frigidaire Refrigerator Clamp
45241500303 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
60242018303 Frigidaire Refrigerator Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84241830905 Frigidaire Lower Drain Tube
855304530251 Frigidaire Tube Assembly
89215346903 Frigidaire Tube-Process
