FRSS2323AS9 13 – SYSTEM

FRSS2323AS9 13 – SYSTEM

Written by

in

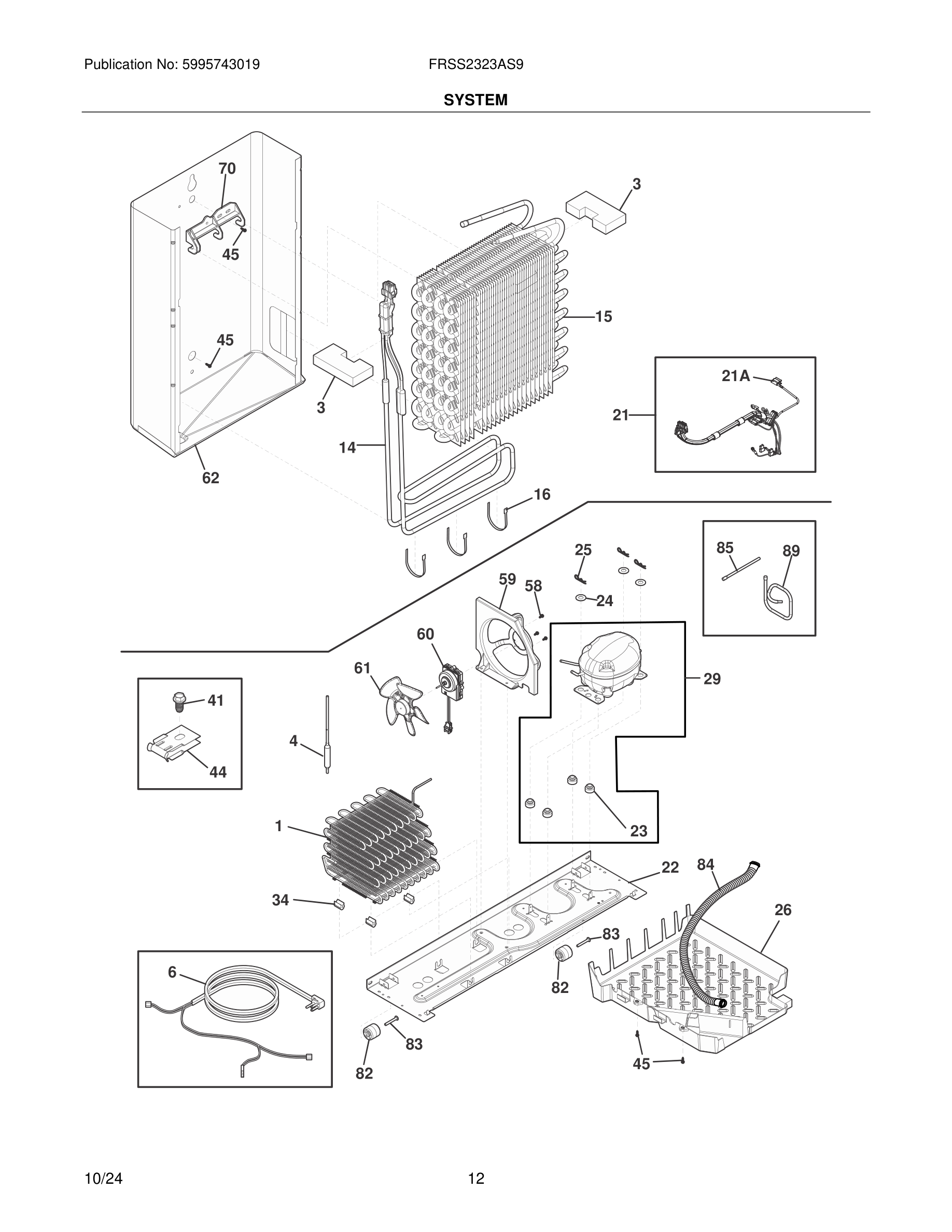

FRSS2323AS9 13 – SYSTEM

Products

Position	Product
*	218515401 Frigidaire Refrigerator Clip
*	241500305 Frigidaire Refrigerator Screw
*	240521303 Frigidaire Refrigerator Screw
*	5304527119 Frigidaire Screw
*	218709101 Frigidaire Refrigerator Handle Mounting Screw
1#	5304527094 Frigidaire Refrigerator Condenser
3	218679613 Frigidaire Refrigerator Evaporator Coil Block
4#	5303305677 Frigidaire Replacement Filter Dryer Filters
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6*#	Harness, wiring, 6 #, machine compt.
6#	241516904 Frigidaire Refrigerator Service Cord
14#	5304526032 Frigidaire Refrigerator Heater
15#	5303918286 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21#	5304534557 Frigidaire Harness Assembly
21A#	5303918645 Frigidaire Refrigerator Thermistor Kit
21C	218252201 Frigidaire Refrigerator Screw
22	BASE, COMPRESSOR
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697603 Frigidaire Defrost Pan
29#	5304534515 Frigidaire Compressor
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5304456288 Frigidaire Refrigerator Clamp
45	241500303 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59	5304534556 Frigidaire Shroud
59*	240346701 Frigidaire Refrigerator Foam Seal Tape
59*	240359403 Frigidaire Refrigerator Fan Shroud Screw
60#	5304534504 Frigidaire Motor Assembly
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304527024 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
84*	242036801 Frigidaire Refrigerator Plastic Clip
85#	5304530251 Frigidaire Tube Assembly
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
89	215346903 Frigidaire Tube-Process
89*	5304526071 Frigidaire Refrigerator Connector
