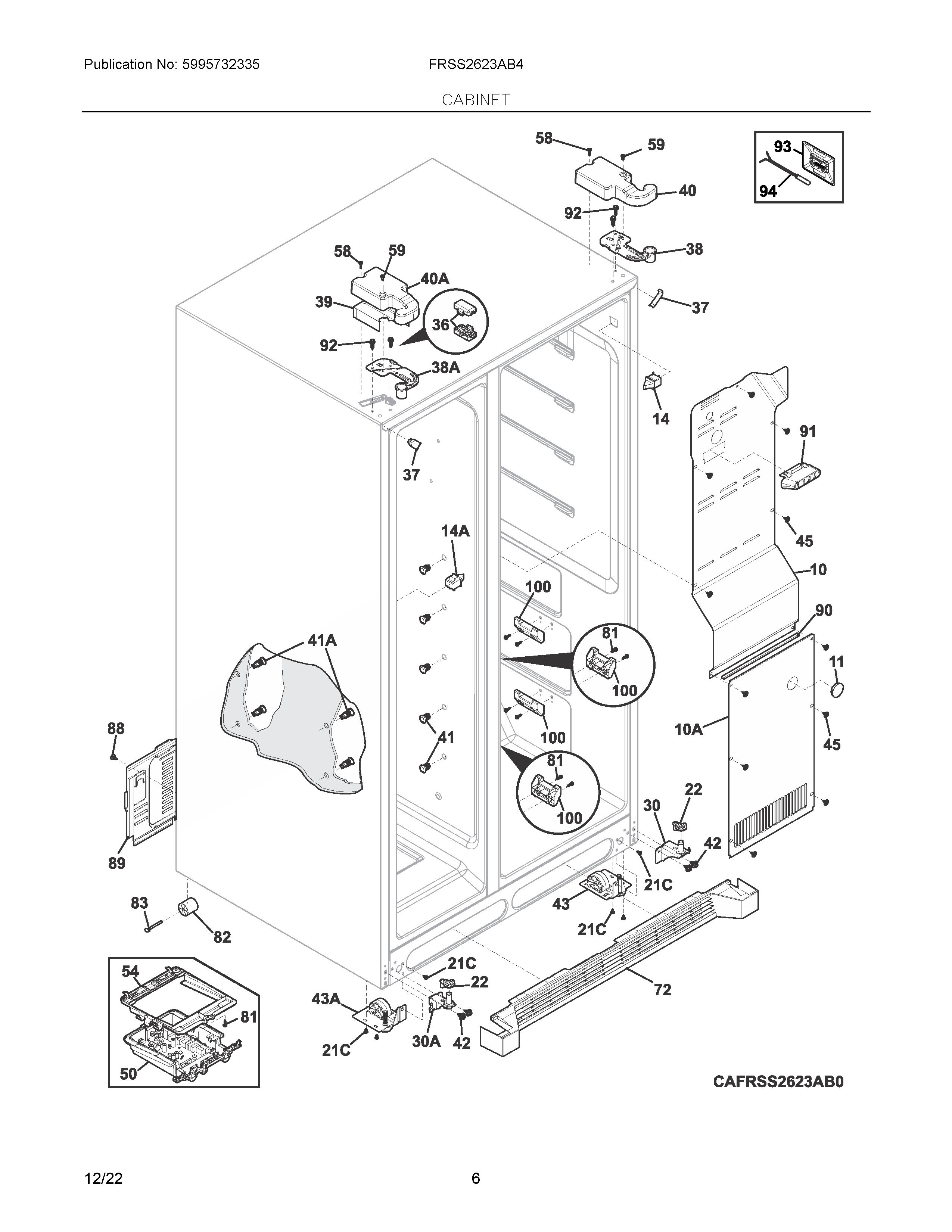

FRSS2623AB4 04 – CABINET

Products

Position	Product
NI	5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NI	240396801 Frigidaire Refrigerator Tube Clamp
10A	808217502 Frigidaire Evaporator Coil Cover
10	240435912 Frigidaire Refrigerator Cover-Air Duct
11	5303208309 Frigidaire Refrigerator Plug Hole
14A	241547902 Frigidaire Refrigerator Light Switch
14	240505804 Frigidaire Refrigerator Switch
21C	218252201 Frigidaire Refrigerator Screw
22	5303918892 Frigidaire Refrigerator Bushing Kit Door
30	5304532613 Frigidaire Refrigerator Hinge Assembly
30A	5304532614 Frigidaire Refrigerator Hinge Assembly
36	5304526079 Frigidaire Refrigerator Cover
37	5304519617 Frigidaire Refrigerator Cabinet Corner Trim
38A	5304525958 Frigidaire Refrigerator Bracket
38	5304525957 Frigidaire Refrigerator Bracket
39	Shield, hinge cover, LH upper, freezer
40A	5304526126 Frigidaire Cover
40	5304526125 Frigidaire Refrigerator Cover Assembly
41A	241550801 Frigidaire Refrigerator Shelf Mounting Grommet
41	241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
42	240578902 Frigidaire Screw Mounting Hinge
43	5304525901 Frigidaire Refrigerator Roller Assembly
43A	5304525902 Frigidaire Refrigerator Roller Assembly
45	5304455650 Frigidaire Refrigerator Screw
50	5304532180 Frigidaire Refrigerator Power Board
54	807854301 Frigidaire Refrigerator Support
58	218781101 Frigidaire Handle Screw
59	241548003 Frigidaire Refrigerator Screw
72	5304537063 Frigidaire Grille/Kickplate
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
88	241500305 Frigidaire Refrigerator Screw
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	218249810 Frigidaire Coil Seal
91	240380101 Frigidaire Refrigerator Ice Maker Duct
92	241710601 Frigidaire Refrigerator Screw
93	5304508041 Frigidaire Refrigerator Cover
94	5303918775 Frigidaire Refrigerator Thermistor
100	5304525909 Frigidaire Refrigerator Support
