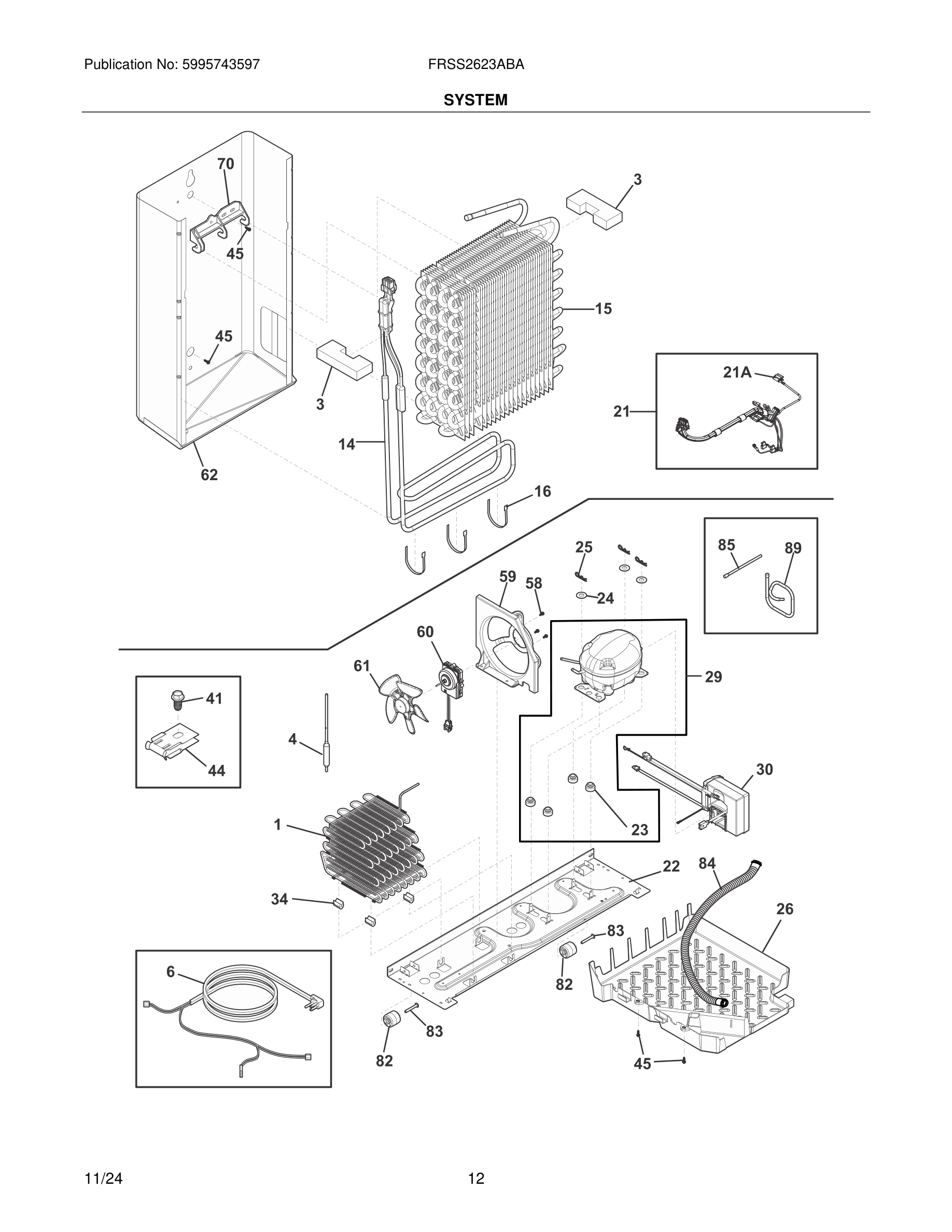

FRSS2623ABA 13 – SYSTEM

FRSS2623ABA 13 – SYSTEM

Written by

in

FRSS2623ABA 13 – SYSTEM

Products

Position	Product
*	241500305 Frigidaire Refrigerator Screw
*	218709101 Frigidaire Refrigerator Handle Mounting Screw
*	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
*	240521303 Frigidaire Refrigerator Screw
1#	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4#	5303305677 Frigidaire Replacement Filter Dryer Filters
6#	241516904 Frigidaire Refrigerator Service Cord
6*#	5304525986 Frigidaire Refrigerator Harness
14#	5304526032 Frigidaire Refrigerator Heater
15#	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21#	5304525990 Frigidaire Refrigerator Assembly Harness
21A#	S/A-EVAP FAN & SHROUD
22	5304526006 Frigidaire Base
23	5304523829 Frigidaire Refrigerator Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697603 Frigidaire Defrost Pan
29#	5304532179 Frigidaire Compressor
30#	5304532190 Frigidaire Refrigerator Inverter
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5304456288 Frigidaire Refrigerator Clamp
45	241500303 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59*	240359403 Frigidaire Refrigerator Fan Shroud Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
59*	240346701 Frigidaire Refrigerator Foam Seal Tape
60#	5304531260 Frigidaire Refrigerator Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304526003 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
84*	242036801 Frigidaire Refrigerator Plastic Clip
85#	5304530251 Frigidaire Tube Assembly
89*	5304526071 Frigidaire Refrigerator Connector
89#	215346903 Frigidaire Tube-Process
