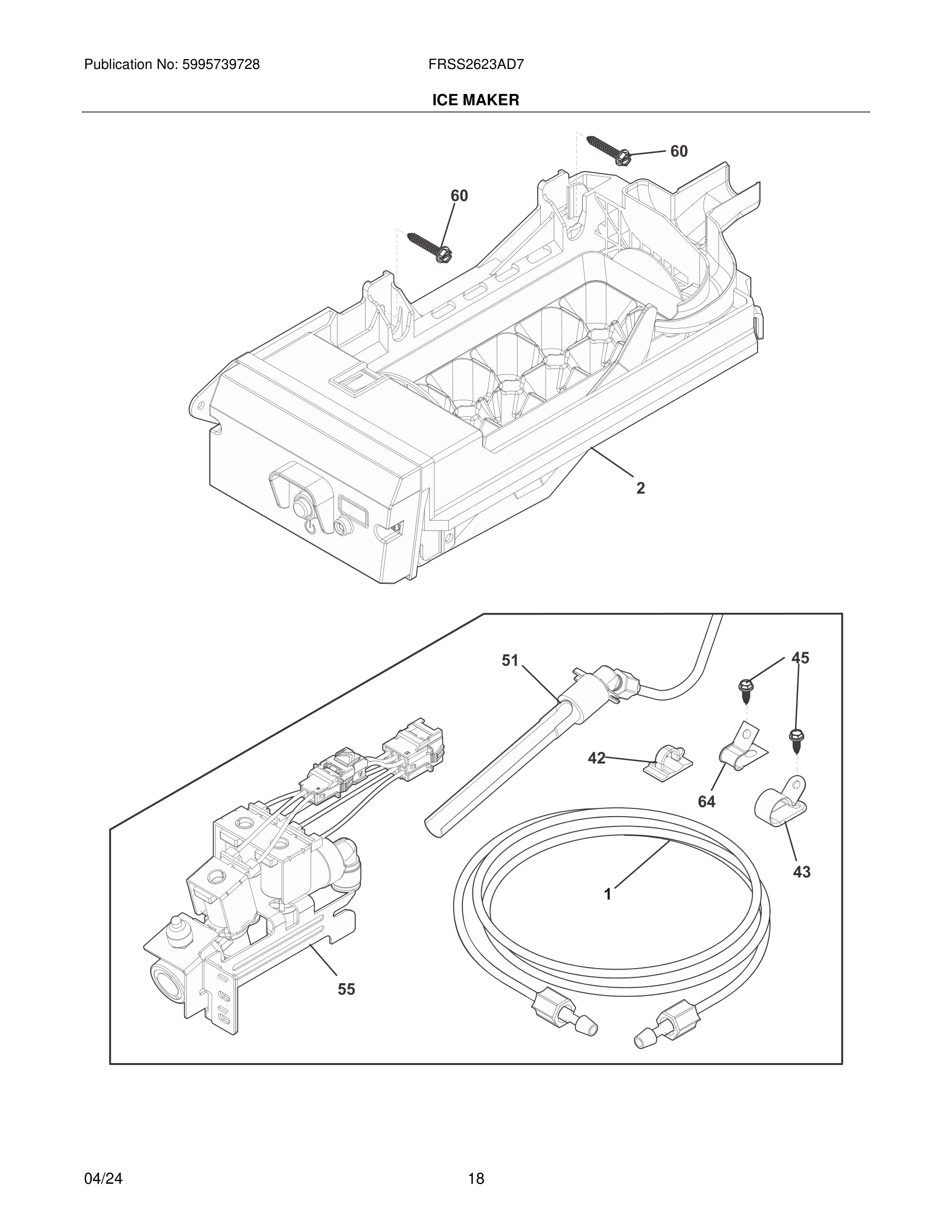

FRSS2623AD7 19 – ICE MAKER

Products

Position	Product
*	242200102 Frigidaire Refrigerator Clip
*#	5304525991 Frigidaire Refrigerator Harness
*	241806601 Frigidaire Refrigerator Water Connector
1*#	218976439 Frigidaire Refrigerator Water Inlet Tube
1*#	242220126 Frigidaire Refrigerator Tube
1*#	242220119 Frigidaire Refrigerator Water Tube
1#	218976447 Frigidaire Refrigerator Tube
2	5304532555 Frigidaire Refrigerator Ice Maker
42	218515401 Frigidaire Refrigerator Clip
43	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
45	241500303 Frigidaire Refrigerator Screw
51#	241850624 Frigidaire Assembly Tube
55#	WATER VALVE, TRIPE SOLENOID
55*	240363602 Frigidaire Refrigerator Shoulder Screw
55*	218709101 Frigidaire Refrigerator Handle Mounting Screw
60	5304455852 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
