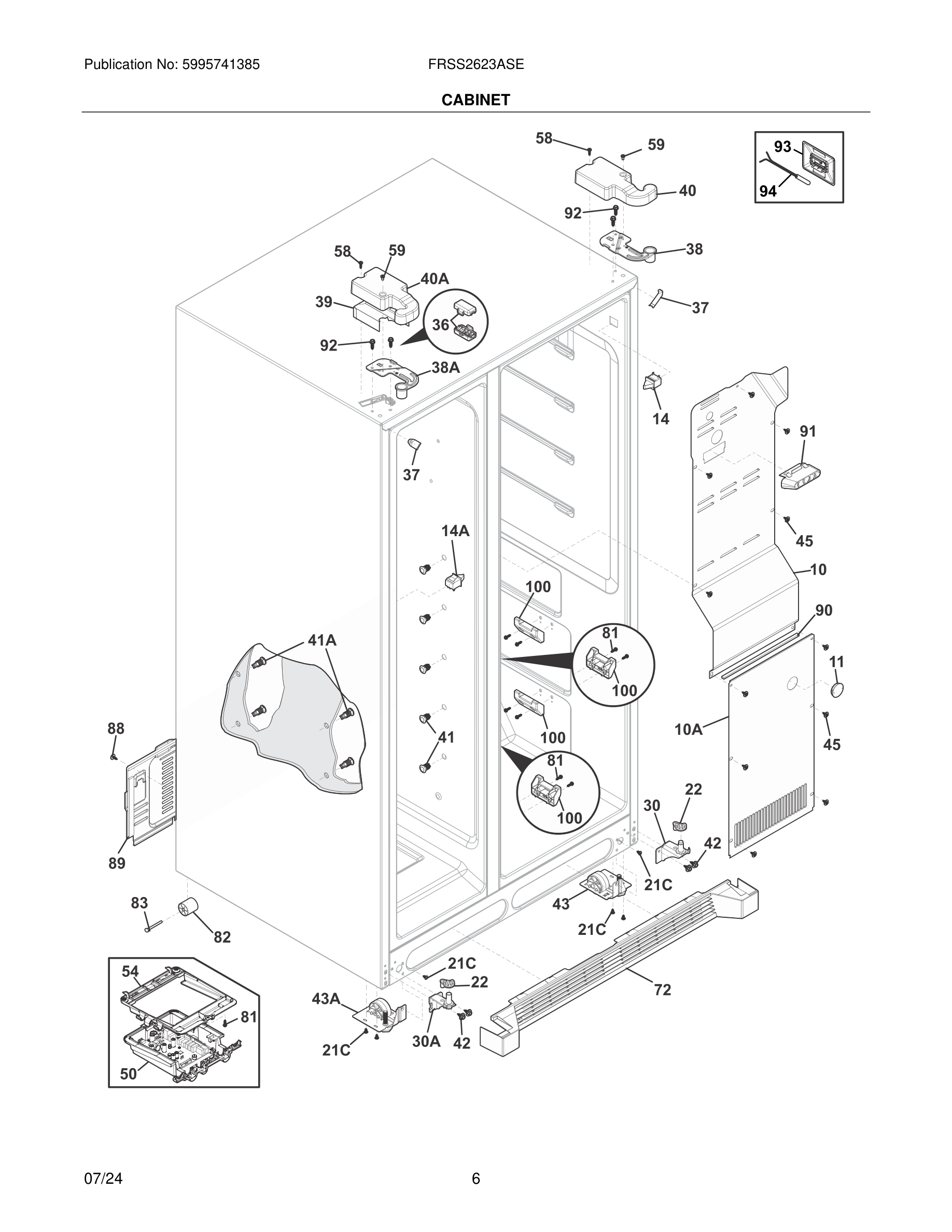

FRSS2623ASE 07 – CABINET

FRSS2623ASE 07 – CABINET

Written by

in

FRSS2623ASE 07 – CABINET

Products

PositionProduct
*CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10ACover-evap coil, lower
10240435912 Frigidaire Refrigerator Cover-Air Duct
115303208309 Frigidaire Refrigerator Plug Hole
14A#241547902 Frigidaire Refrigerator Light Switch
14#240505804 Frigidaire Refrigerator Switch
21C218252201 Frigidaire Refrigerator Screw
225303918892 Frigidaire Refrigerator Bushing Kit Door
305304532613 Frigidaire Refrigerator Hinge Assembly
30A5304532614 Frigidaire Refrigerator Hinge Assembly
365304526079 Frigidaire Refrigerator Cover
375304519618 Frigidaire Refrigerator Cabinet Corner Trim
385304525957 Frigidaire Refrigerator Bracket
38A5304525958 Frigidaire Refrigerator Bracket
39Shield, hinge cover, LH upper, freezer
405304525959 Frigidaire Refrigerator Cover
40A5304525960 Frigidaire Refrigerator Cover
41241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
41A241550801 Frigidaire Refrigerator Shelf Mounting Grommet
42240578902 Frigidaire Screw Mounting Hinge
43A5304525902 Frigidaire Refrigerator Roller Assembly
435304525901 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
50#5304532180 Frigidaire Refrigerator Power Board
54SUPPORT, HOUSING, MAIN BOARD
58241853202 Frigidaire Refrigerator Screw
59134154100 Frigidaire Screw 10-32 x 0.375 Co
725304537061 Frigidaire Grill
815304455650 Frigidaire Refrigerator Screw
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
88241500305 Frigidaire Refrigerator Screw
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
935304508041 Frigidaire Refrigerator Cover
94#5303918775 Frigidaire Refrigerator Thermistor
1005304525909 Frigidaire Refrigerator Support
