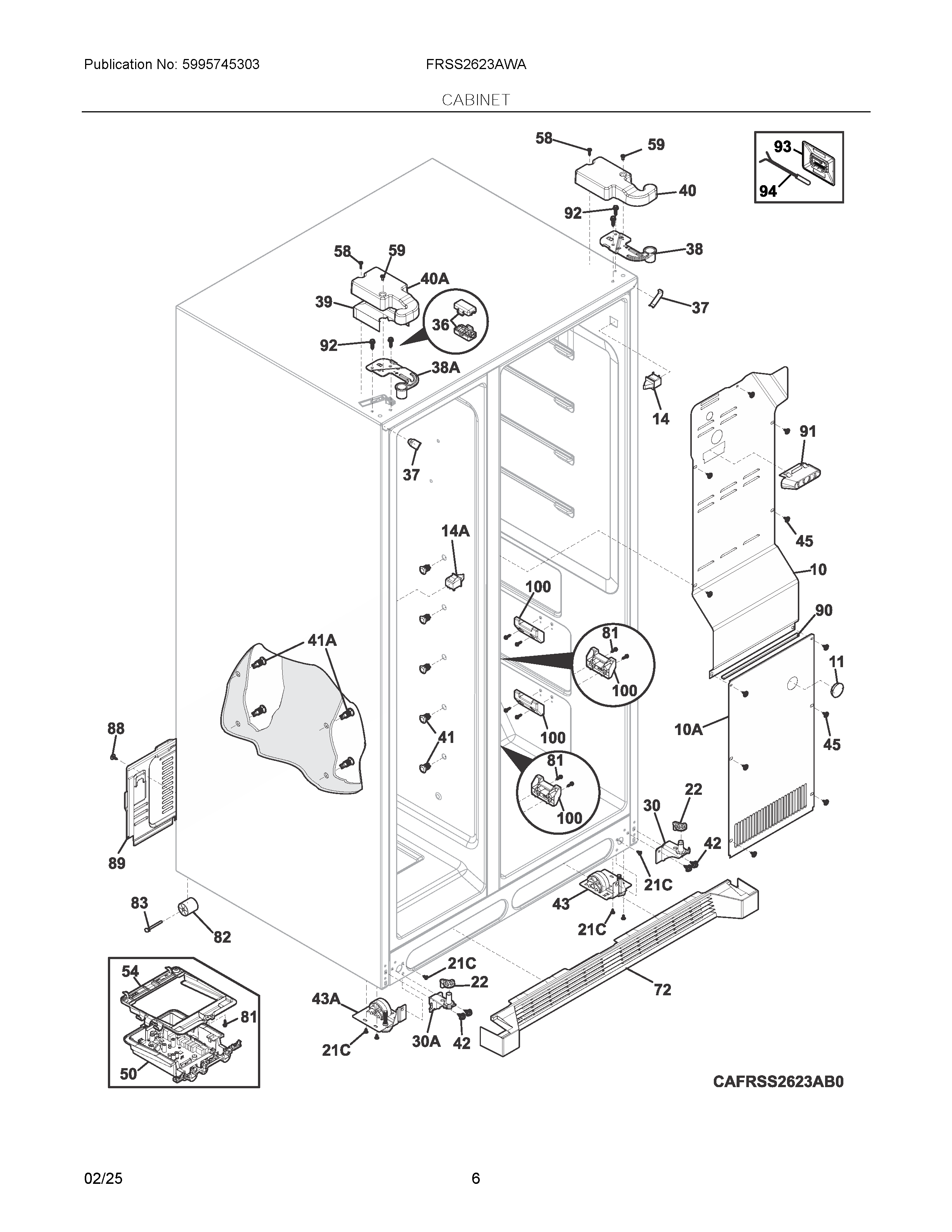

FRSS2623AWA 04 – CABINET

FRSS2623AWA 04 – CABINET

Written by

in

FRSS2623AWA 04 – CABINET

Products

PositionProduct
NI240494001 Frigidaire Refrigerator Plug Button
NI5303321319 Frigidaire Refrigerator White Touch Up Paint
NICLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
10240435912 Frigidaire Refrigerator Cover-Air Duct
10ACover-evap coil, lower
115303208309 Frigidaire Refrigerator Plug Hole
14240505804 Frigidaire Refrigerator Switch
14A241547902 Frigidaire Refrigerator Light Switch
21C218252201 Frigidaire Refrigerator Screw
22Plate, strike, black
305304532613 Frigidaire Refrigerator Hinge Assembly
30A5304532614 Frigidaire Refrigerator Hinge Assembly
365304526079 Frigidaire Refrigerator Cover
375304519616 Frigidaire Refrigerator Trim-Cabinet Corner
385304525957 Frigidaire Refrigerator Bracket
38A5304525958 Frigidaire Refrigerator Bracket
39Shield, hinge cover, LH upper, freezer
40A5304526124 Frigidaire Refrigerator Cover
405304526123 Frigidaire Refrigerator Cover
41A241550801 Frigidaire Refrigerator Shelf Mounting Grommet
41241550701 Frigidaire Refrigerator Grommet-Shelf Mtg
42240578902 Frigidaire Screw Mounting Hinge
435304525901 Frigidaire Refrigerator Roller Assembly
43A5304525902 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
505304532180 Frigidaire Refrigerator Power Board
54SUPPORT, HOUSING, MAIN BOARD
58241853202 Frigidaire Refrigerator Screw
59241548003 Frigidaire Refrigerator Screw
72GRILLE-LOWER FRONT WHITE
81134154100 Frigidaire Screw 10-32 x 0.375 Co
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
88241500305 Frigidaire Refrigerator Screw
895304520905 Frigidaire Assembly Cover Refrigerator
90218249808 Frigidaire Refrigerator Seal-Coil Cover
91240380101 Frigidaire Refrigerator Ice Maker Duct
92241710601 Frigidaire Refrigerator Screw
935304508041 Frigidaire Refrigerator Cover
945303918775 Frigidaire Refrigerator Thermistor
1005304525909 Frigidaire Refrigerator Support
101242157801 Frigidaire Refrigerator Cover
