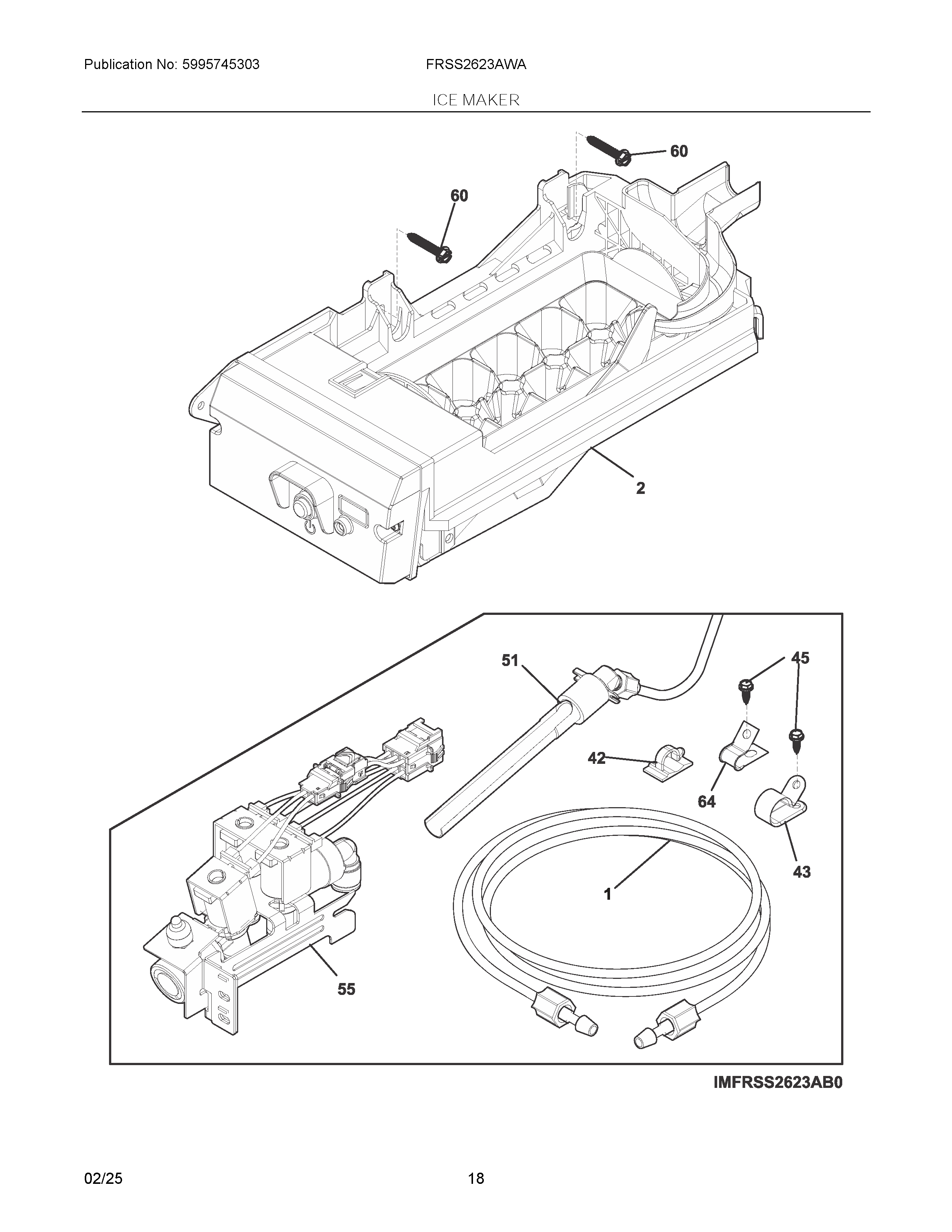

FRSS2623AWA 10 – ICE MAKER

Products

Position	Product
NIA	5304453707 Frigidaire Oven Screw
NI	242200102 Frigidaire Refrigerator Clip
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
NI	241806601 Frigidaire Refrigerator Water Connector
NIB	242220119 Frigidaire Refrigerator Water Tube
NIC	242220126 Frigidaire Refrigerator Tube
NI	5304525991 Frigidaire Refrigerator Harness
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIA	218976439 Frigidaire Refrigerator Water Inlet Tube
1	218976447 Frigidaire Refrigerator Tube
2	ICE MAKER
42	218515401 Frigidaire Refrigerator Clip
43	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
45	5308000039 Frigidaire Refrigerator Screw
51	241850624 Frigidaire Assembly Tube
55	WATER VALVE, TRIPE SOLENOID
60	5304455852 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
