Aparts

FRSS26L3AF9 13 – SYSTEM

FRSS26L3AF9 13 – SYSTEM

Written by

in

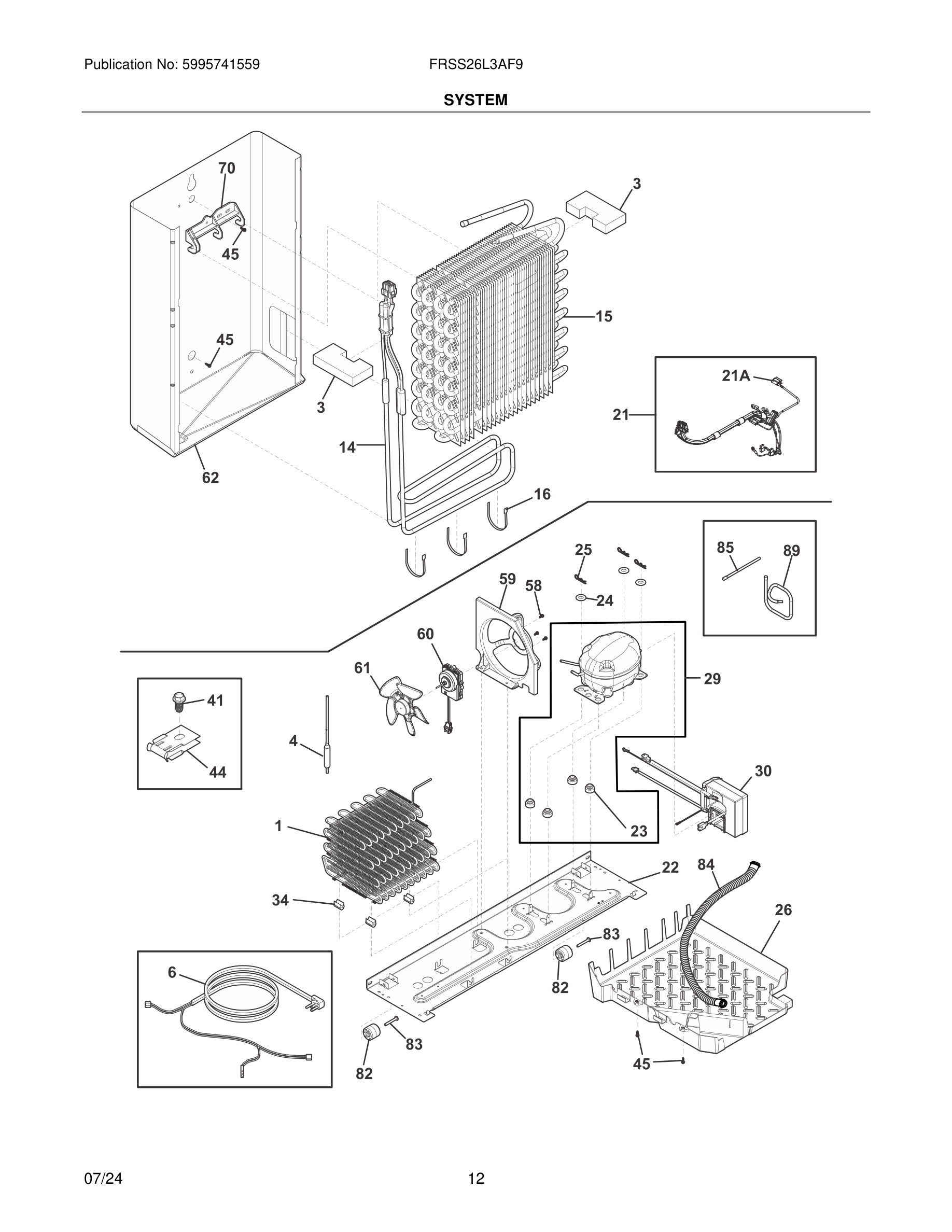

FRSS26L3AF9 13 – SYSTEM

Products

PositionProduct
*241500305 Frigidaire Refrigerator Screw
*218709101 Frigidaire Refrigerator Handle Mounting Screw
*218515401 Frigidaire Refrigerator Clip
*5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
*240521303 Frigidaire Refrigerator Screw
*240451503 Frigidaire Refrigerator Screw
*5304527119 Frigidaire Screw
1#5304526057 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
4#5303305677 Frigidaire Replacement Filter Dryer Filters
6*#5304525986 Frigidaire Refrigerator Harness
6#241516904 Frigidaire Refrigerator Service Cord
14#5304526032 Frigidaire Refrigerator Heater
15#5303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21#5304525990 Frigidaire Refrigerator Assembly Harness
21A#5303918645 Frigidaire Refrigerator Thermistor Kit
225304526006 Frigidaire Base
23GROMMET, CMPRSR MTG, 23
24241812301 Frigidaire Refrigerator Compressor Mount Washer
25242037702 Frigidaire Refrigerator Spring Clip
26241697603 Frigidaire Defrost Pan
29#5304532179 Frigidaire Compressor
30#5304532190 Frigidaire Refrigerator Inverter
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445304456288 Frigidaire Refrigerator Clamp
45241500303 Frigidaire Refrigerator Screw
58240569202 Frigidaire Refrigerator Screw
59241946106 Frigidaire Refrigerator Shroud-Cond Fan
59*240346701 Frigidaire Refrigerator Foam Seal Tape
59*240359403 Frigidaire Refrigerator Fan Shroud Screw
60#5304531260 Frigidaire Refrigerator Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
625304526003 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82240335202 Frigidaire Refrigerator Roller
835304455655 Frigidaire Refrigerator Rivet
84*242036801 Frigidaire Refrigerator Plastic Clip
84241830905 Frigidaire Lower Drain Tube
85#5304530251 Frigidaire Tube Assembly
89215346903 Frigidaire Tube-Process
89*5304526071 Frigidaire Refrigerator Connector
