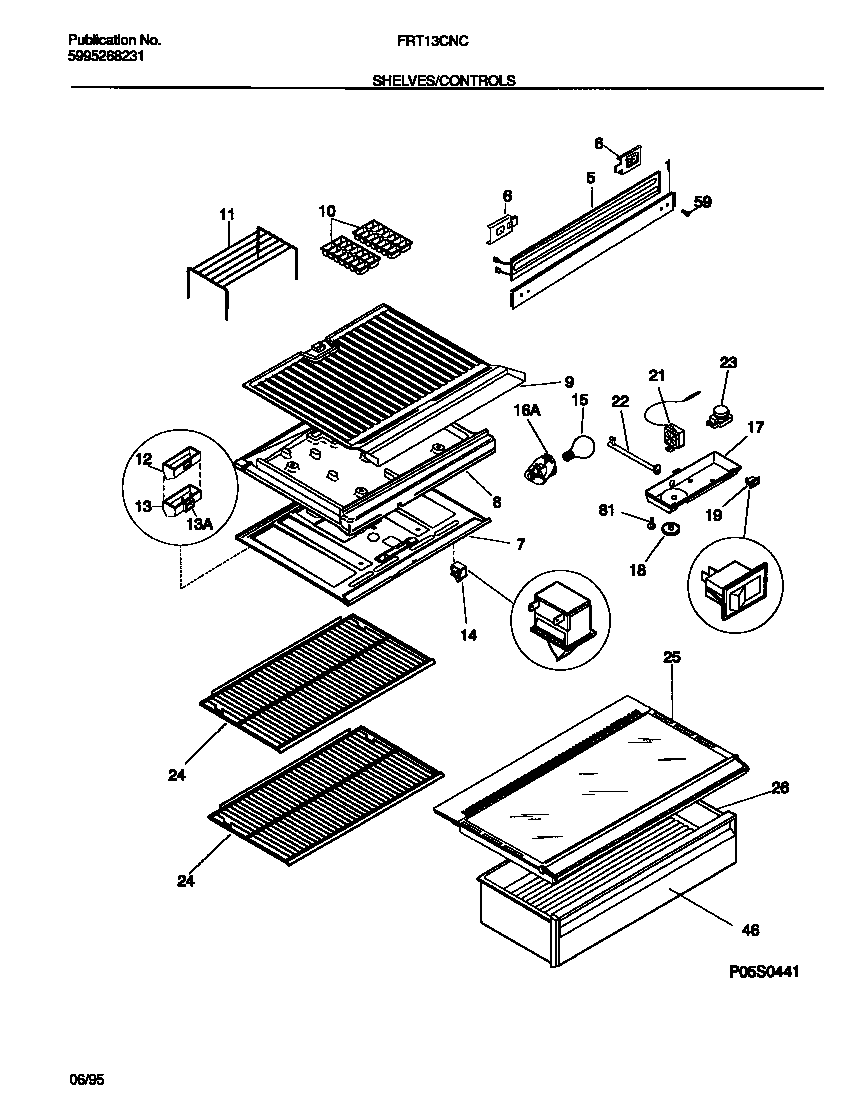

FRT13CNCD0 04 – SHELVES/CONTROLSadmin2025-04-26T08:36:39+00:00FRT13CNCD0 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| 1 | WCI 218430711 |
| 5 | WCI 218271401 |
| 6 | WCI 218279800 |
| 7B | WCI 5303001380 |
| 7A | WCI 5303270919 |
| 8B | 3205266 Frigidaire Refrigerator Edge Protector |
| 8A | WCI 5303270921 |
| 8C | HARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 9 | BOTTOM PANEL-FRZR |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | SHELF-FREEZER, ``TABLE TYPE`` |
| 12B | 5303001449 Frigidaire Refrigerator Seal |
| 12A | DEFLECTRO, AIR, W/SEAL |
| 13 | WCI 5303001448 |
| 13A | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17A | WCI 5303307349 |
| 17B | NUT, ANCHOR (NI) |
| 18 | WCI 5303307352 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21A | WCI 5303302297 |
| 21B | WCI 5303001260 |
| 22 | HOUSING-TEMP SENSOR, PLASTIC |
| 23B | 5304455649 Frigidaire Refrigerator Screw |
| 23A | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 24 | SHELF-SLIDING, WIRE, REFR SECTION |
| 25 | COVER-CRISPER PAN |
| 26 | PAN-CRISPER, FULL-WIDTH |
| 46 | WCI 5303310336 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
