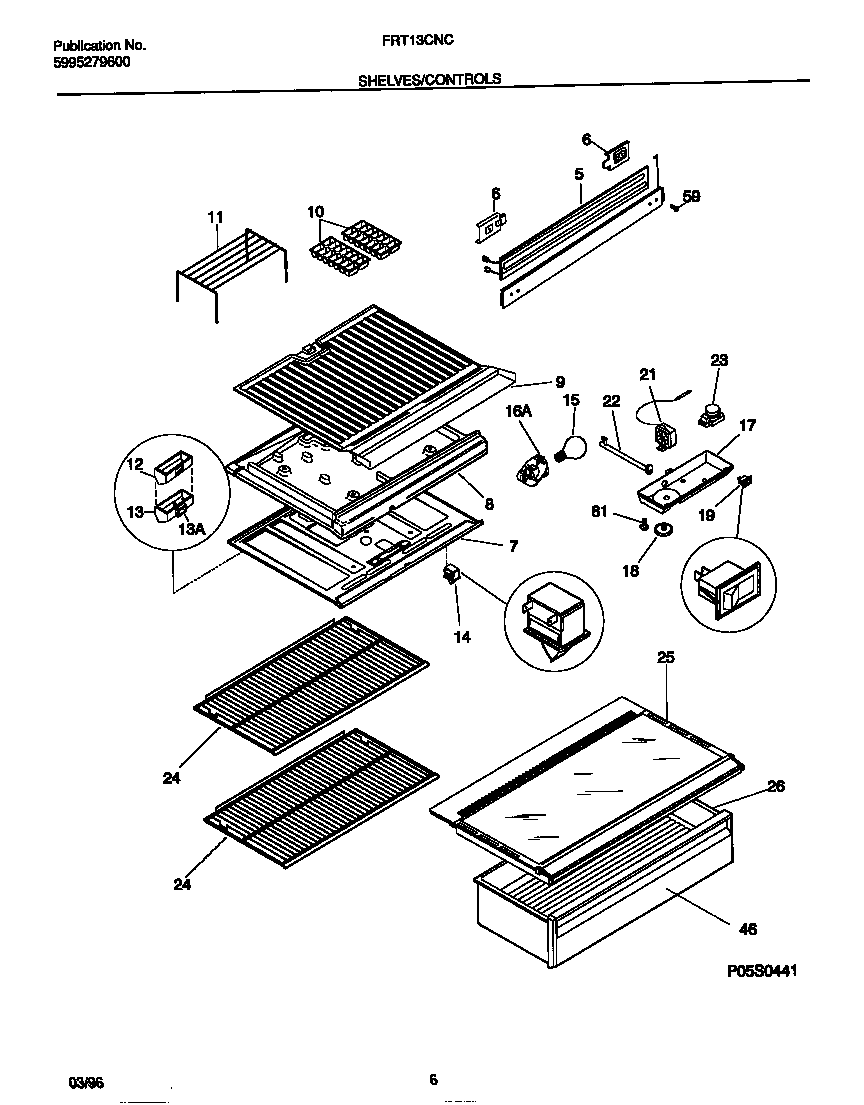

FRT13CNCD1 04 – SHELVES/CONTROLS

FRT13CNCD1 04 – SHELVES/CONTROLS

Written by

in

FRT13CNCD1 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218430711
5WCI 218271401
6WCI 218279800
7BWCI 5303001380
7AWCI 218597300
8AWCI 5303270921
8CHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12AWCI 218630800
12B5303001449 Frigidaire Refrigerator Seal
13WCI 218631001
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303307349
18WCI 5303307352
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303018894
21BWCI 5303001260
22TUBE
22HOUSING-TEMP SENSOR, PLASTIC
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46WCI 5303310336
815304455650 Frigidaire Refrigerator Screw
