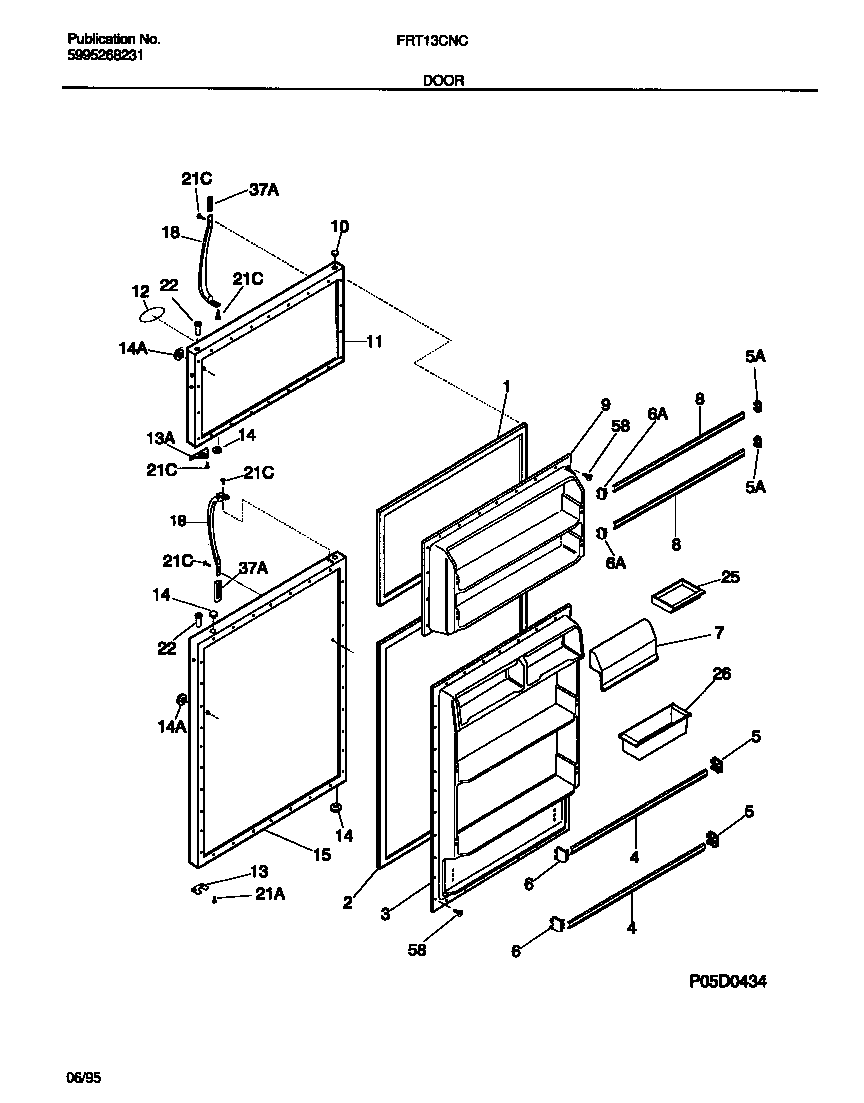

FRT13CNCW0 02 – DOOR

FRT13CNCW0 02 – DOOR

Written by

in

FRT13CNCW0 02 – DOOR

Products

PositionProduct
*20680INSULATION
1GASKET-FRZR DOOR, MAGNETIC, WHITE
2GASKET-REFR DOOR, WHITE, MAGNETIC
3WCI 5303274585
4215516220 Frigidaire Refrigerator Door Rack
55303325990 Frigidaire Refrigerator Door Bar End Cap
5AWCI 5303205649
65303325991 Frigidaire Refrigerator Door Bar Endcap
6AWCI 5303204840
7WCI 5303310334
9WCI 5303274588
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917479
12LABEL-NAMEPLATE,WHITE
12WCI 218364001
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13AWCI 218249001
13WCI 5308000255
14A240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917646
18WCI 218363401
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
255308000716 Frigidaire Refrigerator Dish
26WCI 3204522
37AWCI 215870607
585304455651 Frigidaire Refrigerator Screw
