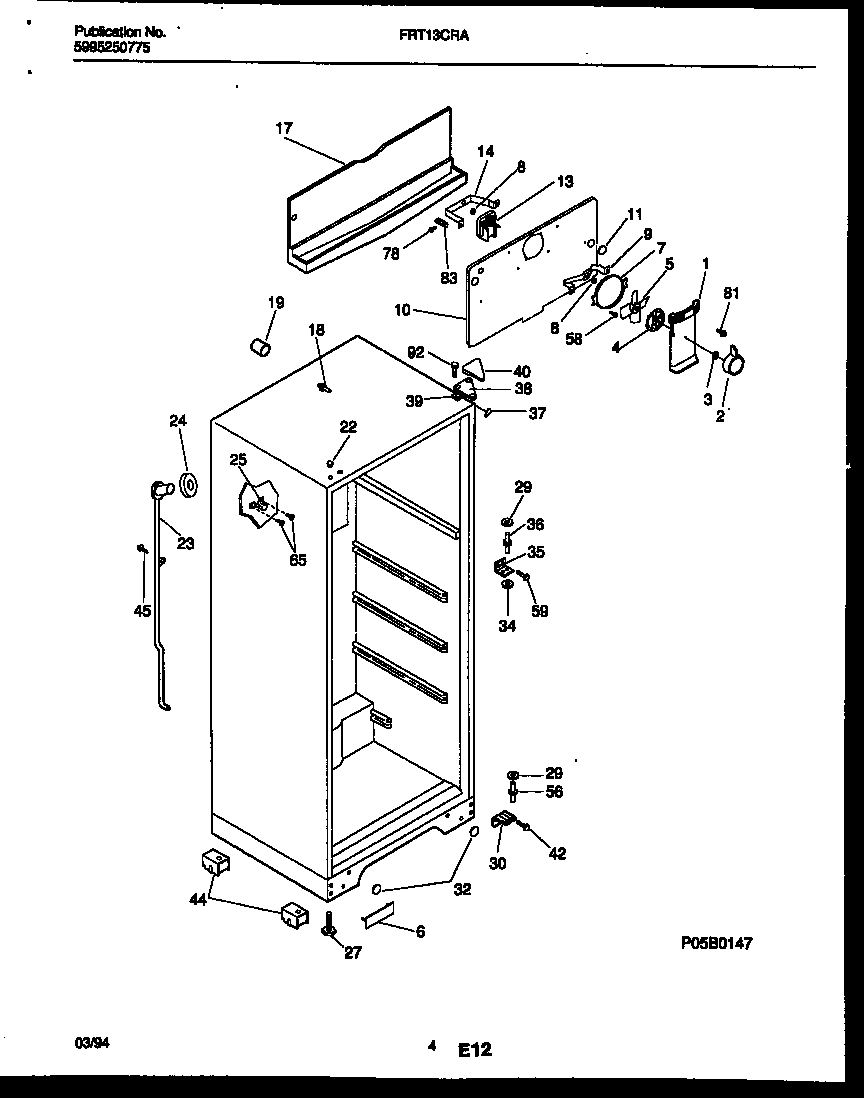

FRT13CRAZ0 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303301545
2	WCI 5303296360
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 5303270917
11	5303208309 Frigidaire Refrigerator Plug Hole
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 3206146
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	TUBE-DRAIN, W/SEAL RING
24	WCI 5303207353
25	WCI 5308000056
27	SCREW-LEVELING, (2)
29	WASHER, .34 X .62 X .05, NYLON
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
30	WCI 3206136
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206101
42	241710601 Frigidaire Refrigerator Screw
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	WCI 5308012258
65	WCI 5303001361
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
