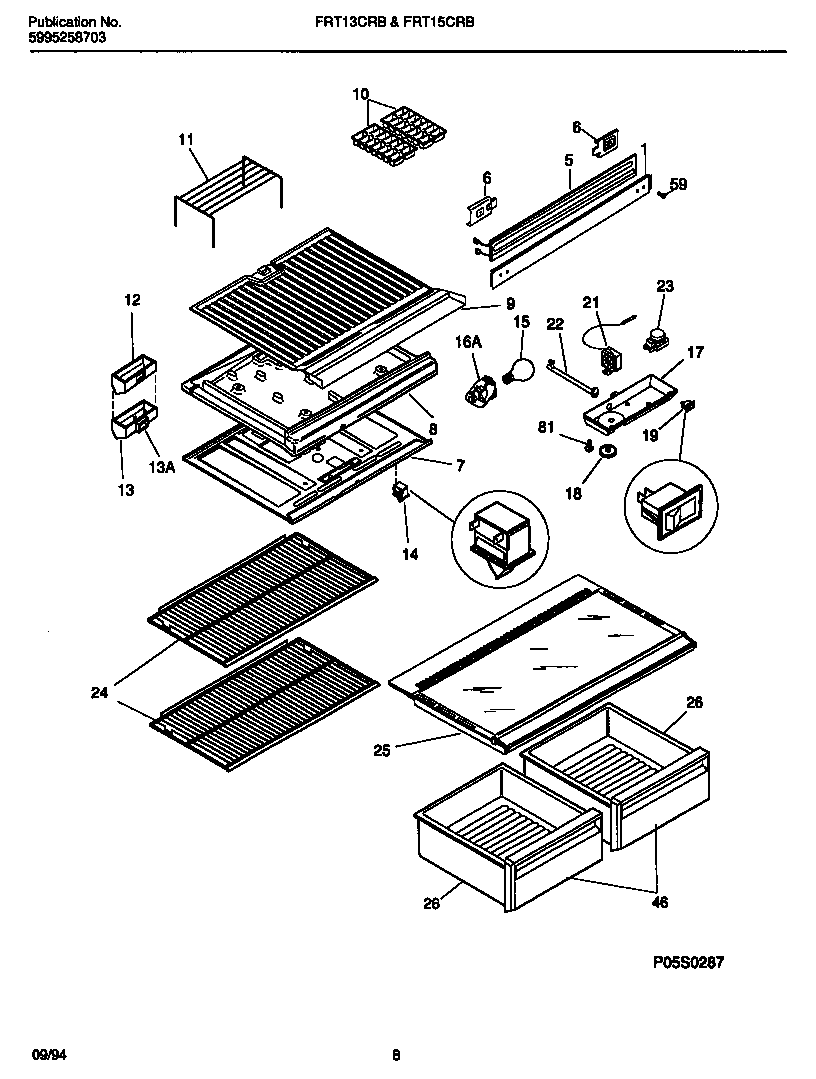

FRT13CRBW1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT13CRBW1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT13CRBW1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218222101
5WCI 218271401
6WCI 218279800
7WCI 5303270919
7AWCI 5303001380
8AHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8WCI 5303270921
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21WCI 530332297
21AWCI 5303001260
22HOUSING-TEMP SENSOR, PLASTIC
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46WCI 5303304705
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
