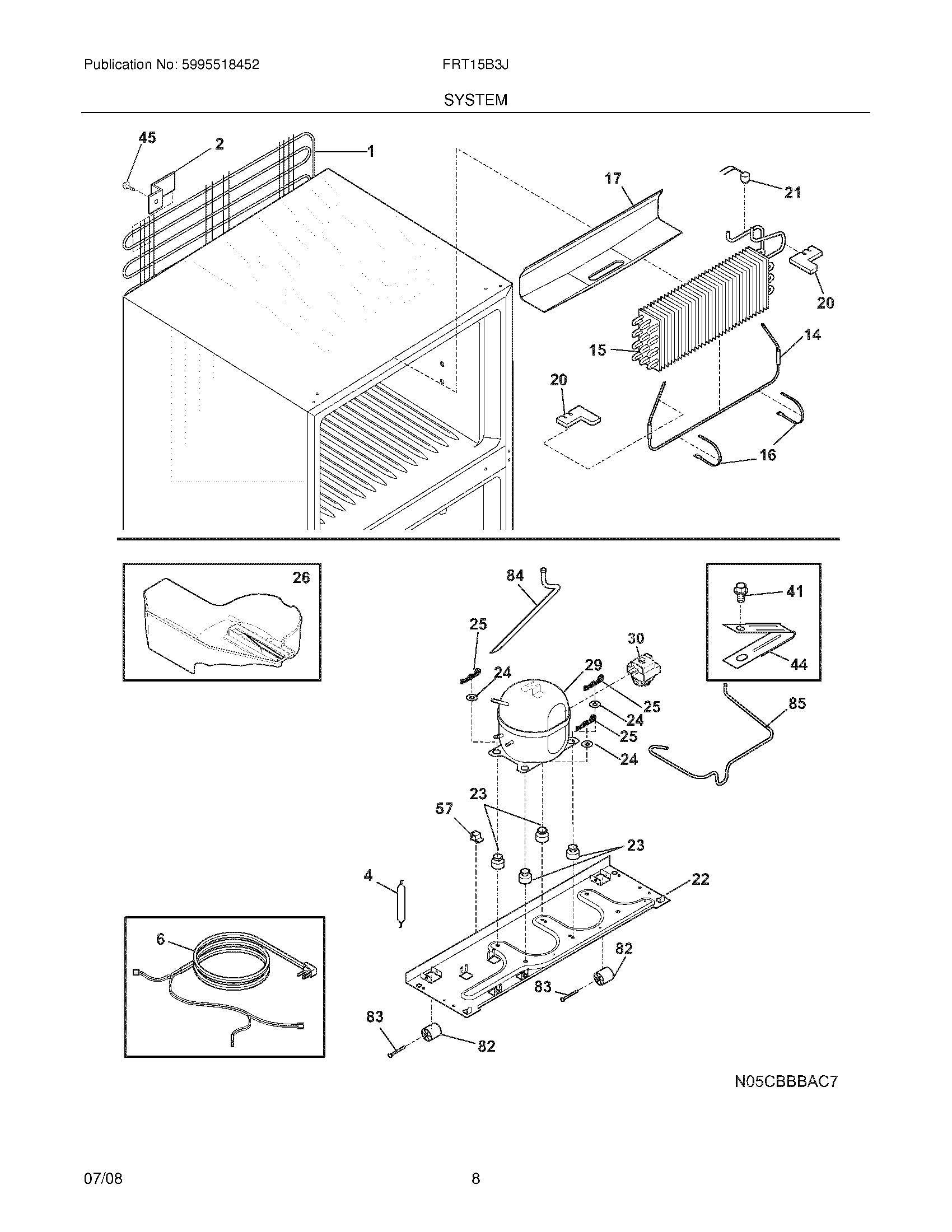

FRT15B3JW1 09 – SYSTEM

Products

Position	Product
NI	240405201 Frigidaire Refrigerator Grommet
NI	SPACER-COND TUBE,BLACK
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	5303307896 Frigidaire Refrigerator Thermal Sealant Mastic
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	WCI 5303918234
NI	WCI 5304406721
NI	218252201 Frigidaire Refrigerator Screw
NI	241500305 Frigidaire Refrigerator Screw
1	WCI 241927301
2	BRACKET, MOUNTIN, CONDENSER, (4)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 241678801
14	242044007 Frigidaire Refrigerator Defrost Heater
15	5303918275 Frigidaire Refrigerator Evaporator Kit P1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801302 Frigidaire Refrigerator Trough-Drain
20	241551902 Frigidaire Refrigerator Insulation Block
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	WCI 240598501
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	5304505700 Frigidaire Relay Combo Kit
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	5304455650 Frigidaire Refrigerator Screw
57	240542601 Frigidaire Clip-WIRING Harness
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	WCI 241505701
85	WCI 241879801
