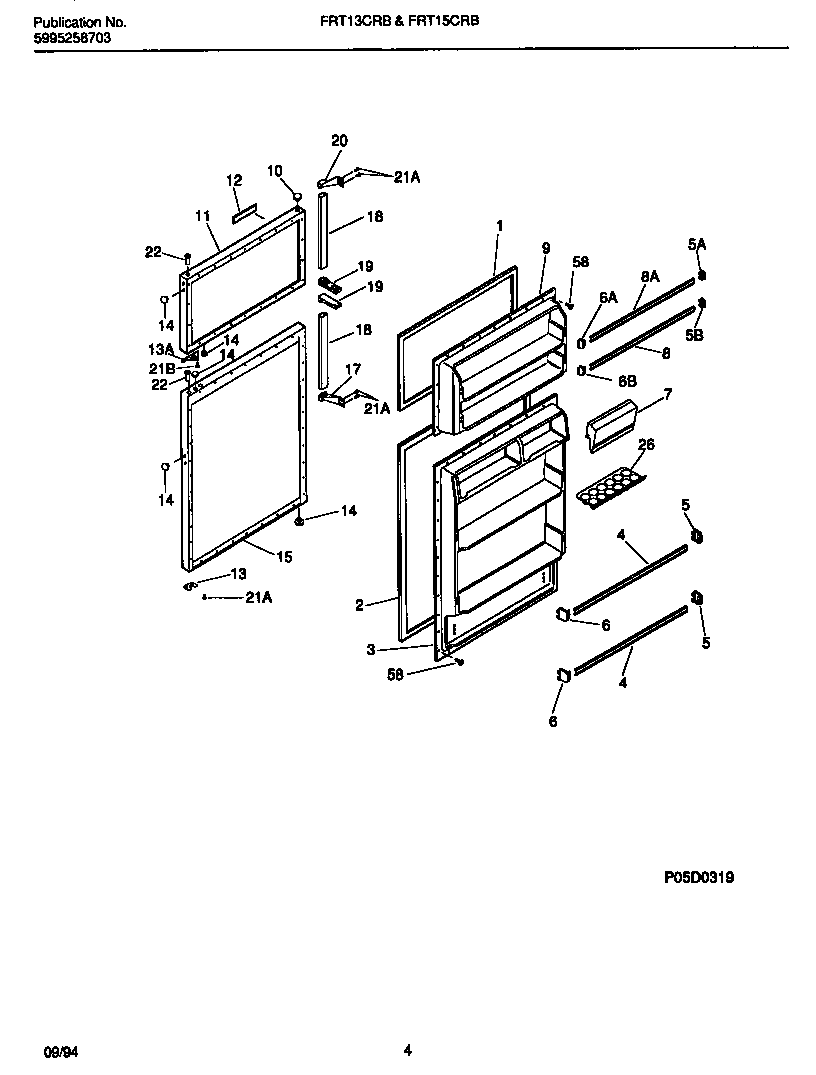

FRT15CRBD1 03 – DOOR SECTION

FRT15CRBD1 03 – DOOR SECTION

Written by

in

FRT15CRBD1 03 – DOOR SECTION

Products

PositionProduct
*14885INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 5303281227
4215366002 Frigidaire Refrigerator Door Wide Rack
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7DOOR-DAIRY
8ARACK-DOOR, 22.59“ X 1.12“
9WCI 5303276517
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917458
12WCI 215008602
13AWCI 218249002
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917454
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21B218252201 Frigidaire Refrigerator Screw
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
