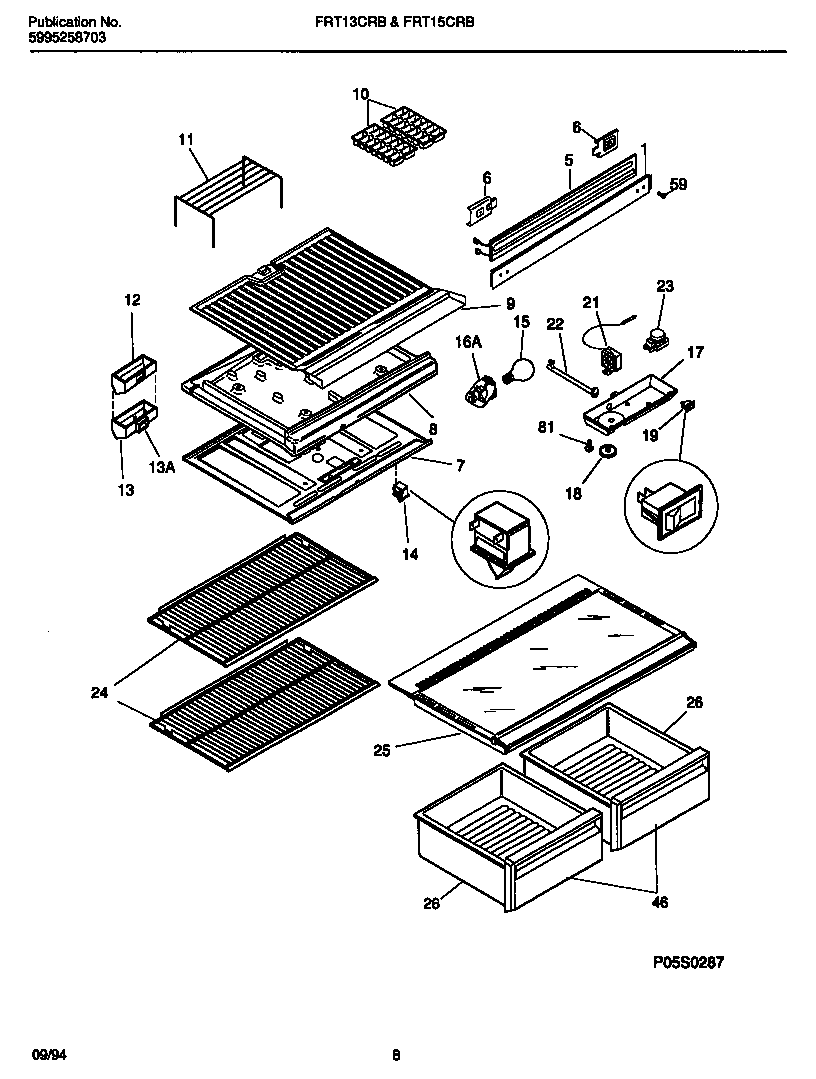

FRT15CRBD1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

FRT15CRBD1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

FRT15CRBD1 05 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218222111
5WCI 218271401
6WCI 218279800
7AWCI 5303001380
7WCI 3206128
8WCI 3206131
8B3205266 Frigidaire Refrigerator Edge Protector
8AHARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
9WCI 3206132
10215667501 Frigidaire Refrigerator Ice Tray Primary
11SHELF-FREEZER, “TABLE TYPE“
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303299980
17ANUT, ANCHOR (NI)
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 530332297
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303283113
26PAN-CRISPER
46FRONT, CRISPER PAN
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
