FRT15CRCD0 02 – DOOR

FRT15CRCD0 02 – DOOR

Written by

in

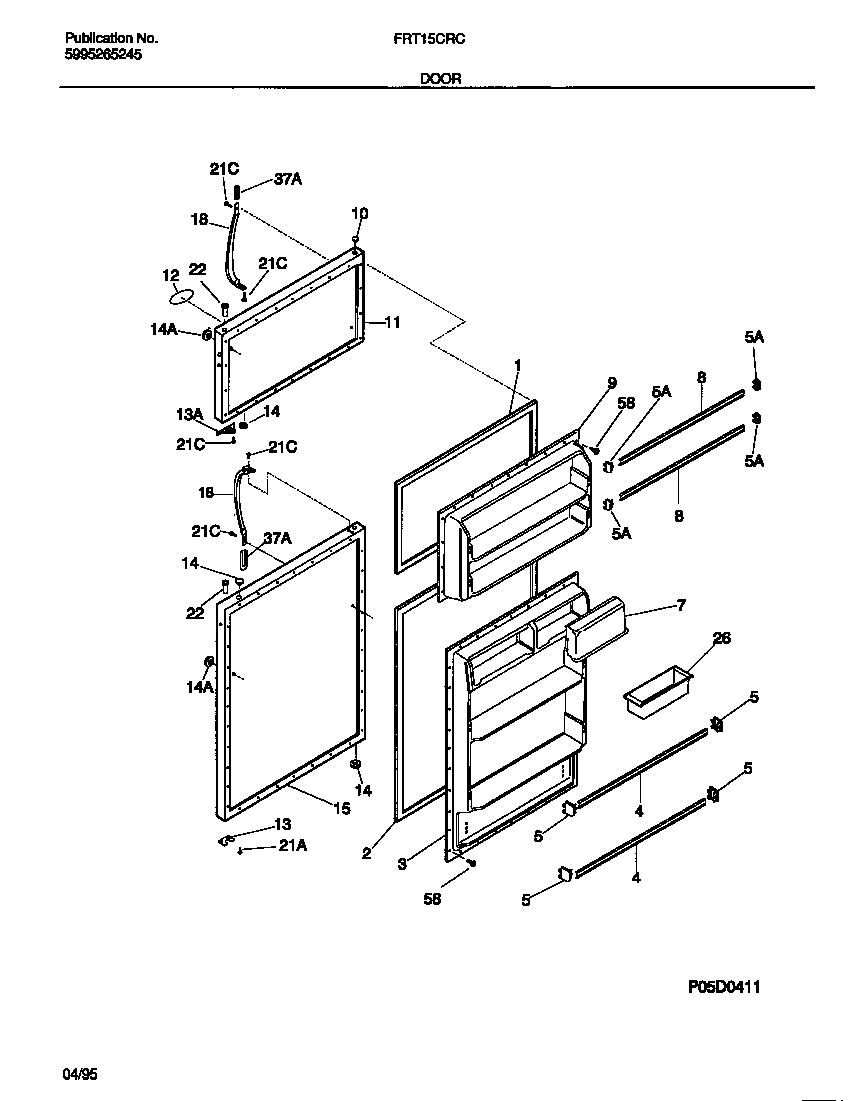

FRT15CRCD0 02 – DOOR

Products

PositionProduct
*13880INSULATION
1WCI 215608901
2218730603 Frigidaire Door Gasket
3WCI 218359001
4215516220 Frigidaire Refrigerator Door Rack
5218758602 Frigidaire Refrigerator Door Rack Support
5WCI 215251401
7WCI 218287901
9WCI 218358801
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917599
12LABEL-NAMEPLATE,ALMOND
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
12WCI 218364002
13DOOR STOP, REFR SECTION
13WCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
14PLUG-BUTTON, ALMOND, REFR DOOR FRONT, UPPER
15WCI 5303917597
18WCI 218363402
21218252201 Frigidaire Refrigerator Screw
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
26WCI 3204522
37WCI 215870608
585304455651 Frigidaire Refrigerator Screw
