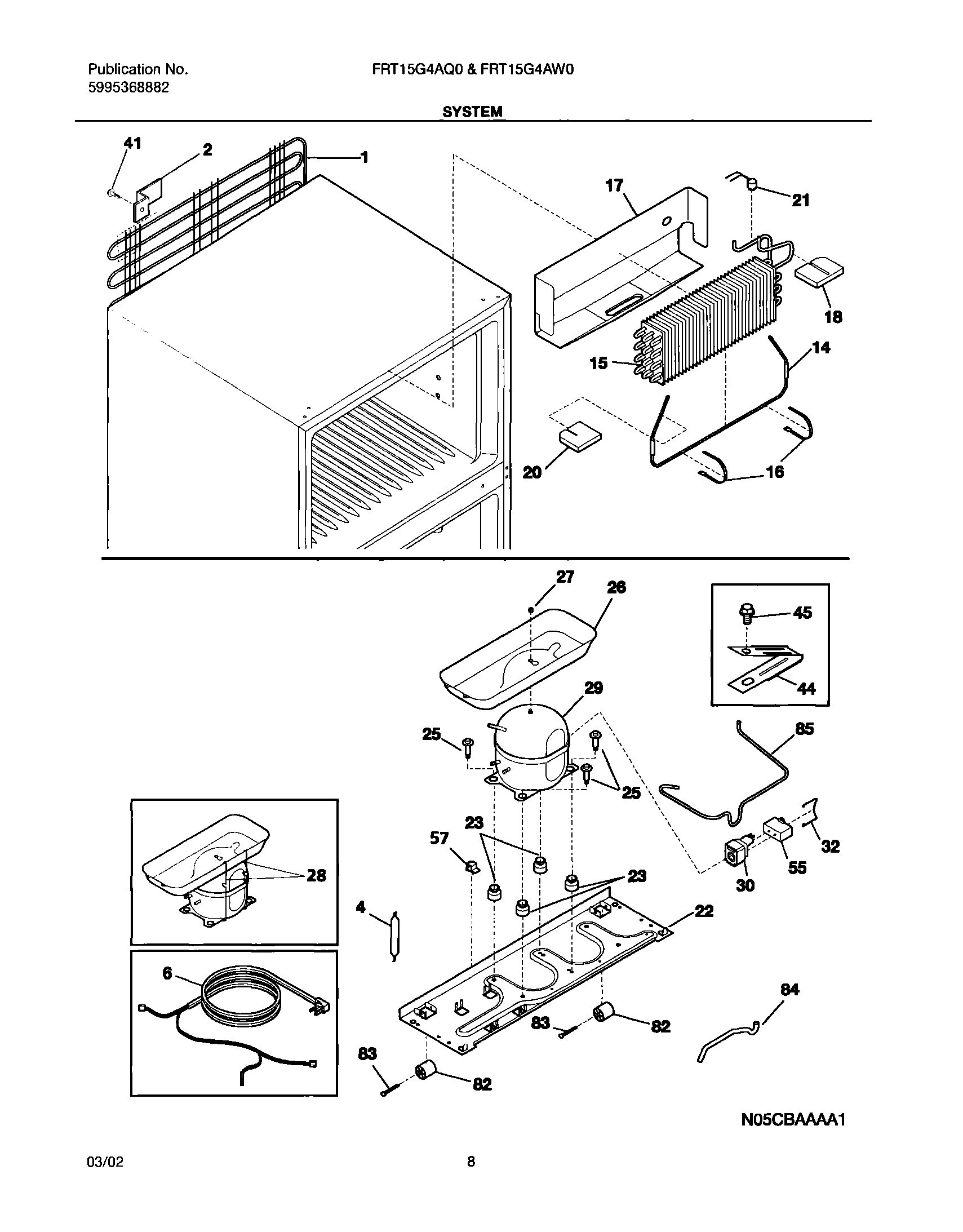

FRT15G4AQ0 09 – SYSTEM

FRT15G4AQ0 09 – SYSTEM

Written by

in

FRT15G4AQ0 09 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NIWCI 5303918234
NI218843801 Frigidaire Refrigerator Screw
NISPACER-COND TUBE,BLACK
NI240396801 Frigidaire Refrigerator Tube Clamp
1WCI 240406403
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 240385401
6240388701 Frigidaire Refrigerator Wiring Harness
6WCI 240375401
145303918203 Frigidaire Defrost Heater Kit
155303918275 Frigidaire Refrigerator Evaporator Kit P1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
18Insulation Block,RH
20WCI 240362401
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665605 Frigidaire Refrigerator Base Compressor
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26WCI 240346901
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 218721113
32218740800 Frigidaire Refrigerator Clamp
415304455650 Frigidaire Refrigerator Screw
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218897001
555304464438 Frigidaire Compressor Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84WCI 240367101
85WCI 240346202
