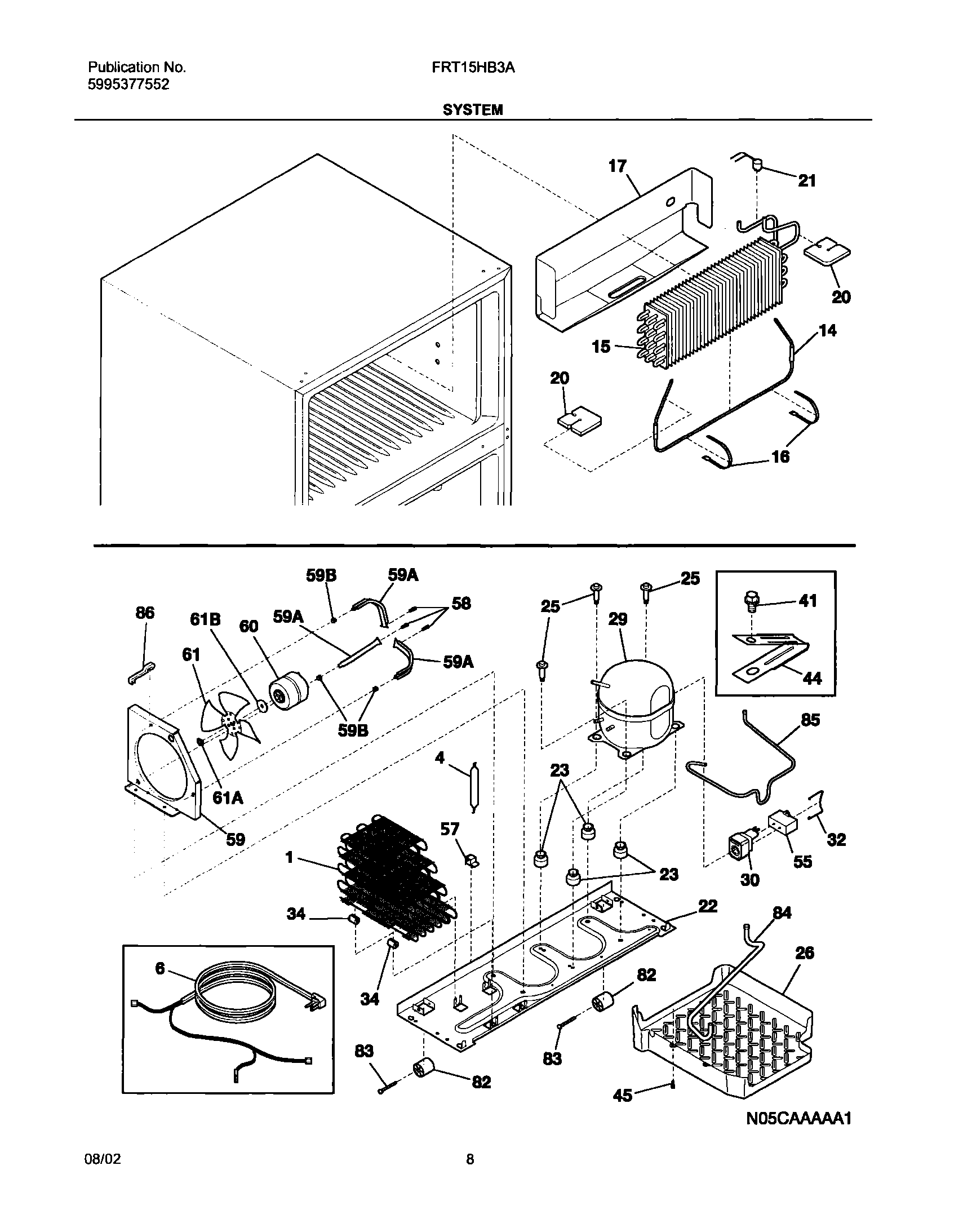

FRT15HB3AQ2 09 – SYSTEM

FRT15HB3AQ2 09 – SYSTEM

Written by

in

FRT15HB3AQ2 09 – SYSTEM

Products

PositionProduct
NIWCI 240375501
NI5308000039 Frigidaire Refrigerator Screw
NIWCI 5303918222
NIWCI 240397201
NI218843801 Frigidaire Refrigerator Screw
NIWCI 240524701
NI5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NI240396801 Frigidaire Refrigerator Tube Clamp
NI218252201 Frigidaire Refrigerator Screw
15304472169 Frigidaire Refrigerator Condenser Kit
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 240496101
145303918203 Frigidaire Defrost Heater Kit
155303918275 Frigidaire Refrigerator Evaporator Kit P1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17241801301 Frigidaire Refrigerator Drain Trough
20WCI 240518401
215303918202 Frigidaire Refrigerator Defrost Thermostat
22241665605 Frigidaire Refrigerator Base Compressor
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26241920605 Frigidaire Refrigerator Defrost Pan
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
305304491941 Frigidaire Refrigerator Starter Relay and Plug Kit
32218973501 Frigidaire Refrigerator Clamp
34240405201 Frigidaire Refrigerator Grommet
41WCI 218897001
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55218909912 Frigidaire Capacitor Run
57240542601 Frigidaire Clip-WIRING Harness
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
59WCI 240315501
60CONDENSER FAN MOTOR KIT
61WCI 240315401
61BWCI 218956801
61AWCI 218956700
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84240500801 Frigidaire Refrigerator P-1 Tube-Drain
85WCI 240547801
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
