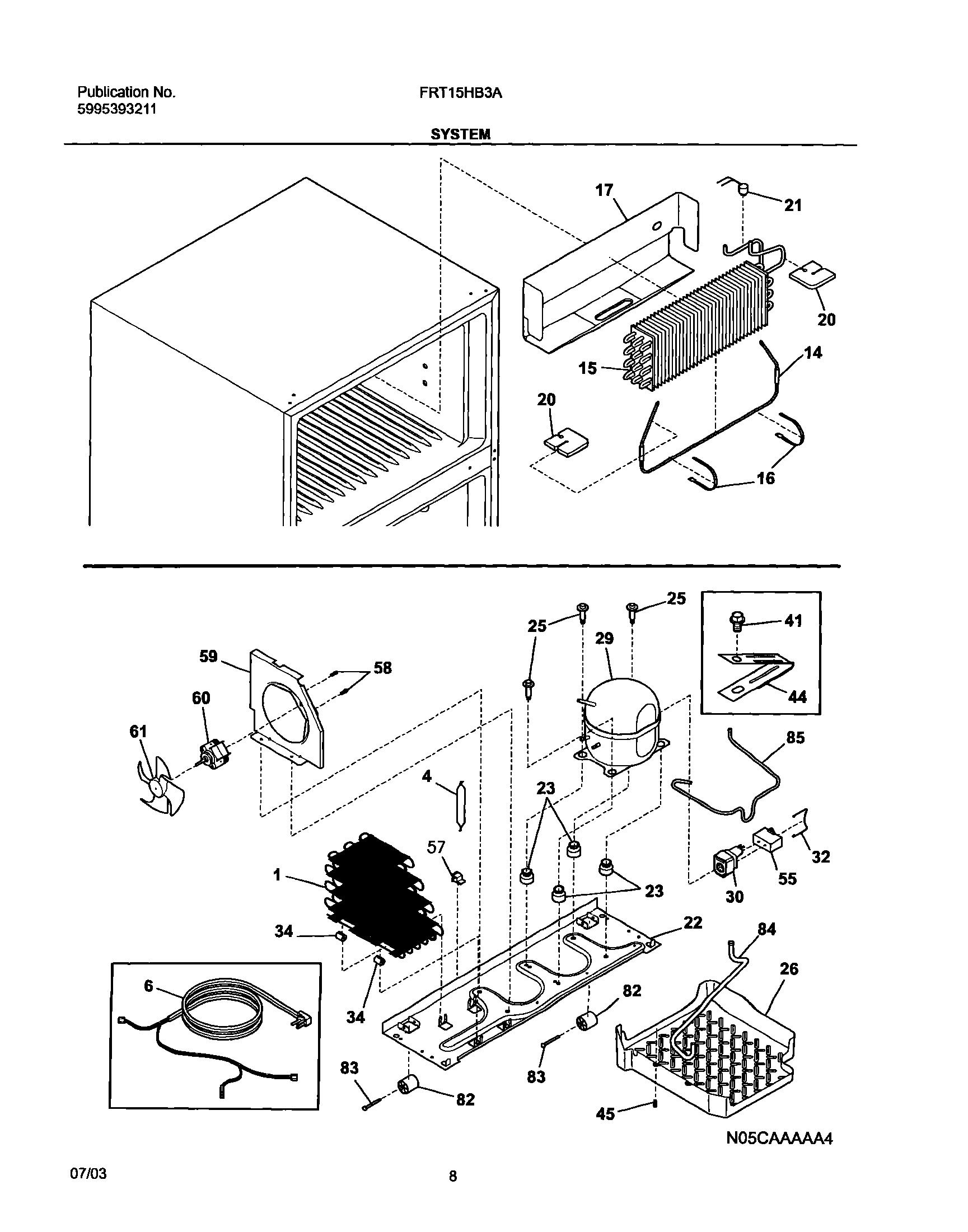

FRT15HB3AT5 09 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	240388701 Frigidaire Refrigerator Wiring Harness
NI	WCI 5303918222
NI	240396801 Frigidaire Refrigerator Tube Clamp
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5303918263 Frigidaire Refrigerator Primary Heat Exchanger Kit (O/S1)
NI	WCI 240524701
1	5304472169 Frigidaire Refrigerator Condenser Kit
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	WCI 240496101
14	5303918203 Frigidaire Defrost Heater Kit
15	5303918275 Frigidaire Refrigerator Evaporator Kit P1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	241801301 Frigidaire Refrigerator Drain Trough
20	WCI 240518402
21	5303918202 Frigidaire Refrigerator Defrost Thermostat
22	241665605 Frigidaire Refrigerator Base Compressor
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-compressor mtg,hex washer head ,
26	241920605 Frigidaire Refrigerator Defrost Pan
29	5304507765 Frigidaire Refrigerator Compressor Kit
30	5304491942 Frigidaire Refrigerator Starter Kit
32	WCI 240553401
34	240405201 Frigidaire Refrigerator Grommet
41	241941202 Frigidaire Refrigerator Screw-#8-18 X 3/8 F
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	218909912 Frigidaire Capacitor Run
57	240542601 Frigidaire Clip-WIRING Harness
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5304430246
60	CONDENSER FAN MOTOR KIT
61	240524102 Frigidaire Refrigerator Condenser Fan Blade
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	240500801 Frigidaire Refrigerator P-1 Tube-Drain
85	241856901 Frigidaire Refrigerator Tube-Connector
